xToolDiode laser engraver

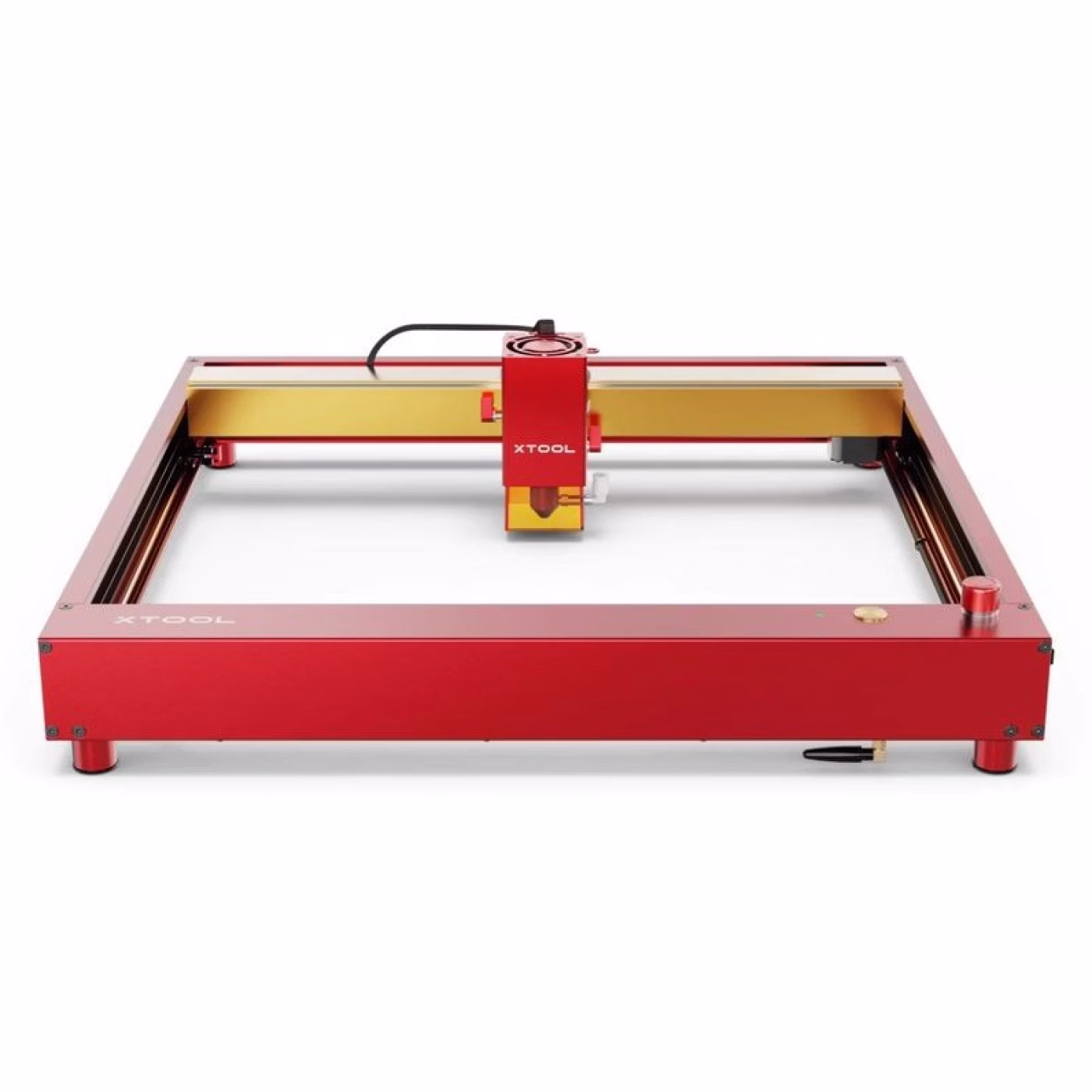

xTool D1 Pro 2.0 10W
xTool D1 Pro 2.0 10W is a diode laser engraver released in 2022. Key specs: laser sources Blue diode (≈455 nm), laser output power 10 W, work area 430 × 400 mm, max engraving / travel speed 400 mm/s.
8.0Score
Power & cutting4.9
Speed6.1
Precision6.2
Work area8.1
price rangeUS$600–740
- Year
- 2022
- Brand
xTool- Popularity
- #352 of 406
Blue diode (≈455 nm)Laser sources
10 WLaser output power
430 × 400 mmWork area
400 mm/sMax engraving / travel speed
0.08 mmLaser spot size
10 mmMax cutting depth – wood / plywood (one pass)
Spec guide
How it ranks among diode laser engravers
Laser output power · 10 WBottom 30%
Max engraving / travel speed · 400 mm/sBottom 38%
Laser spot size · 0.08 mmTop 40%
Max cutting depth – wood / plywood (one pass) · 10 mmBottom 30%
Compared with every model of this kind in the catalog.
compared with other diode laser engravers
Why is D1 Pro 2.0 10W a good choice?
Work area (surface): 1,720 cm²better than 86% of diode laser engravers
Specifications
Full specifications
Laser power
- Laser output power
- 10 W
Work area
- Work area
- 430 × 400 mm
- Work area width (X)
- 430 mm
- Work area depth (Y)
- 400 mm
- Work area (surface)
- 1,720 cm²
- Max workpiece height
- 51 mm
Speed & cutting
- Max engraving / travel speed
- 400 mm/s
- Max cutting depth – wood / plywood (one pass)
- 10 mm
Precision
- Laser spot size
- 0.08 mm
Connectivity & software
- Connections
- USB, Wi-Fi, Ethernet, SD / USB drive
- Wi-Fi
- Yes
- USB
- Yes
- Ethernet (LAN)
- Yes
- SD / TF card
- Yes
- LightBurn compatible
- Yes
- File formats
- SVG, DXF, JPG, PNG, BMP
Size & power
- Width
- 600 mm
- Depth
- 590 mm
- Height
- 150 mm
- Weight
- 5.5 kg
- Rated power consumption
- 60 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
