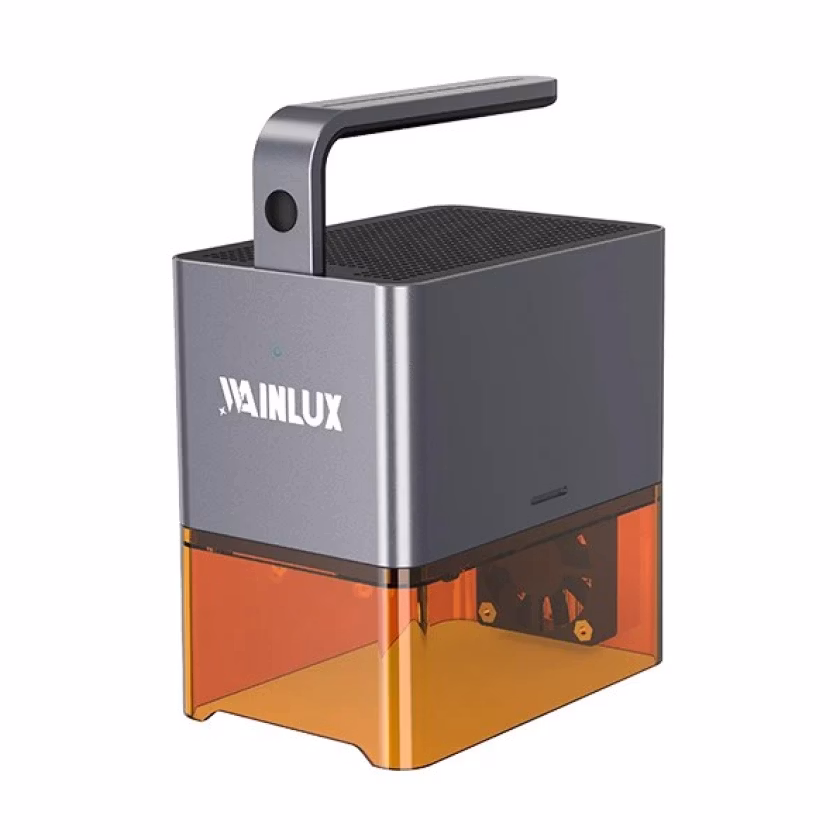

Wainlux Z4 Mini vs xTool D1 Pro 2.0 10W
What Z4 Mini does better (2) and where D1 Pro 2.0 10W wins (0) — every spec side by side.
vs
8.0Speed6.1
9.1Precision6.2
Why is Z4 Mini better than D1 Pro 2.0 10W?
- Laser spot size0.05 mm vs 0.08 mm+60%
- Max engraving / travel speed600 mm/s vs 400 mm/s+50%
Why is D1 Pro 2.0 10W better than Z4 Mini?
D1 Pro 2.0 10W has no measurable advantages in this pair.
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | — |
| Wavelength | — | 455 nm |
| Laser power | ||
| Laser output power | — | 10 W |
| Work area | ||
| Work area | — | 430 × 400 mm |
| Work area width (X) | — | 430 mm |
| Work area depth (Y) | — | 400 mm |
| Work area (surface) | — | 1,720 cm² |
| Max workpiece height | — | 51 mm |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | 600 mm/s | 400 mm/s |
| Max cutting depth – wood / plywood (one pass) | — | 10 mm |
| Precision | ||
| Laser spot size | 0.05 mm | 0.08 mm |
| Safety | ||
| Enclosed (fully covered) | No | — |
| Flame / fire detection | No | — |
| Features | ||
| Air assist | No | — |
| Built-in camera | No | — |
| Autofocus / auto height | No | — |
| Rotary attachment support | Yes | — |
| Offline engraving (no computer) | Yes | — |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi, Ethernet, SD / USB drive |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| Ethernet (LAN) | — | Yes |
| SD / TF card | — | Yes |
| Compatible software | — | LightBurn, xTool Creative Space |
| LightBurn compatible | — | Yes |
| File formats | — | SVG, DXF, JPG, PNG, BMP |
| Size & power | ||
| Width | — | 600 mm |
| Depth | — | 590 mm |
| Height | — | 150 mm |
| Weight | — | 5.5 kg |
| Rated power consumption | — | 60 W |
