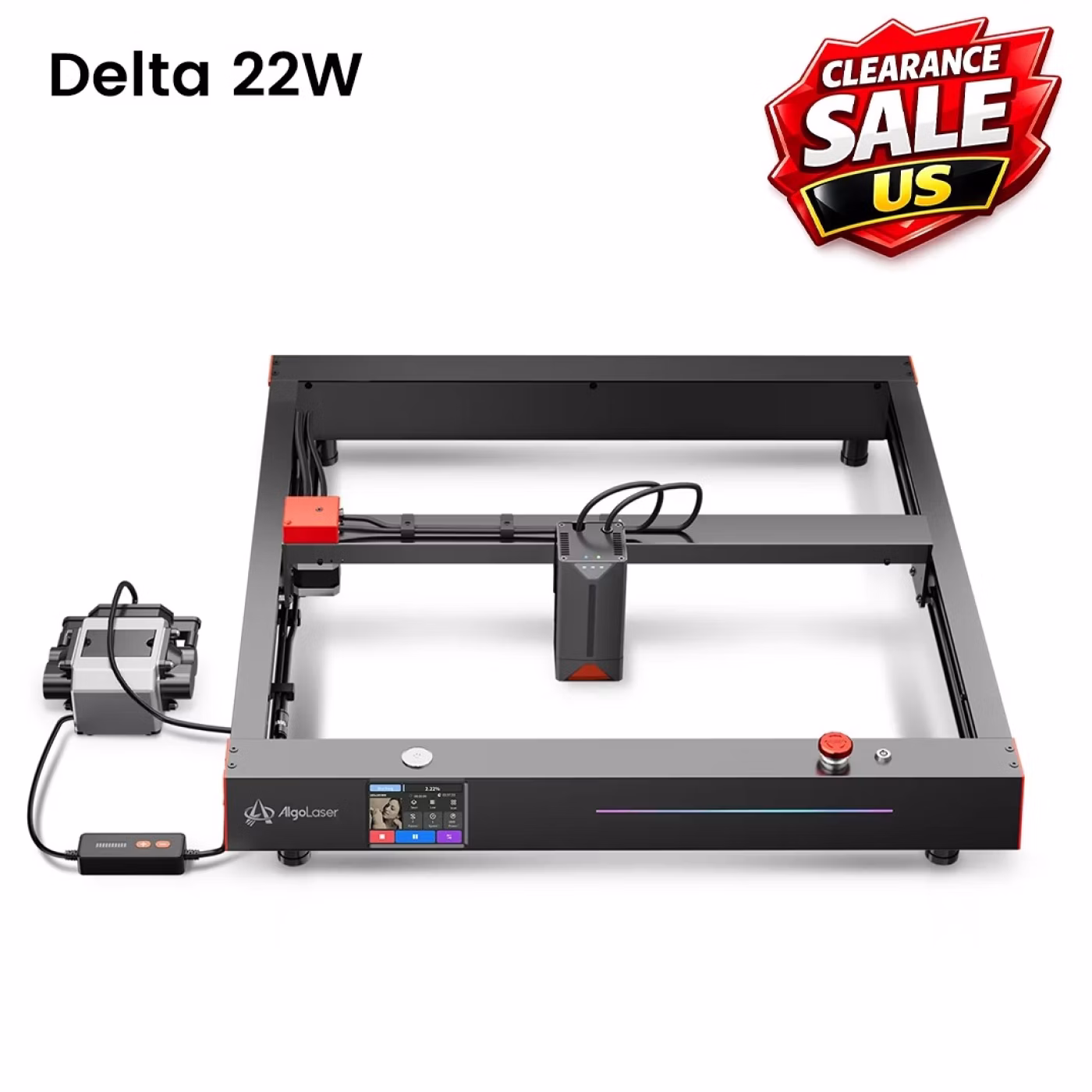

Algolaser Delta 22W
Algolaser Delta 22W is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 22 W, work area 425 × 415 mm, max engraving / travel speed 500 mm/s.
7.6Score
Power & cutting7.1
Speed6.9
Precision2.8
Work area8.8
Safety4.9
Features & ease of use9.4
price rangeUS$500–620
- Year
- 2023
- Brand
Algolaser- Popularity
- #297 of 406
Blue diode (≈455 nm)Laser sources
22 WLaser output power
425 × 415 mmWork area
500 mm/sMax engraving / travel speed
0.16 mmLaser spot size
10 mmMax cutting depth – wood / plywood (one pass)
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2023
Laser output power · 22 WTop 46%
Max engraving / travel speed · 500 mm/sBottom 40%
Laser spot size · 0.16 mmBottom 10%
Max cutting depth – wood / plywood (one pass) · 10 mmBottom 30%
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
compared with other diode laser engravers
Why is Delta 22W a good choice?
Work area (surface): 1,764 cm²better than 87% of diode laser engravers
Laser output power: 22 Wbetter than 78% of diode laser engravers
Weak points
Laser spot size: 0.16 mmworse than 88% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 450 nm
Laser power
- Laser output power
- 22 W
Work area
- Work area
- 425 × 415 mm
- Work area width (X)
- 425 mm
- Work area depth (Y)
- 415 mm
- Work area (surface)
- 1,764 cm²
- Work-area extension kit
- Yes
Speed & cutting
- Max engraving / travel speed
- 500 mm/s
- Max cutting depth – wood / plywood (one pass)
- 10 mm
Precision
- Laser spot size
- 0.16 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- No
- Built-in fume filter / purifier
- Yes
Features
- Air assist
- Yes
- Built-in camera
- Yes
- Autofocus / auto height
- Yes
- Rotary attachment support
- Yes
- Touchscreen / control panel
- Yes
- Offline engraving (no computer)
- Yes
Connectivity & software
- Connections
- SD / USB drive
- Wi-Fi
- Yes
- USB
- Yes
- SD / TF card
- Yes
- LightBurn compatible
- Yes
Size & power
- Width
- 650 mm
- Depth
- 730 mm
- Height
- 240 mm
- Weight
- 7 kg
- Rated power consumption
- 144 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
