AtomStackDiode laser engraver

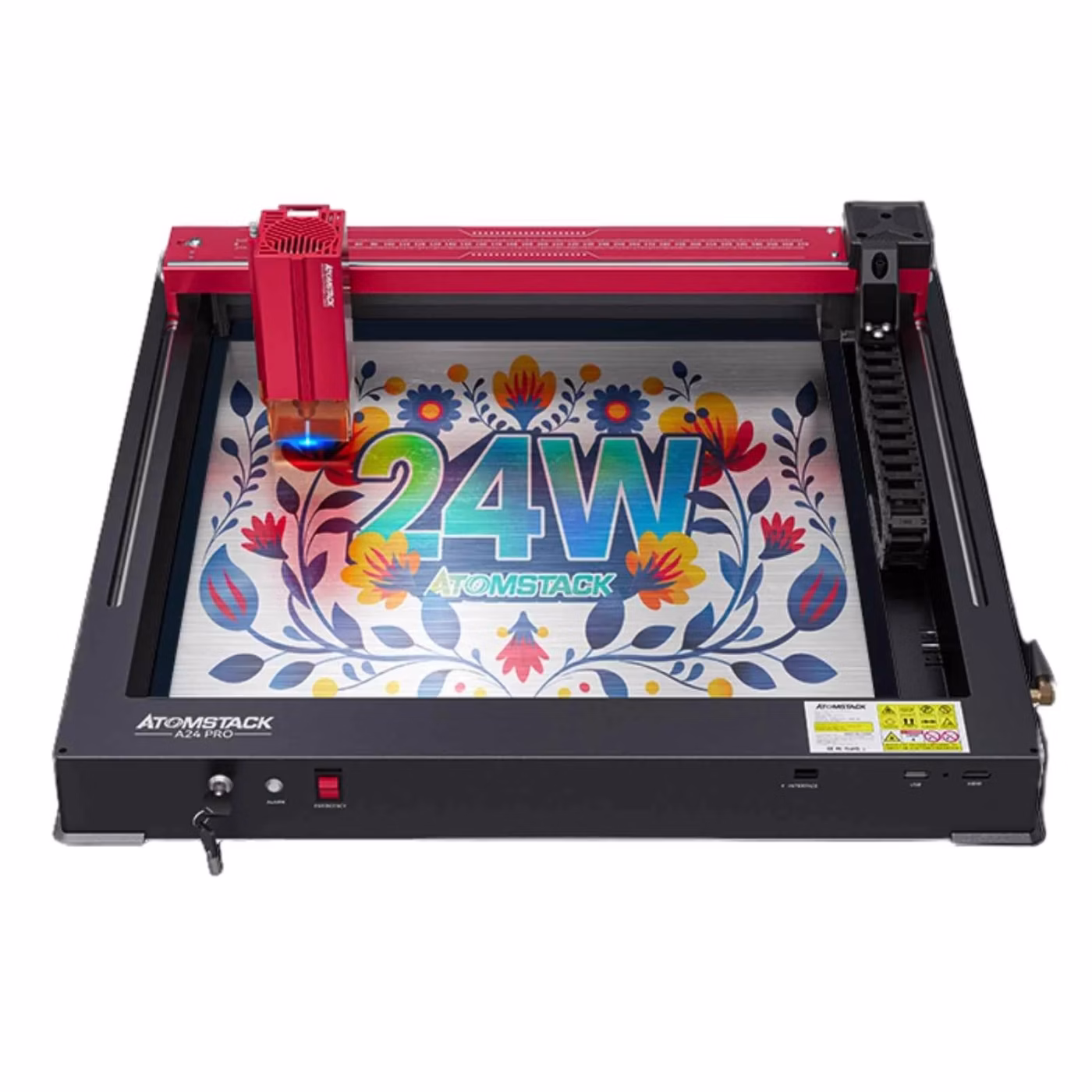

AtomStack A24 Pro
AtomStack A24 Pro is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 24 W, work area 360 × 280 mm, max cutting depth – wood / plywood (one pass) 17 mm.
7.7Score
Power & cutting8.1
Work area5.7
Safety7.7
Features & ease of use3.1
price rangeUS$410–510
- Year
- 2023
- Brand
AtomStack- Popularity
- #77 of 406
Blue diode (≈455 nm)Laser sources
24 WLaser output power
360 × 280 mmWork area
17 mmMax cutting depth – wood / plywood (one pass)
YesEnclosed (fully covered)
Class 1 (eye-safe, enclosed)Laser safety class
Spec guide
How it ranks among diode laser engravers of 2023
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
compared with other diode laser engravers
Why is A24 Pro a good choice?
Laser output power: 24 Wbetter than 80% of diode laser engravers
Max cutting depth – acrylic: 15 mmbetter than 86% of diode laser engravers
Specifications
Full specifications
Laser power
- Laser output power
- 24 W
Work area
- Work area
- 360 × 280 mm
- Work area width (X)
- 360 mm
- Work area depth (Y)
- 280 mm
- Work area (surface)
- 1,008 cm²
- Conveyor / roll feeder support
- Yes
Speed & cutting
- Max cutting depth – wood / plywood (one pass)
- 17 mm
- Max cutting depth – acrylic
- 15 mm
Safety
- Enclosed (fully covered)
- Yes
- Flame / fire detection
- No
- Tilt / movement sensor
- Yes
Features
- Air assist
- No
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
Size & power
- Weight
- 16 kg
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
