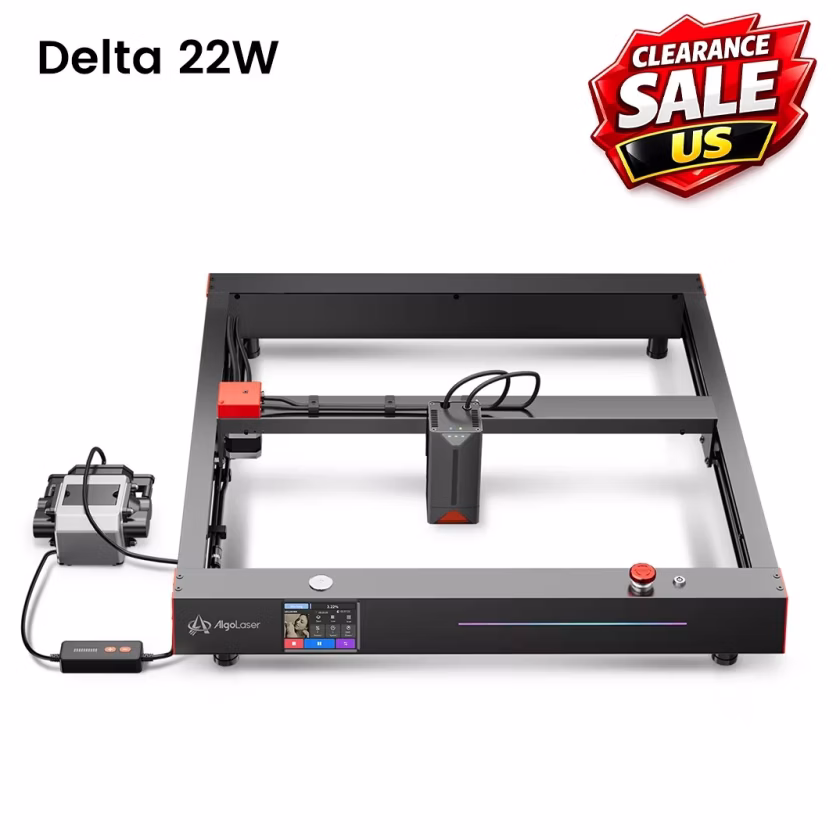

Algolaser Delta 22W vs AtomStack A24 Pro
What Delta 22W does better (7) and where A24 Pro wins (3) — every spec side by side.
Why is Delta 22W better than A24 Pro?
- Work area (surface)1,764 cm² vs 1,008 cm²+75%
- Air assistYes · A24 Pro: No
- Built-in cameraYes · A24 Pro: No
- Autofocus / auto heightYes · A24 Pro: No
- Weight7 kg vs 16 kg2.3×
- Work area depth (Y)415 mm vs 280 mm+48%
- Work area width (X)425 mm vs 360 mm+18%
Why is A24 Pro better than Delta 22W?
- Enclosed (fully covered)No · Delta 22W: Yes
- Max cutting depth – wood / plywood (one pass)10 mm vs 17 mm+70%
- Laser output power22 W vs 24 W+9%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 450 nm | — |
| Laser power | ||
| Laser output power | 22 W | 24 W |
| Work area | ||
| Work area | 425 × 415 mm | 360 × 280 mm |
| Work area width (X) | 425 mm | 360 mm |
| Work area depth (Y) | 415 mm | 280 mm |
| Work area (surface) | 1,764 cm² | 1,008 cm² |
| Conveyor / roll feeder support | — | Yes |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | 500 mm/s | — |
| Max cutting depth – wood / plywood (one pass) | 10 mm | 17 mm |
| Max cutting depth – acrylic | — | 15 mm |
| Precision | ||
| Laser spot size | 0.16 mm | — |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Laser safety class | — | Class 1 (eye-safe, enclosed) |
| Flame / fire detection | No | No |
| Tilt / movement sensor | — | Yes |
| Built-in fume filter / purifier | Yes | — |
| Features | ||
| Air assist | Yes | No |
| Built-in camera | Yes | No |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | Yes | Yes |
| Touchscreen / control panel | Yes | — |
| Offline engraving (no computer) | Yes | — |
| Connectivity & software | ||
| Connections | SD / USB drive | — |
| Wi-Fi | Yes | — |
| USB | Yes | — |
| SD / TF card | Yes | — |
| Compatible software | LightBurn, LaserGRBL | — |
| LightBurn compatible | Yes | — |
| Size & power | ||
| Width | 650 mm | — |
| Depth | 730 mm | — |
| Height | 240 mm | — |
| Weight | 7 kg | 16 kg |
| Rated power consumption | 144 W | — |
