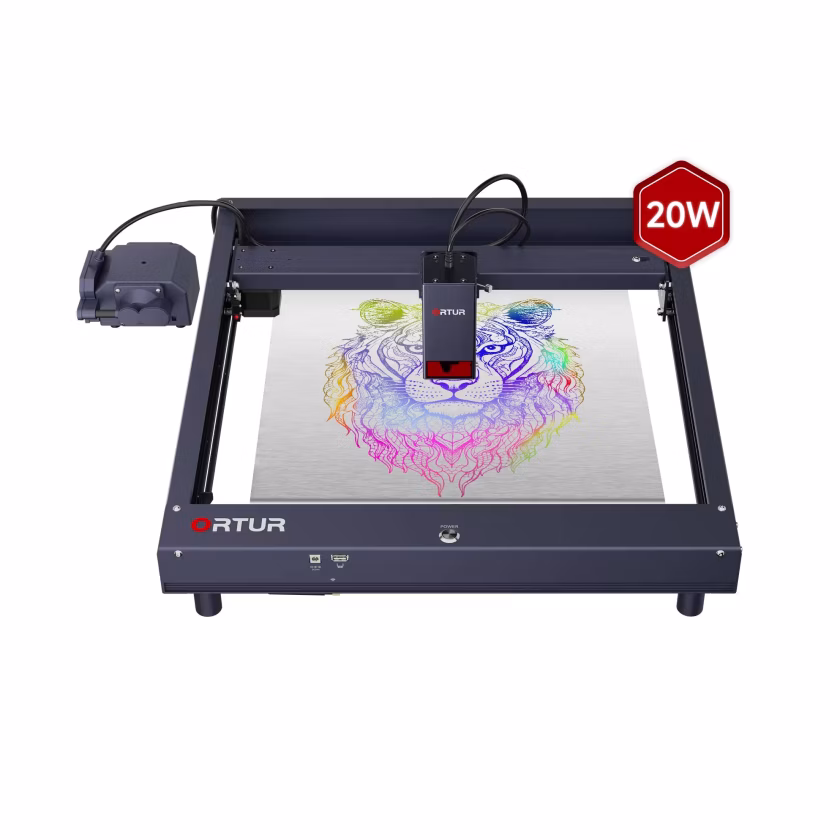

Algolaser Delta 22W vs Ortur H10 20W
What Delta 22W does better (8) and where H10 20W wins (2) — every spec side by side.
Why is Delta 22W better than H10 20W?
- Max engraving / travel speed500 mm/s vs 333 mm/s+50%
- Built-in cameraYes · H10 20W: No
- Autofocus / auto heightYes · H10 20W: No
- Work area (surface)1,764 cm² vs 1,600 cm²+10%
- Laser output power22 W vs 20 W+10%
- Wi-FiYes · H10 20W: No
- Work area width (X)425 mm vs 400 mm+6%
- Work area depth (Y)415 mm vs 400 mm+4%
Why is H10 20W better than Delta 22W?
- Laser spot size0.16 mm vs 0.08 mm2×
- Max cutting depth – wood / plywood (one pass)10 mm vs 12 mm+20%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 450 nm | 450 nm |
| Laser power | ||
| Laser output power | 22 W | 20 W |
| Work area | ||
| Work area | 425 × 415 mm | 400 × 400 mm |
| Work area width (X) | 425 mm | 400 mm |
| Work area depth (Y) | 415 mm | 400 mm |
| Work area (surface) | 1,764 cm² | 1,600 cm² |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | 500 mm/s | 333 mm/s |
| Max cutting depth – wood / plywood (one pass) | 10 mm | 12 mm |
| Max cutting depth – acrylic | — | 8 mm |
| Precision | ||
| Laser spot size | 0.16 mm | 0.08 mm |
| Positioning accuracy | — | 0.01 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | No | No |
| Emergency stop button | — | Yes |
| Tilt / movement sensor | — | Yes |
| Built-in fume filter / purifier | Yes | Yes |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | Yes | No |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | Yes | Yes |
| Touchscreen / control panel | Yes | — |
| Offline engraving (no computer) | Yes | — |
| Connectivity & software | ||
| Connections | SD / USB drive | USB |
| Wi-Fi | Yes | No |
| USB | Yes | Yes |
| SD / TF card | Yes | — |
| Phone app control | — | Yes |
| Compatible software | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | 650 mm | — |
| Depth | 730 mm | — |
| Height | 240 mm | — |
| Weight | 7 kg | — |
| Rated power consumption | 144 W | — |
