OrturDiode laser engraver

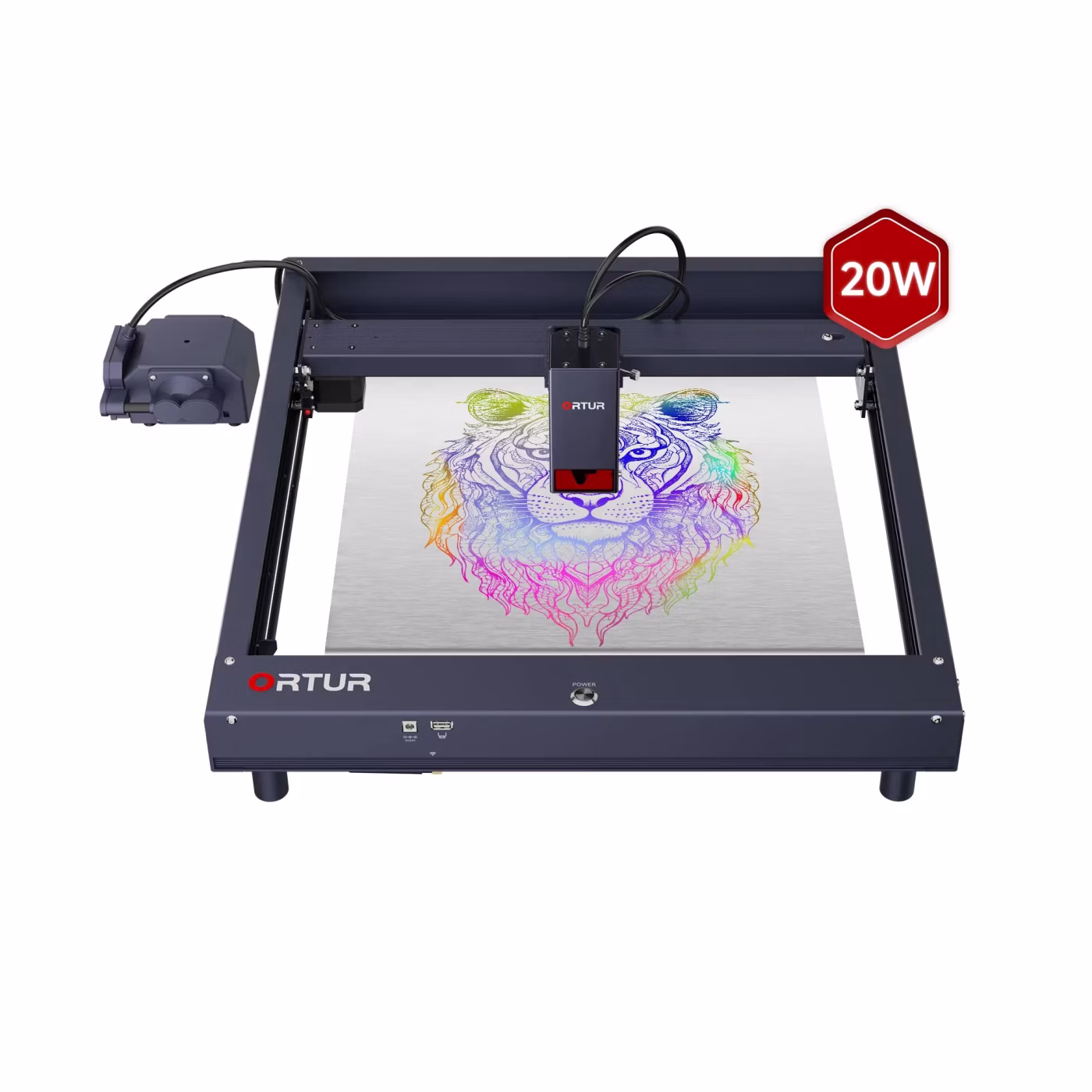

Ortur H10 20W
Ortur H10 20W is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 20 W, work area 400 × 400 mm, max engraving / travel speed 333 mm/s.
7.5Score
Power & cutting7.0
Speed5.3
Precision7.0
Work area7.7
Safety6.2
Features & ease of use4.8
price rangeUS$580–720
- Year
- 2023
- Brand
Ortur- Popularity
- #140 of 406
Blue diode (≈455 nm)Laser sources
20 WLaser output power
400 × 400 mmWork area
333 mm/sMax engraving / travel speed
0.08 mmLaser spot size
12 mmMax cutting depth – wood / plywood (one pass)
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2023
Laser output power · 20 WBottom 45%
Max engraving / travel speed · 333 mm/sBottom 29%
Laser spot size · 0.08 mmTop 42%
Max cutting depth – wood / plywood (one pass) · 12 mmBottom 41%
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
compared with other diode laser engravers
Why is H10 20W a good choice?
Work area (surface): 1,600 cm²better than 72% of diode laser engravers
Laser output power: 20 Wbetter than 70% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 450 nm
Laser power
- Laser output power
- 20 W
Work area
- Work area
- 400 × 400 mm
- Work area width (X)
- 400 mm
- Work area depth (Y)
- 400 mm
- Work area (surface)
- 1,600 cm²
Speed & cutting
- Max engraving / travel speed
- 333 mm/s
- Max cutting depth – wood / plywood (one pass)
- 12 mm
- Max cutting depth – acrylic
- 8 mm
Precision
- Laser spot size
- 0.08 mm
- Positioning accuracy
- 0.01 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- No
- Emergency stop button
- Yes
- Tilt / movement sensor
- Yes
- Built-in fume filter / purifier
- Yes
- Laser shield / filter cover
- Yes
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
