GweikeDiode laser engraver

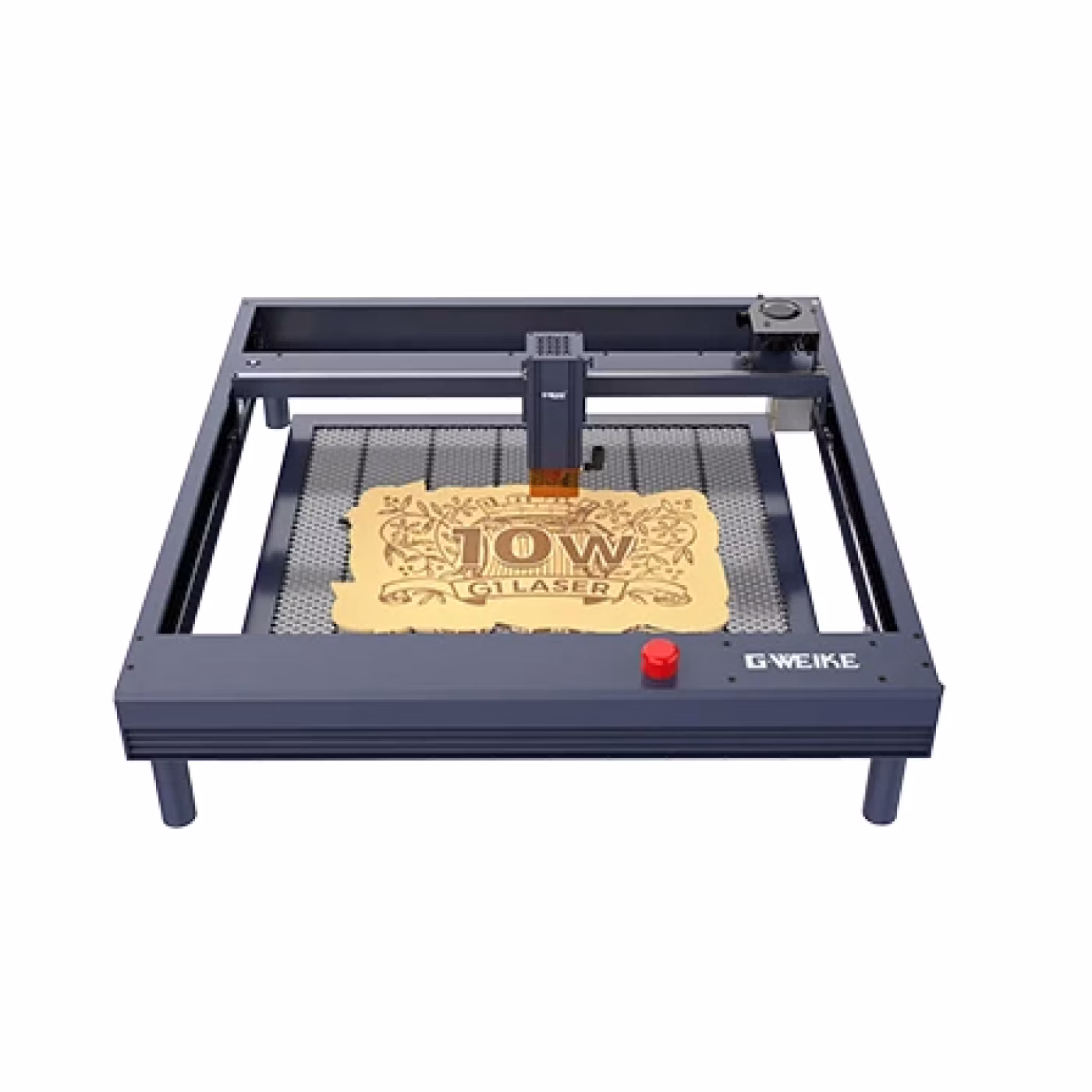

Gweike G1 10W
Gweike G1 10W is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 10 W, work area 410 × 310 mm, max engraving / travel speed 400 mm/s.
6.7Score
Power & cutting5.7
Speed6.1
Precision7.0
Work area5.8
Safety6.0
Features & ease of use7.4
price rangeUS$215–265
- Year
- 2023
- Brand
Gweike- Popularity
- #199 of 406
Blue diode (≈455 nm)Laser sources
10 WLaser output power
410 × 310 mmWork area
400 mm/sMax engraving / travel speed
0.08 mmLaser spot size
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2023
Laser output power · 10 WBottom 27%
Max engraving / travel speed · 400 mm/sBottom 34%
Laser spot size · 0.08 mmTop 42%
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 450 nm
Laser power
- Laser output power
- 10 W
Work area
- Work area
- 410 × 310 mm
- Work area width (X)
- 410 mm
- Work area depth (Y)
- 310 mm
- Work area (surface)
- 1,271 cm²
Speed & cutting
- Max engraving / travel speed
- 400 mm/s
Precision
- Laser spot size
- 0.08 mm
- Positioning accuracy
- 0.01 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- No
- Emergency stop button
- Yes
- Tilt / movement sensor
- Yes
- Laser shield / filter cover
- Yes
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
Connectivity & software
- Connections
- USB
- Wi-Fi
- Yes
- USB
- Yes
- LightBurn compatible
- Yes
- File formats
- AI, PDF, DXF, HPGL, PLT, SVG, LBRN, LBRN2, BMP, JPG, PNG, GIF
Size & power
- Width
- 613 mm
- Depth
- 590 mm
- Height
- 160 mm
- Weight
- 6.6 kg
- Rated power consumption
- 120 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
