ElegooDiode laser engraver

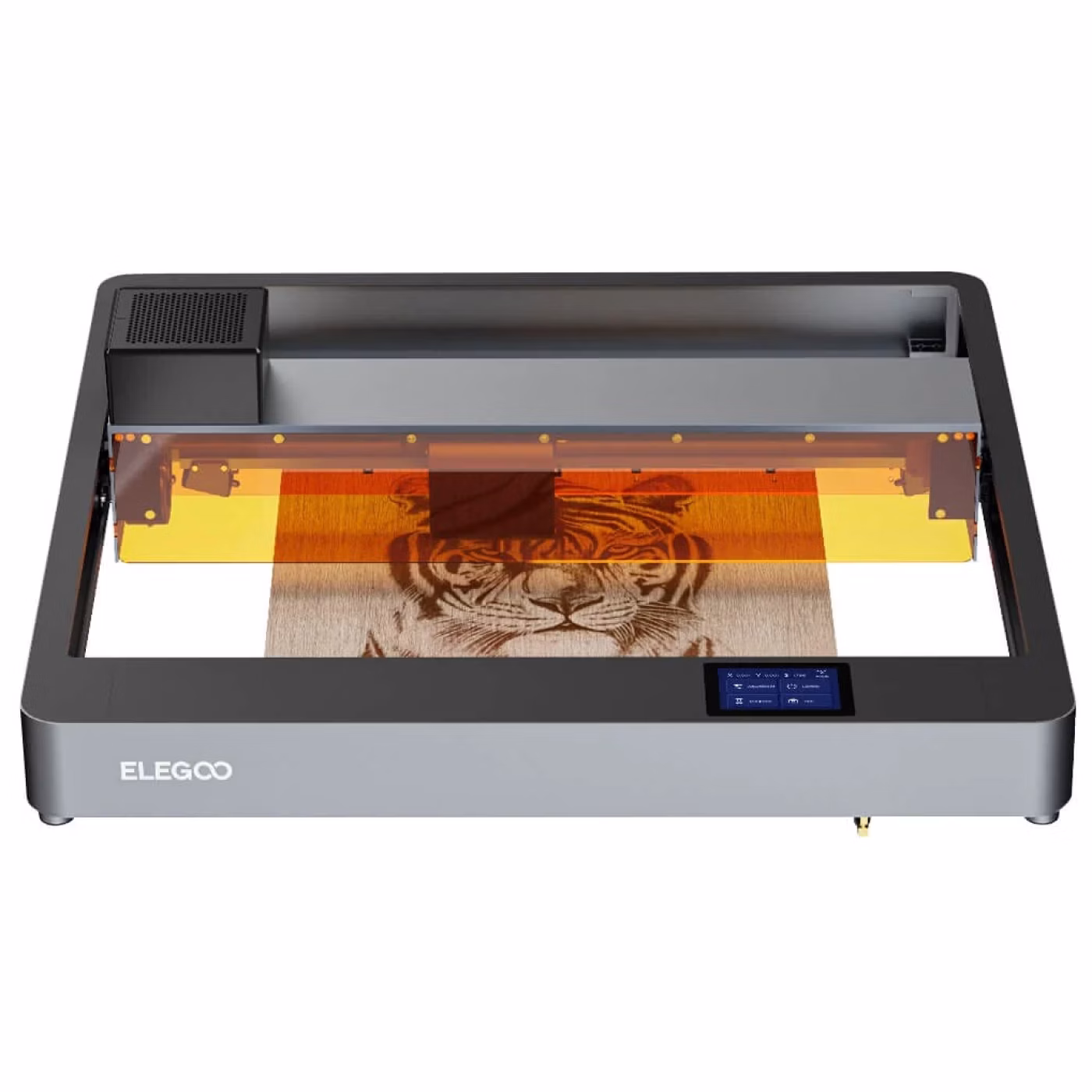

Elegoo PHECDA 10W
Elegoo PHECDA 10W is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 10 W, work area 400 × 400 mm, max engraving / travel speed 417 mm/s.
7.8Score
Power & cutting4.8
Speed6.6
Precision8.7
Work area7.7
Safety5.8
Features & ease of use6.4
price rangeUS$210–260
- Year
- 2023
- Brand
Elegoo- Popularity
- #373 of 406
Blue diode (≈455 nm)Laser sources
10 WLaser output power
400 × 400 mmWork area
417 mm/sMax engraving / travel speed
0.06 mmLaser spot size
8 mmMax cutting depth – wood / plywood (one pass)
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2023
Laser output power · 10 WBottom 27%
Max engraving / travel speed · 417 mm/sBottom 38%
Laser spot size · 0.06 mmTop 21%
Max cutting depth – wood / plywood (one pass) · 8 mmBottom 19%
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
compared with other diode laser engravers
Why is PHECDA 10W a good choice?
Work area (surface): 1,600 cm²better than 72% of diode laser engravers
Laser spot size: 0.06 mmbetter than 77% of diode laser engravers
Weak points
Max cutting depth – wood / plywood (one pass): 8 mmworse than 88% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 455 nm
Laser power
- Laser output power
- 10 W
Work area
- Work area
- 400 × 400 mm
- Work area width (X)
- 400 mm
- Work area depth (Y)
- 400 mm
- Work area (surface)
- 1,600 cm²
Speed & cutting
- Max engraving / travel speed
- 417 mm/s
- Max cutting depth – wood / plywood (one pass)
- 8 mm
Precision
- Laser spot size
- 0.06 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- No
- Tilt / movement sensor
- Yes
- Built-in fume filter / purifier
- Yes
- Exhaust fan
- Yes
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
- Touchscreen / control panel
- Yes
Connectivity & software
- Connections
- USB, SD / USB drive
- Wi-Fi
- Yes
- USB
- Yes
- SD / TF card
- Yes
- Phone app control
- Yes
- LightBurn compatible
- Yes
- File formats
- SVG, DXF, JPG, PNG, BMP, TIF
Size & power
- Width
- 673 mm
- Depth
- 660 mm
- Height
- 190 mm
- Weight
- 6.5 kg
- Rated power consumption
- 55 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
