AtomStackDiode laser engraver

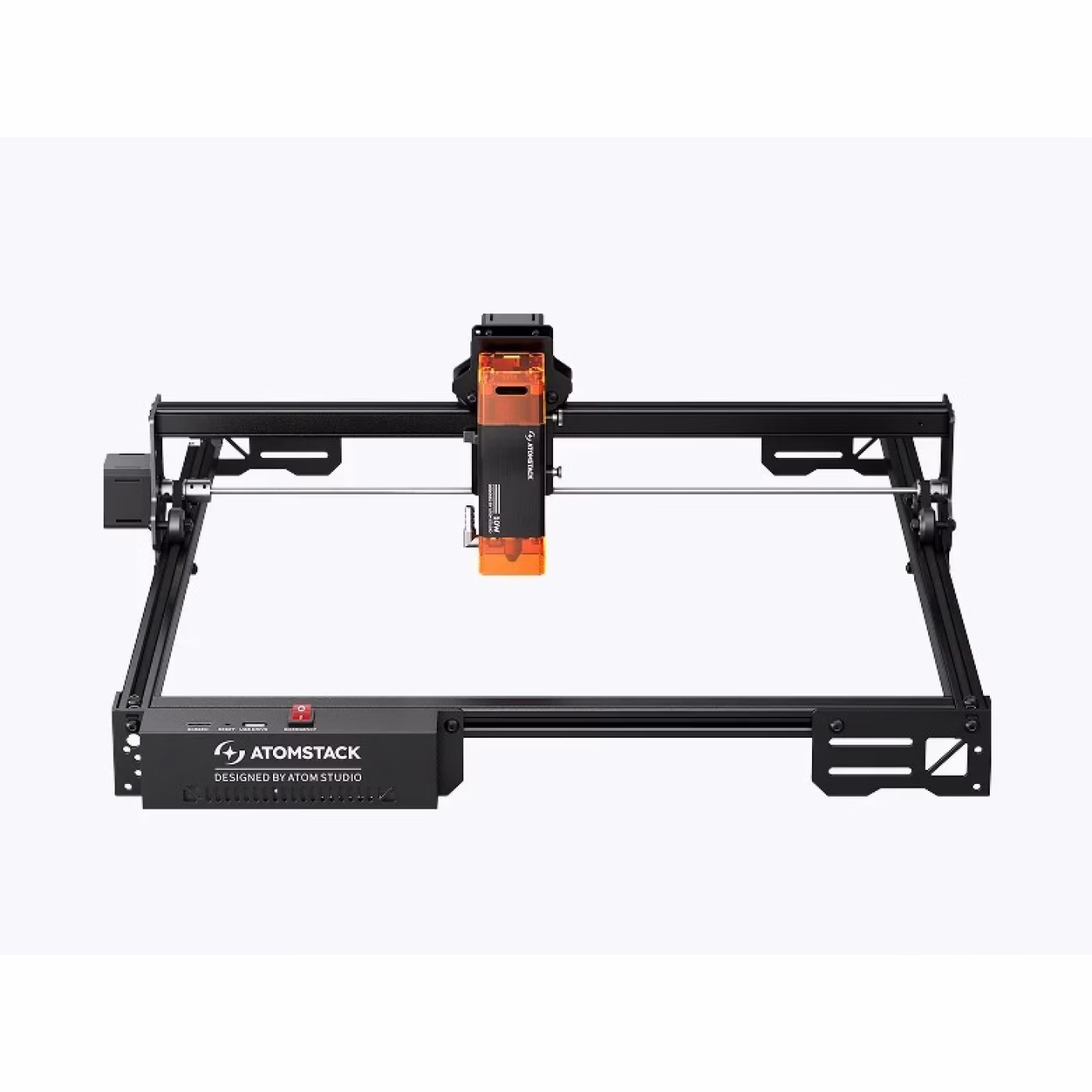

AtomStack A10 Pro V2
AtomStack A10 Pro V2 is a diode laser engraver released in 2024. Key specs: laser sources Blue diode (≈455 nm), laser output power 10 W, work area 410 × 380 mm, max engraving / travel speed 400 mm/s.
6.9Score
Power & cutting6.3
Speed6.1
Precision5.5
Work area7.1
Safety6.4
Features & ease of use4.0
price rangeUS$205–255
- Year
- 2024
- Brand
AtomStack- Popularity
- #22 of 406
Blue diode (≈455 nm)Laser sources
10 WLaser output power
410 × 380 mmWork area
400 mm/sMax engraving / travel speed
0.08 mmLaser spot size
12 mmMax cutting depth – wood / plywood (one pass)
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2024
Laser output power · 10 WBottom 23%
Max engraving / travel speed · 400 mm/sBottom 33%
Laser spot size · 0.08 mmTop 40%
Max cutting depth – wood / plywood (one pass) · 12 mmBottom 41%
Compared with diode laser engravers released in 2024. Bars show the share of models it beats.
compared with other diode laser engravers
Why is A10 Pro V2 a good choice?
Max cutting depth – acrylic: 10 mmbetter than 72% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 455 nm
Laser power
- Laser output power
- 10 W
Work area
- Work area
- 410 × 380 mm
- Work area width (X)
- 410 mm
- Work area depth (Y)
- 380 mm
- Work area (surface)
- 1,558 cm²
Speed & cutting
- Max engraving / travel speed
- 400 mm/s
- Max cutting depth – wood / plywood (one pass)
- 12 mm
- Max cutting depth – acrylic
- 10 mm
Precision
- Laser spot size
- 0.08 mm
- Positioning accuracy
- 0.02 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- Yes
Features
- Air assist
- No
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
Connectivity & software
- Connections
- USB, Wi-Fi
- Wi-Fi
- Yes
- USB
- Yes
- LightBurn compatible
- Yes
- File formats
- JPG, SVG, PNG, BMP, PDF, G-code, DXF
Size & power
- Width
- 178 mm
- Depth
- 254 mm
- Height
- 178 mm
- Weight
- 6 kg
- Rated power consumption
- 50 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
