AlgolaserDiode laser engraver

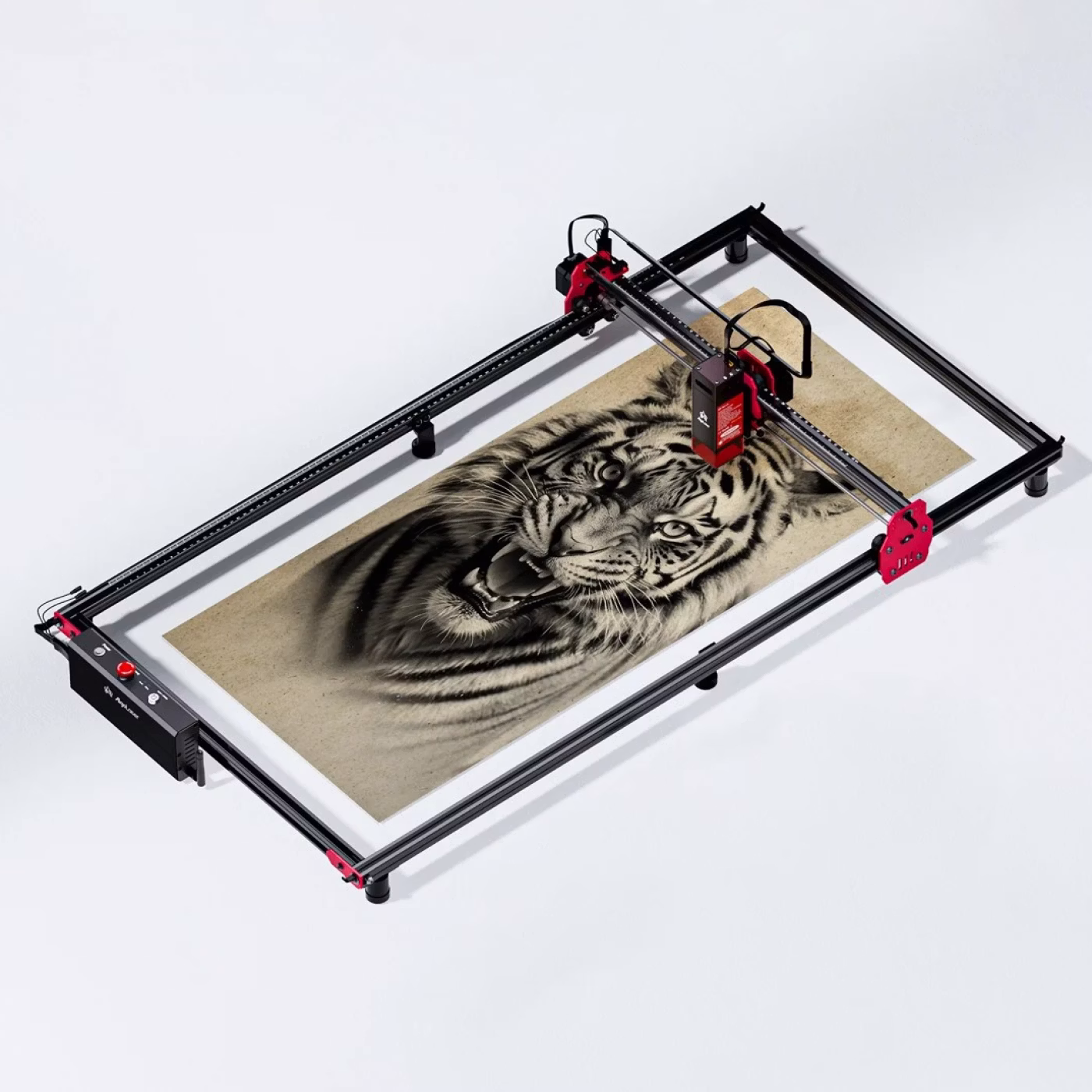

Algolaser Extended 5W
Algolaser Extended 5W is a diode laser engraver released in 2024. Key specs: laser sources Blue diode (≈455 nm), laser output power 5 W, work area 400 × 400 mm, max engraving / travel speed 200 mm/s.
6.0Score
Power & cutting3.2
Speed4.4
Precision6.2
Work area7.7
Safety4.9
Features & ease of use8.4
price rangeUS$260–320
- Year
- 2024
- Brand
Algolaser- Popularity
- #67 of 406
Blue diode (≈455 nm)Laser sources
5 WLaser output power
400 × 400 mmWork area
200 mm/sMax engraving / travel speed
0.08 mmLaser spot size
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2024
Laser output power · 5 WBottom 8%
Max engraving / travel speed · 200 mm/sBottom 15%
Laser spot size · 0.08 mmTop 40%
Compared with diode laser engravers released in 2024. Bars show the share of models it beats.
compared with other diode laser engravers
Why is Extended 5W a good choice?
Work area (surface): 1,600 cm²better than 72% of diode laser engravers
Weak points
Laser output power: 5 Wworse than 87% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 455 nm
Laser power
- Laser output power
- 5 W
Work area
- Work area
- 400 × 400 mm
- Work area width (X)
- 400 mm
- Work area depth (Y)
- 400 mm
- Work area (surface)
- 1,600 cm²
- Work-area extension kit
- Yes
Speed & cutting
- Max engraving / travel speed
- 200 mm/s
Precision
- Laser spot size
- 0.08 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- No
- Built-in fume filter / purifier
- Yes
Features
- Air assist
- Yes
- Built-in camera
- Yes
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
- Offline engraving (no computer)
- Yes
Connectivity & software
- Connections
- SD / USB drive
- Wi-Fi
- Yes
- USB
- Yes
- SD / TF card
- Yes
- LightBurn compatible
- Yes
Size & power
- Width
- 642 mm
- Depth
- 602 mm
- Height
- 146 mm
- Weight
- 4.3 kg
- Rated power consumption
- 120 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
