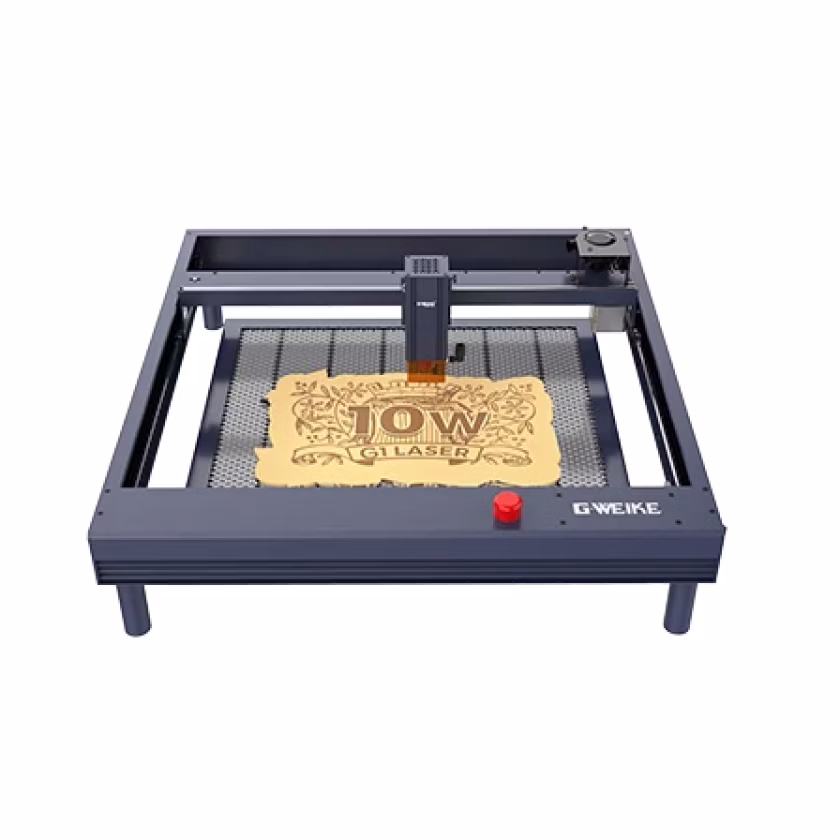

AtomStack A10 Pro V2 vs Gweike G1 10W
What A10 Pro V2 does better (4) and where G1 10W wins (2) — every spec side by side.
vs
6.3Power & cutting5.7
6.1Speed6.1
5.5Precision7.0
7.1Work area5.8
6.4Safety6.0
4.0Features & ease of use7.4
Dimensions
Size comparison
A10 Pro V2G1 10W
| A10 Pro V2 | G1 10W | Difference | |
|---|---|---|---|
| Height | 178 mm | 160 mm | +18 mm |
| Width | 178 mm | 613 mm | −435 mm |
| Depth | 254 mm | 590 mm | −336 mm |
| Weight | 6 kg | 6.6 kg | −0.6 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is A10 Pro V2 better than G1 10W?
- Work area (surface)1,558 cm² vs 1,271 cm²+23%
- Flame / fire detectionYes · G1 10W: No
- Work area depth (Y)380 mm vs 310 mm+23%
- Weight6 kg vs 6.6 kg+10%
Why is G1 10W better than A10 Pro V2?
- Positioning accuracy0.02 mm vs 0.01 mm2×
- Air assistNo · A10 Pro V2: Yes
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 455 nm | 450 nm |
| Laser power | ||
| Laser output power | 10 W | 10 W |
| Work area | ||
| Work area | 410 × 380 mm | 410 × 310 mm |
| Work area width (X) | 410 mm | 410 mm |
| Work area depth (Y) | 380 mm | 310 mm |
| Work area (surface) | 1,558 cm² | 1,271 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | 400 mm/s | 400 mm/s |
| Max cutting depth – wood / plywood (one pass) | 12 mm | — |
| Max cutting depth – acrylic | 10 mm | — |
| Precision | ||
| Laser spot size | 0.08 mm | 0.08 mm |
| Positioning accuracy | 0.02 mm | 0.01 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | Yes | No |
| Emergency stop button | — | Yes |
| Tilt / movement sensor | — | Yes |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | No | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | Yes |
| Connectivity & software | ||
| Connections | USB, Wi-Fi | USB |
| Wi-Fi | Yes | Yes |
| USB | Yes | Yes |
| Compatible software | LightBurn, LaserGRBL, AtomStack Studio | LightBurn |
| LightBurn compatible | Yes | Yes |
| File formats | JPG, SVG, PNG, BMP, PDF, G-code, DXF | AI, PDF, DXF, HPGL, PLT, SVG, LBRN, LBRN2, BMP, JPG, PNG, GIF |
| Size & power | ||
| Width | 178 mm | 613 mm |
| Depth | 254 mm | 590 mm |
| Height | 178 mm | 160 mm |
| Weight | 6 kg | 6.6 kg |
| Rated power consumption | 50 W | 120 W |
