LongerDiode laser engraver

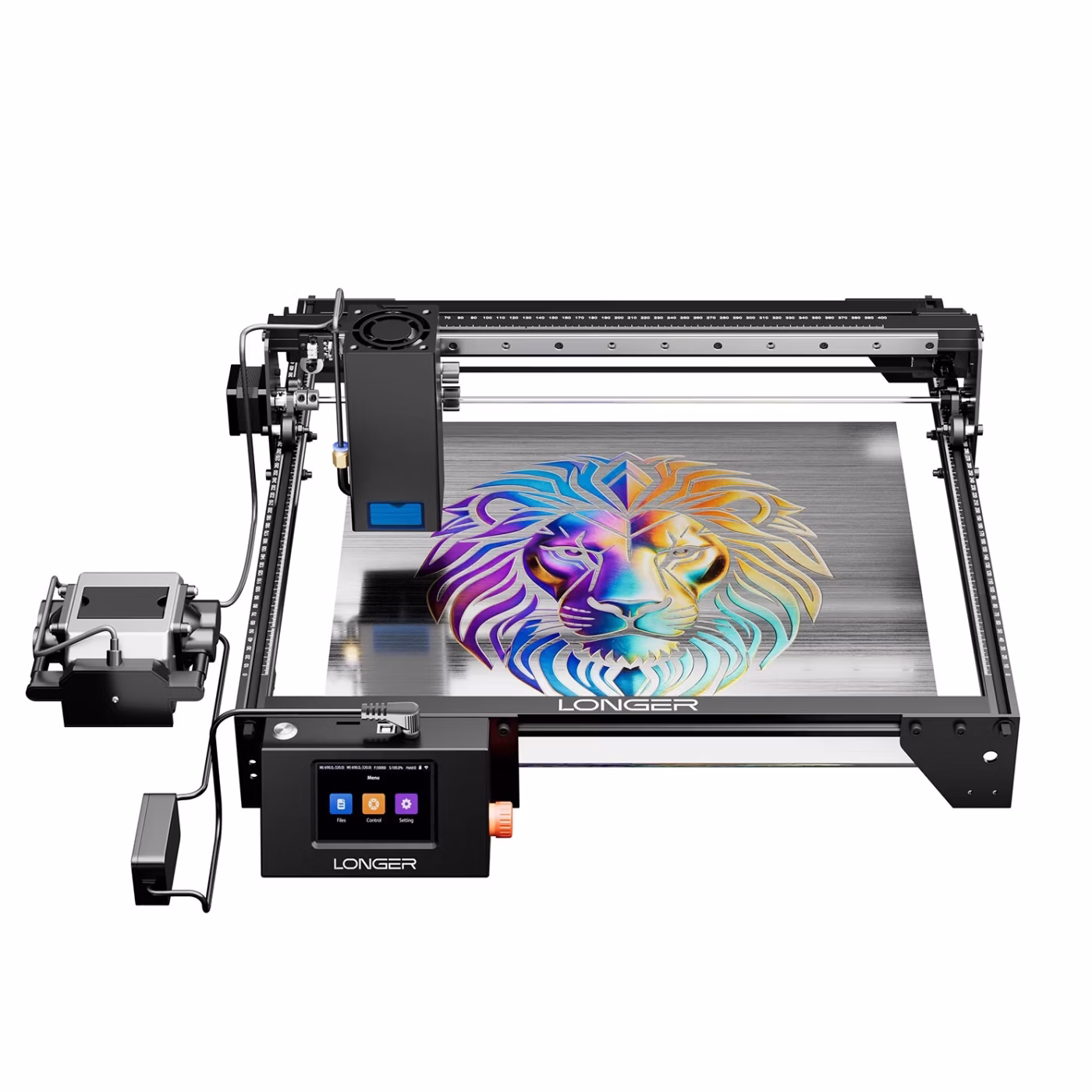

Longer Ray5 10W
Longer Ray5 10W is a diode laser engraver released in 2022. Key specs: laser sources Blue diode (≈455 nm), laser output power 10 W, work area 385 × 385 mm, max engraving / travel speed 400 mm/s.
6.1Score
Power & cutting6.8
Speed6.1
Precision3.0
Work area6.8
Safety4.3
Features & ease of use6.2
price rangeUS$215–265
- Year
- 2022
- Brand
Longer- Popularity
- #285 of 406
Blue diode (≈455 nm)Laser sources
10 WLaser output power
385 × 385 mmWork area
400 mm/sMax engraving / travel speed
0.15 mmLaser spot size
30 mmMax cutting depth – wood / plywood (one pass)
NoEnclosed (fully covered)
Class 4 (open beam)Laser safety class
Spec guide
How it ranks among diode laser engravers
Laser output power · 10 WBottom 30%
Max engraving / travel speed · 400 mm/sBottom 38%
Laser spot size · 0.15 mmBottom 16%
Max cutting depth – wood / plywood (one pass) · 30 mmTop 7%
Compared with every model of this kind in the catalog.
compared with other diode laser engravers
Why is Ray5 10W a good choice?
Max cutting depth – wood / plywood (one pass): 30 mmbetter than 92% of diode laser engravers
Weak points
Laser spot size: 0.15 mmworse than 83% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 460 nm
Laser power
- Laser output power
- 10 W
Work area
- Work area
- 385 × 385 mm
- Work area width (X)
- 385 mm
- Work area depth (Y)
- 385 mm
- Work area (surface)
- 1,482 cm²
Speed & cutting
- Max engraving / travel speed
- 400 mm/s
- Max cutting depth – wood / plywood (one pass)
- 30 mm
Precision
- Laser spot size
- 0.15 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- Yes
- Emergency stop button
- Yes
- Tilt / movement sensor
- Yes
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- No
- Touchscreen / control panel
- Yes
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
