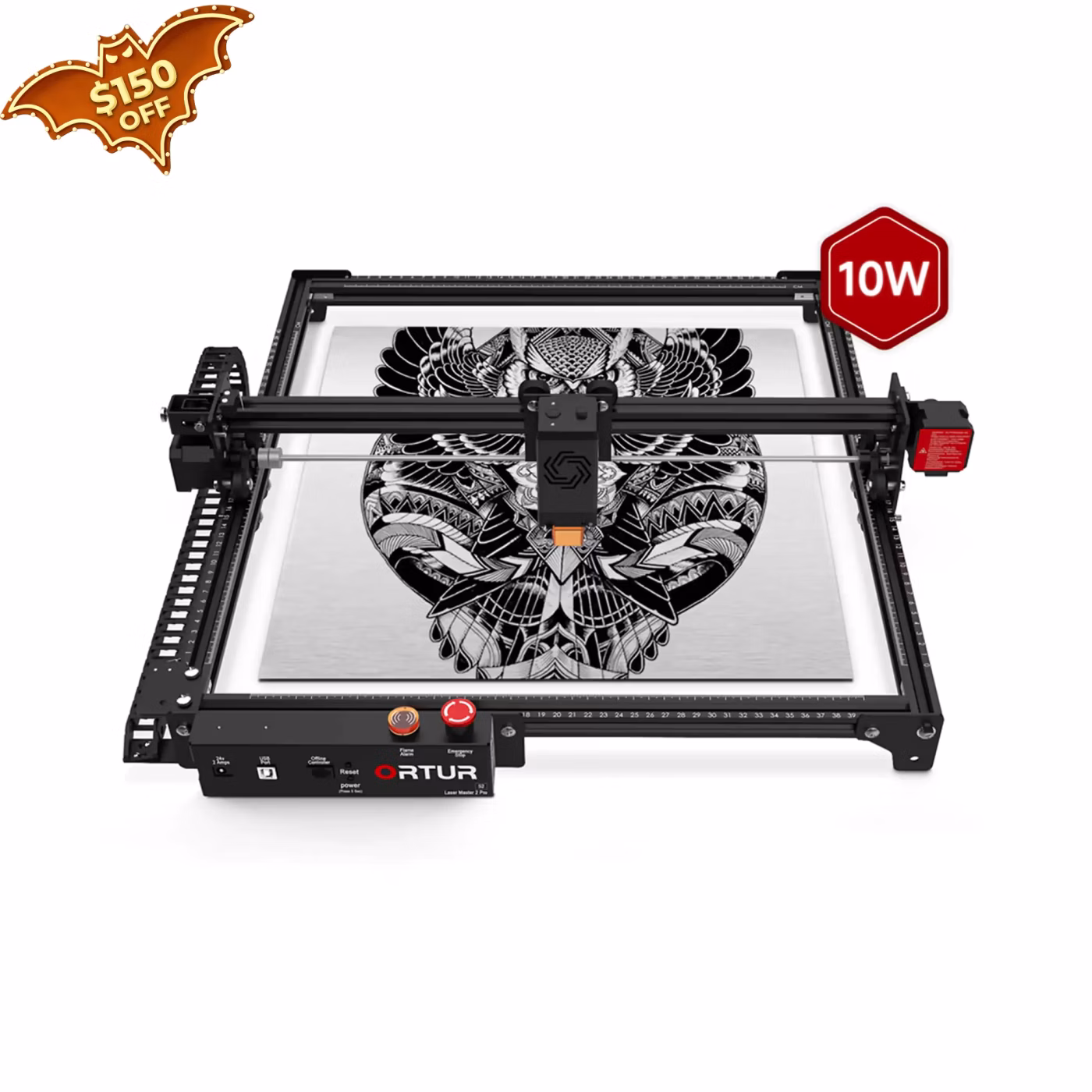

Ortur LM2 Pro S2 10W
Ortur LM2 Pro S2 10W is a diode laser engraver released in 2021. Key specs: laser sources Blue diode (≈455 nm), laser output power 10 W, work area 400 × 400 mm, max engraving / travel speed 250 mm/s.
6.5Score
Power & cutting5.0
Speed4.8
Work area7.7
Safety7.1
Features & ease of use4.6
price rangeUS$260–330
- Year
- 2021
- Brand
Ortur- Popularity
- #230 of 406
Blue diode (≈455 nm)Laser sources
10 WLaser output power
400 × 400 mmWork area
250 mm/sMax engraving / travel speed
12 mmMax cutting depth – wood / plywood (one pass)
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers
Laser output power · 10 WBottom 30%
Max engraving / travel speed · 250 mm/sBottom 27%
Max cutting depth – wood / plywood (one pass) · 12 mmBottom 41%
Compared with every model of this kind in the catalog.
compared with other diode laser engravers
Why is LM2 Pro S2 10W a good choice?
Work area (surface): 1,600 cm²better than 72% of diode laser engravers
Weak points
Max cutting depth – acrylic: 5 mmworse than 100% of diode laser engravers
Specifications
Full specifications
Laser power
- Laser output power
- 10 W
Work area
- Work area
- 400 × 400 mm
- Work area width (X)
- 400 mm
- Work area depth (Y)
- 400 mm
- Work area (surface)
- 1,600 cm²
- Work-area extension kit
- Yes
Speed & cutting
- Max engraving / travel speed
- 250 mm/s
- Max cutting depth – wood / plywood (one pass)
- 12 mm
- Max cutting depth – acrylic
- 5 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- Yes
- Emergency stop button
- Yes
- Tilt / movement sensor
- Yes
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
Connectivity & software
- Connections
- USB
- Wi-Fi
- No
- USB
- Yes
- LightBurn compatible
- Yes
Size & power
- Width
- 600 mm
- Depth
- 570 mm
- Height
- 130 mm
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
