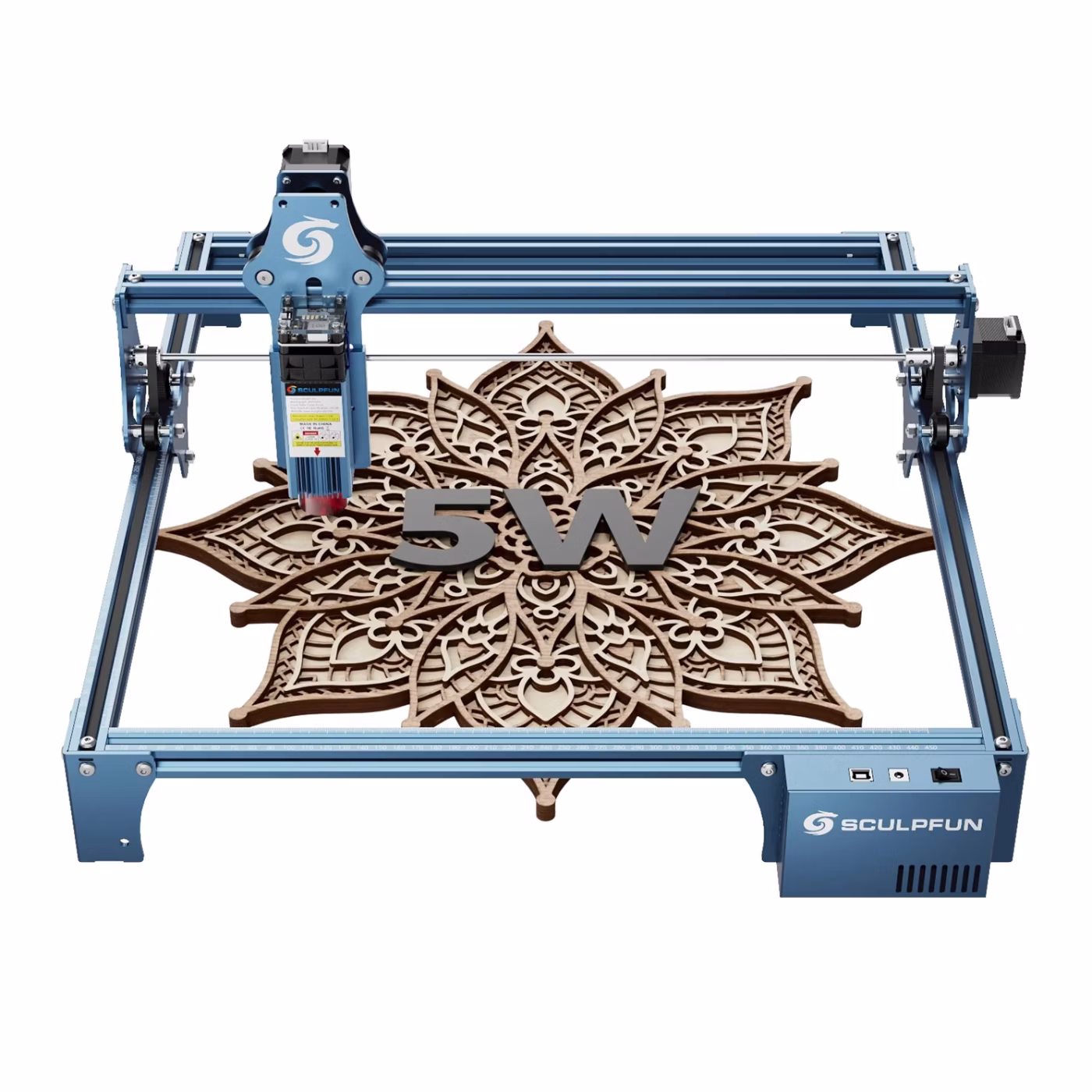

Sculpfun S9 5.5W
Sculpfun S9 5.5WSculpfun S9 5.5WSculpfun S9 5.5WSculpfun S9 5.5WSculpfun S9 5.5WSculpfun S9 5.5W
SculpfunDiode laser engraver

Sculpfun S9 5.5W

Sculpfun S9 5.5W is a diode laser engraver released in 2021. Key specs: laser sources Blue diode (≈455 nm), laser output power 5.5 W, work area 410 × 415 mm, max cutting depth – wood / plywood (one pass) 15 mm.

7.4Score
Power & cutting4.8
Precision7.6
Work area8.7
Safety3.1
Features & ease of use4.7
price rangeUS$160–200
Year
2021
Popularity
#167 of 447
Blue diode (≈455 nm)Laser sources
5.5 WLaser output power
410 × 415 mmWork area
15 mmMax cutting depth – wood / plywood (one pass)
NoEnclosed (fully covered)
Spec guide

How it ranks among diode laser engravers

compared with other diode laser engravers

Why is S9 5.5W a good choice?

Work area (surface): 1,702 cm²better than 85% of diode laser engravers
Weight: 3 kgbetter than 72% of diode laser engravers
Weak points
Laser output power: 5.5 Wworse than 78% of diode laser engravers
Specifications

Full specifications

General
Laser sources
Blue diode (≈455 nm)
Motion system
Gantry (XY rails)
Two laser sources
No
Wavelength
450 nm
Laser power
Laser output power
5.5 W
Work area
Work area
410 × 415 mm
Work area width (X)
410 mm
Work area depth (Y)
415 mm
Work area (surface)
1,702 cm²
Speed & cutting
Max cutting depth – wood / plywood (one pass)
15 mm
Precision
Positioning accuracy
0.01 mm
Safety
Enclosed (fully covered)
No
Flame / fire detection
No
Laser shield / filter cover
Yes
Features
Air assist
Yes
Built-in camera
No
Autofocus / auto height
No
Rotary attachment support
Yes
Connectivity & software
Connections
USB
Wi-Fi
No
USB
Yes
Compatible software
LightBurn, LaserGRBL
LightBurn compatible
Yes
Size & power
Weight
3 kg

Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
