IkierFibre laser marker

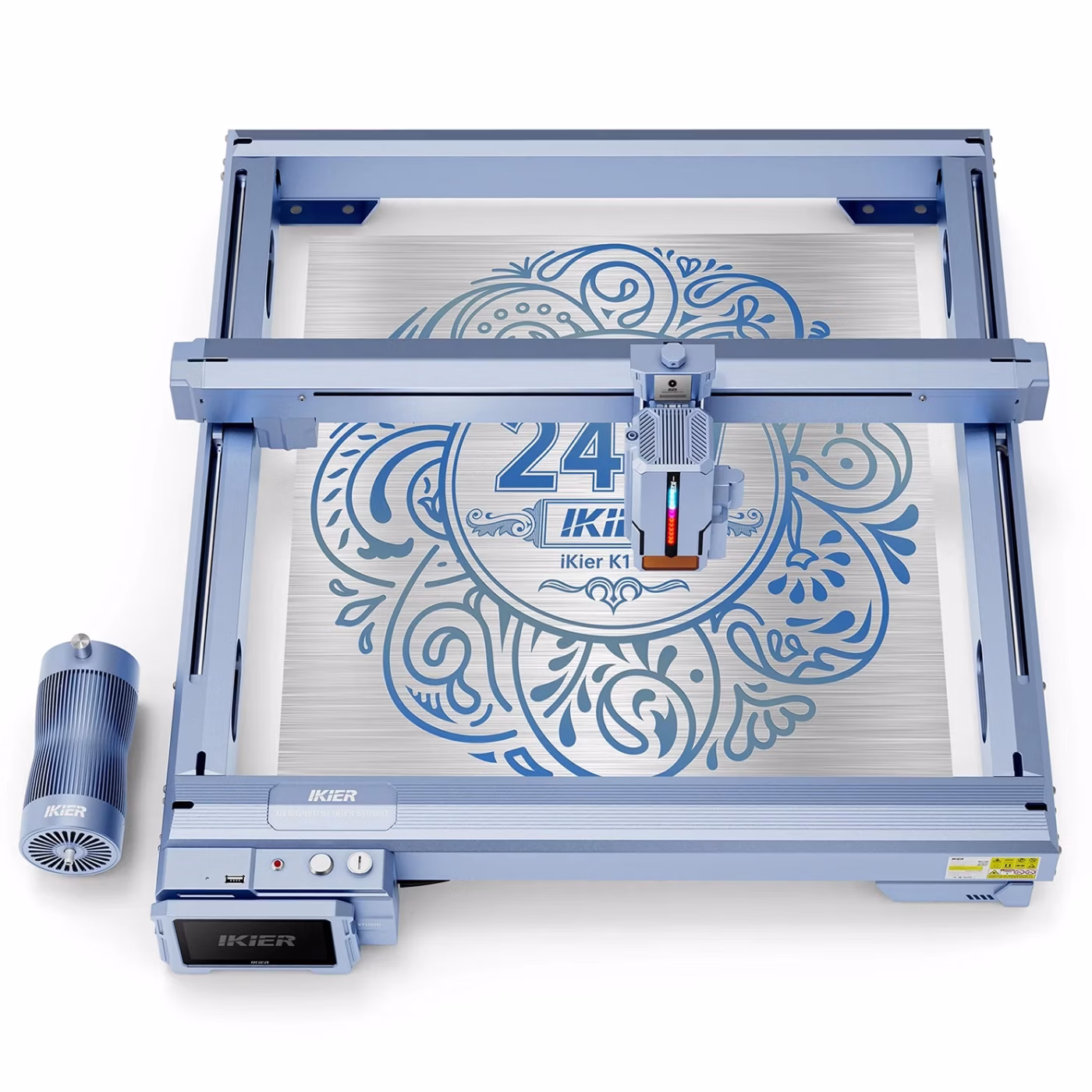

Ikier K1 Pro Fiber 20W
Ikier K1 Pro Fiber 20W is a fibre laser marker released in 2023. Key specs: laser sources Fibre (1064 nm), laser output power 20 W, work area 410 × 410 mm, max engraving / travel speed 800 mm/s.
5.5Score
Power & cutting2.7
Speed2.2
Precision6.5
Work area9.7
Safety8.1
Features & ease of use7.8
price rangeUS$1,250–1,550
- Year
- 2023
- Brand
Ikier- Popularity
- #398 of 406
Fibre (1064 nm)Laser sources
20 WLaser output power
410 × 410 mmWork area
800 mm/sMax engraving / travel speed
0.08 mmLaser spot size
NoEnclosed (fully covered)
Spec guide
How it ranks among fibre laser markers of 2023
Laser output power · 20 WBottom 45%
Max engraving / travel speed · 800 mm/sTop 28%
Laser spot size · 0.08 mmTop 42%
Compared with fibre laser markers released in 2023. Bars show the share of models it beats.
compared with other fibre laser markers
Why is K1 Pro Fiber 20W a good choice?
Work area (surface): 1,681 cm²better than 97% of fibre laser markers
Laser spot size: 0.08 mmbetter than 79% of fibre laser markers
Weight: 12 kgbetter than 82% of fibre laser markers
Weak points
Laser output power: 20 Wworse than 98% of fibre laser markers
Max engraving / travel speed: 800 mm/sworse than 98% of fibre laser markers
Specifications
Full specifications
General
- Motion system
- Galvo (scanning mirrors)
- Two laser sources
- No
- Wavelength
- 1,064 nm
Laser power
- Laser output power
- 20 W
Work area
- Work area
- 410 × 410 mm
- Work area width (X)
- 410 mm
- Work area depth (Y)
- 410 mm
- Work area (surface)
- 1,681 cm²
Speed & cutting
- Max engraving / travel speed
- 800 mm/s
Precision
- Laser spot size
- 0.08 mm
- Positioning accuracy
- 0.01 mm
- Linear rails
- Yes
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- Yes
- Tilt / movement sensor
- Yes
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- Yes
- Rotary attachment support
- Yes
- Touchscreen / control panel
- Yes
- Offline engraving (no computer)
- Yes
Connectivity & software
- Connections
- USB
- Wi-Fi
- Yes
- USB
- Yes
- SD / TF card
- Yes
- LightBurn compatible
- Yes
- File formats
- SVG, DXF, JPG, PNG, BMP, TIF
Size & power
- Width
- 650 mm
- Depth
- 750 mm
- Height
- 222 mm
- Weight
- 12 kg
- Input voltage
- 100–240 V
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
