OMTechFibre laser marker

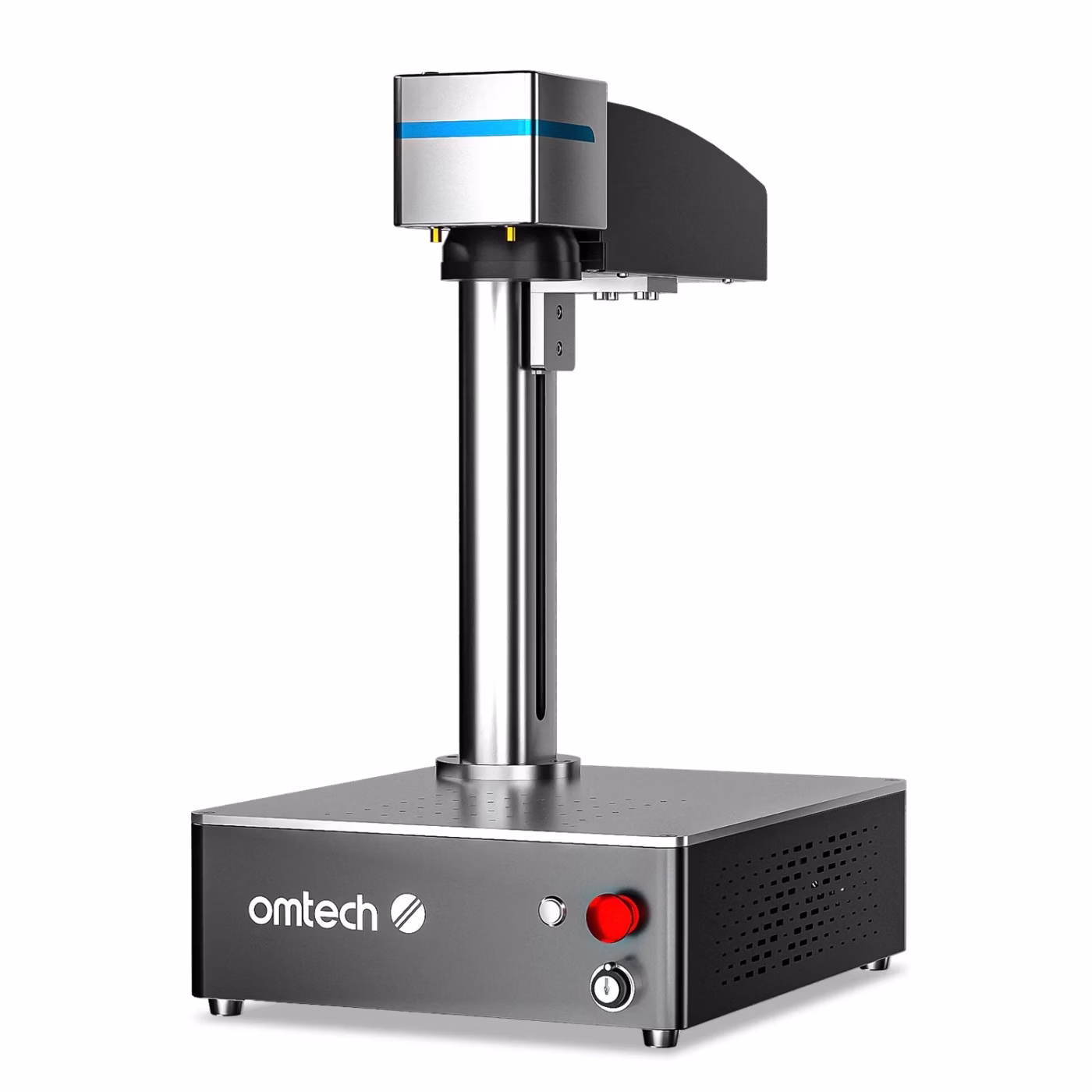

OMTech Integrated 50W
OMTech Integrated 50W is a fibre laser marker released in 2024. Key specs: laser sources Fibre (1064 nm), laser output power 50 W, work area 150 × 150 mm, max engraving / travel speed 10,008 mm/s.
5.6Score
Power & cutting5.7
Speed7.6
Precision4.1
Work area5.0
Safety7.2
Features & ease of use3.8
price rangeUS$1,750–2,200
- Year
- 2024
- Brand
OMTech- Popularity
- #272 of 447
Fibre (1064 nm)Laser sources
50 WLaser output power
150 × 150 mmWork area
10,008 mm/sMax engraving / travel speed
NoEnclosed (fully covered)
Spec guide
How it ranks among fibre laser markers of 2024
Compared with fibre laser markers released in 2024. Bars show the share of models it beats.
compared with other fibre laser markers
Why is Integrated 50W a good choice?
Max engraving / travel speed: 10,008 mm/sbetter than 72% of fibre laser markers
In rankings
Specifications
Full specifications
General
- Motion system
- Galvo (scanning mirrors)
- Two laser sources
- No
- Wavelength
- 1,064 nm
Laser power
- Laser output power
- 50 W
Work area
- Work area
- 150 × 150 mm
- Work area width (X)
- 150 mm
- Work area depth (Y)
- 150 mm
- Work area (surface)
- 225 cm²
Speed & cutting
- Max engraving / travel speed
- 10,008 mm/s
Precision
- Positioning accuracy
- 0.01 mm
Safety
- Enclosed (fully covered)
- No
- Built-in fume filter / purifier
- Yes
Features
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
- Touchscreen / control panel
- Yes
Connectivity & software
- Connections
- USB
- USB
- Yes
- LightBurn compatible
- Yes
- File formats
- BMP, GIF, JPG, DXF, DST, AI
Size & power
- Width
- 400 mm
- Depth
- 340 mm
- Height
- 550 mm
- Weight
- 16.5 kg
- Rated power consumption
- 50 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
