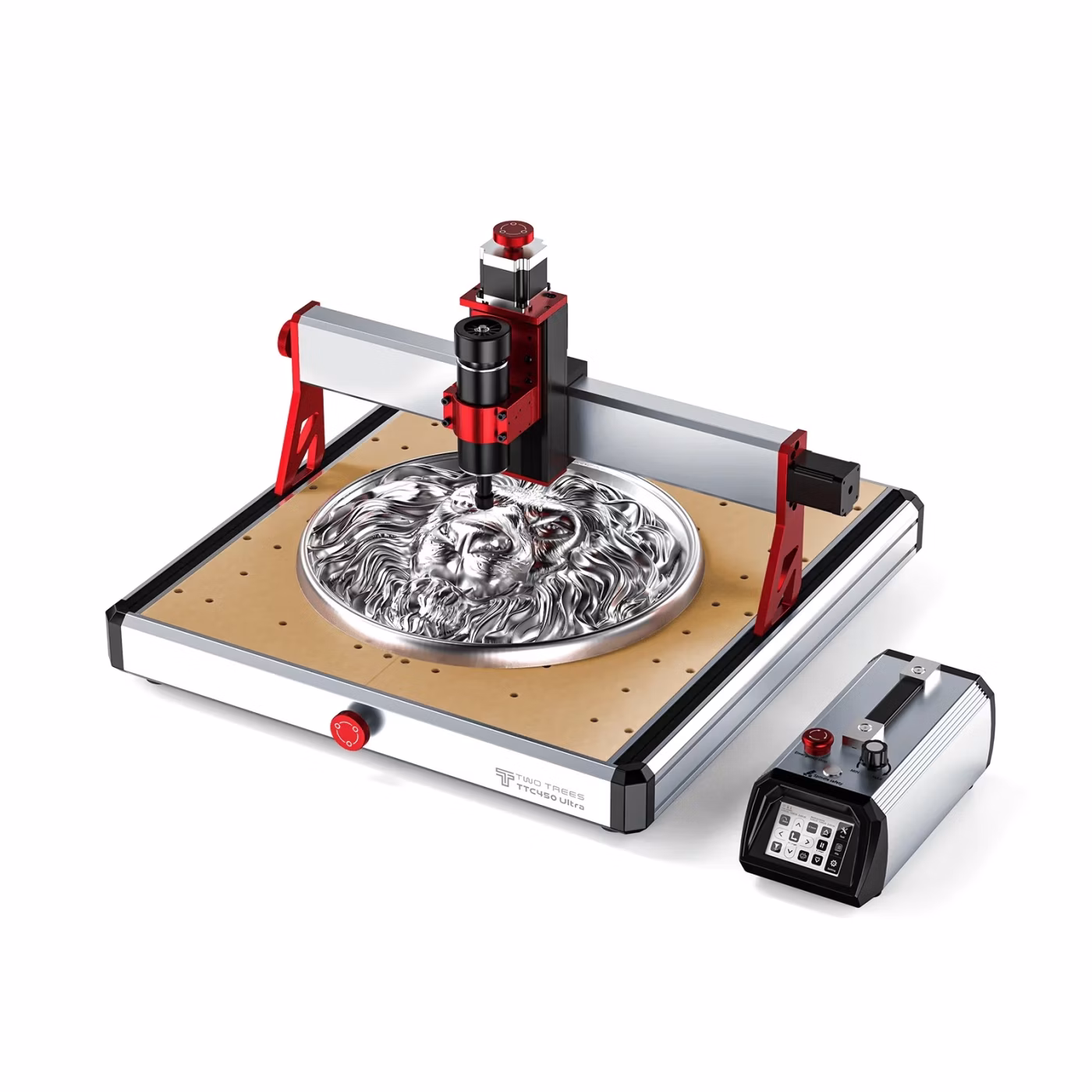

Two Trees TTC450 Ultra
Two Trees TTC450 Ultra is a CNC router released in 2024. Key specs: spindle power 500 W, work area 460 × 460 mm, max engraving / travel speed 50 mm/s.
6.2Score
Power & cutting6.8
Speed4.8
Precision5.0
Work area7.4
Safety6.5
Features & ease of use4.7
price rangeUS$620–770
- Year
- 2024
- Type
- CNC router
- Brand
Two Trees- Popularity
- #94 of 406
500 WSpindle power
460 × 460 mmWork area
50 mm/sMax engraving / travel speed
NoEnclosed (fully covered)
compared with other CNC routers
Why is TTC450 Ultra a good choice?
Work area (surface): 2,116 cm²better than 72% of CNC routers
Max spindle speed: 30,000 rpmbetter than 84% of CNC routers
Specifications
Full specifications
Work area
- Work area
- 460 × 460 mm
- Work area width (X)
- 460 mm
- Work area depth (Y)
- 460 mm
- Work area (surface)
- 2,116 cm²
- Z travel
- 100 mm
Speed & cutting
- Max engraving / travel speed
- 50 mm/s
Precision
- Positioning accuracy
- 0.05 mm
- Closed-loop motors / servos
- No
- Linear rails
- Yes
- Ball screws
- No
Safety
- Enclosed (fully covered)
- No
- Emergency stop button
- Yes
Features
- Rotary attachment support
- Yes
- Touchscreen / control panel
- Yes
- Laser module option (CNC)
- Yes
- Automatic tool changer
- No
- Tool length / Z probe
- No
Connectivity & software
- Connections
- SD / USB drive
- SD / TF card
- Yes
- Controller / firmware
- GRBL
- File formats
- NC, G-code
CNC milling
- Spindle power
- 500 W
- Max spindle speed
- 30,000 rpm
Size & power
- Width
- 745 mm
- Depth
- 660 mm
- Height
- 473 mm
- Weight
- 19 kg
- Rated power consumption
- 80 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
