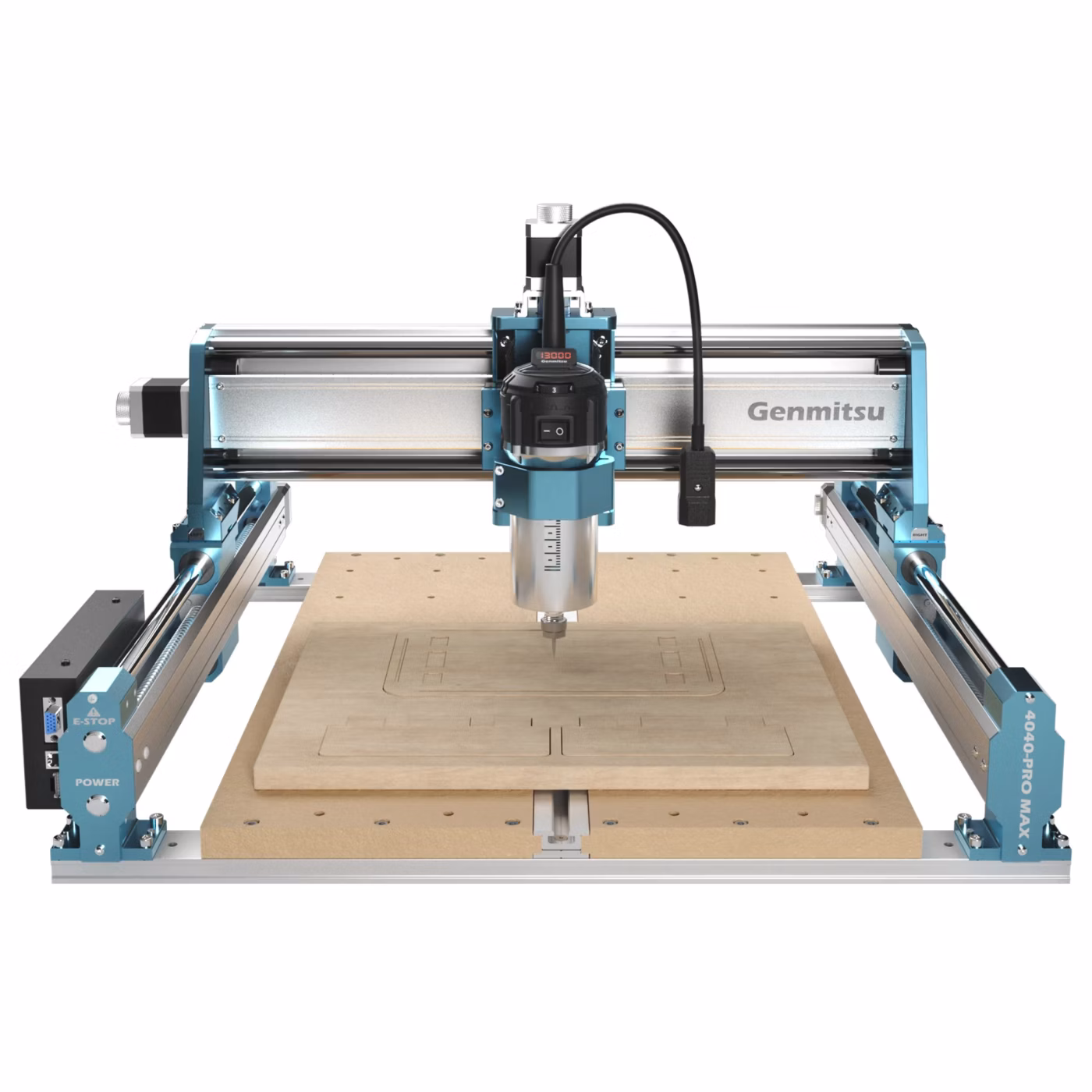

Genmitsu 4040-Pro Max
Genmitsu 4040-Pro MaxGenmitsu 4040-Pro MaxGenmitsu 4040-Pro MaxGenmitsu 4040-Pro MaxGenmitsu 4040-Pro MaxGenmitsu 4040-Pro Max
GenmitsuCNC router

Genmitsu 4040-Pro Max

Genmitsu 4040-Pro Max is a CNC router released in 2024. Key specs: spindle power 710 W, work area 400 × 400 mm.

6.1Score
Power & cutting8.6
Precision3.1
Work area5.2
Safety6.5
Features & ease of use6.1
price rangeUS$740–920
Year
2024
Popularity
#3 of 447
710 WSpindle power
400 × 400 mmWork area
NoEnclosed (fully covered)
compared with other CNC routers

Why is 4040-Pro Max a good choice?

Specifications

Full specifications

General
Motion system
Gantry (XY rails)
Frame material
Aluminium
Work area
Work area
400 × 400 mm
Work area width (X)
400 mm
Work area depth (Y)
400 mm
Work area (surface)
1,600 cm²
Z travel
78 mm
Work-area extension kit
Yes
Precision
Positioning accuracy
0.1 mm
Closed-loop motors / servos
No
Linear rails
Yes
Ball screws
No
Safety
Enclosed (fully covered)
No
Emergency stop button
Yes
Features
Rotary attachment support
Yes
Offline engraving (no computer)
Yes
Laser module option (CNC)
No
Automatic tool changer
No
Tool length / Z probe
Yes
Connectivity & software
Connections
USB, Wi-Fi
Wi-Fi
Yes
USB
Yes
Compatible software
LightBurn, LaserGRBL, Vectric VCarve, Candle
LightBurn compatible
Yes
CNC milling
Spindle power
710 W
Max spindle speed
30,000 rpm
Size & power
Width
660 mm
Depth
666 mm
Height
390 mm
Weight
24.6 kg

Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
