OrturDiode laser engraver

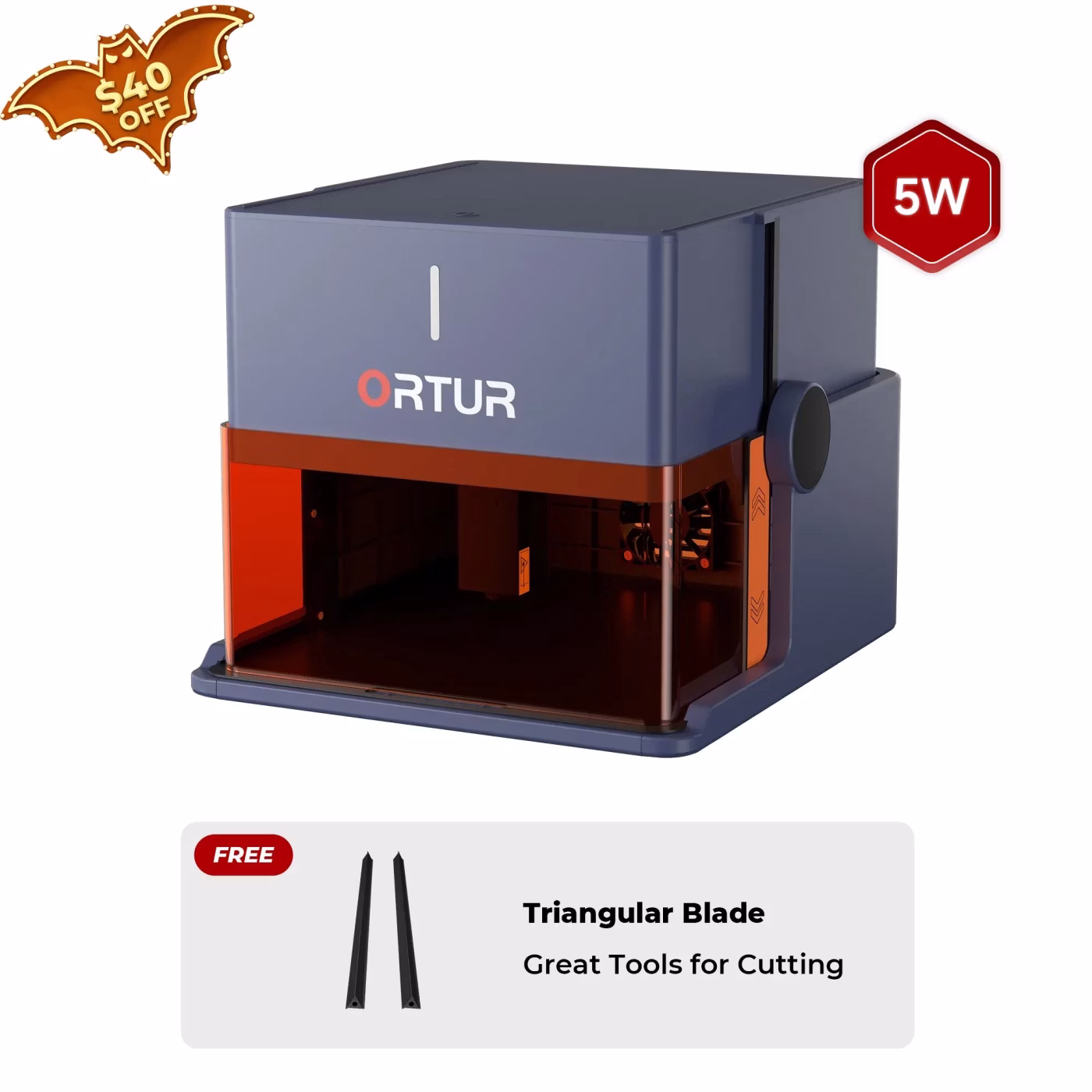

Ortur R1 5W
Ortur R1 5W is a diode laser engraver released in 2025. Key specs: laser sources Blue diode (≈455 nm), Infrared diode (1064 nm), laser output power 5 W, work area 100 × 100 mm, max engraving / travel speed 83 mm/s.
3.6Score
Power & cutting3.2
Speed2.2
Precision3.3
Work area2.3
Safety7.7
Features & ease of use2.2
price rangeUS$195–245
- Year
- 2025
- Brand
Ortur- Popularity
- #228 of 406
Blue diode (≈455 nm), Infrare…Laser sources
5 WLaser output power
100 × 100 mmWork area
83 mm/sMax engraving / travel speed
0.11 mmLaser spot size
YesEnclosed (fully covered)
Class 1 (eye-safe, enclosed)Laser safety class
Spec guide
How it ranks among diode laser engravers of 2025
Laser output power · 5 WBottom 16%
Max engraving / travel speed · 83 mm/sBottom 6%
Laser spot size · 0.11 mmBottom 22%
Compared with diode laser engravers released in 2025. Bars show the share of models it beats.
compared with other diode laser engravers
Why is R1 5W a good choice?
Weight: 2.4 kgbetter than 84% of diode laser engravers
Weak points
Laser output power: 5 Wworse than 87% of diode laser engravers
Work area (surface): 100 cm²worse than 98% of diode laser engravers
Laser spot size: 0.11 mmworse than 78% of diode laser engravers
Max engraving / travel speed: 83 mm/sworse than 99% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 450 nm
Laser power
- Laser output power
- 5 W
Work area
- Work area
- 100 × 100 mm
- Work area width (X)
- 100 mm
- Work area depth (Y)
- 100 mm
- Work area (surface)
- 100 cm²
Speed & cutting
- Max engraving / travel speed
- 83 mm/s
Precision
- Laser spot size
- 0.11 mm
Safety
- Enclosed (fully covered)
- Yes
- Flame / fire detection
- No
- Tilt / movement sensor
- Yes
Features
- Air assist
- No
- Built-in camera
- No
- Autofocus / auto height
- No
Connectivity & software
- Connections
- USB
- Wi-Fi
- No
- USB
- Yes
- Phone app control
- Yes
Size & power
- Width
- 272 mm
- Depth
- 250 mm
- Height
- 140 mm
- Weight
- 2.4 kg
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
