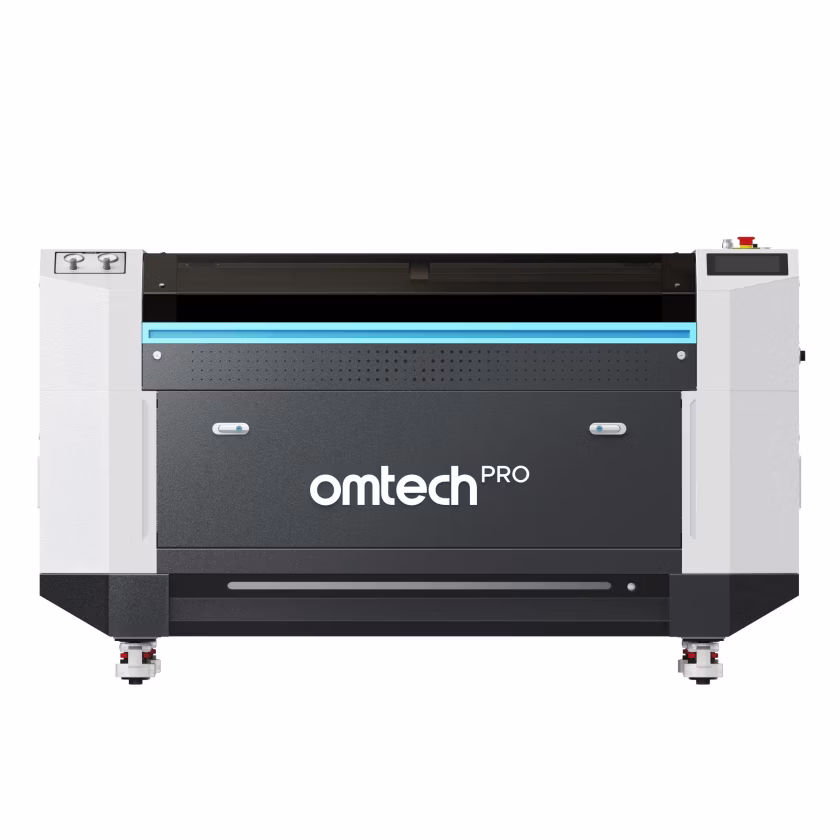

OMTech Pro 3655 130W vs OMTech Pro Flying 100W
What Pro 3655 130W does better (6) and where Pro Flying 100W wins (3) — every spec side by side.
vs
9.0Power & cutting8.4
5.2Precision8.5
8.6Work area7.1
4.8Safety4.8
6.3Features & ease of use7.9
Why is Pro 3655 130W better than Pro Flying 100W?
- Work area (surface)12,600 cm² vs 6,000 cm²2.1×
- Laser output power130 W vs 100 W+30%
- Pass-through slotYes · Pro Flying 100W: No
- Wi-FiYes · Pro Flying 100W: No
- Work area depth (Y)900 mm vs 600 mm+50%
- Work area width (X)1,400 mm vs 1,000 mm+40%
Why is Pro Flying 100W better than Pro 3655 130W?
- Positioning accuracy0.02 mm vs 0.01 mm2×
- Built-in cameraNo · Pro 3655 130W: Yes
- Max workpiece height180 mm vs 201 mm+11%
Specifications
Side by side
| General | ||
| Laser sources | CO2 (10.6 µm) | CO2 (10.6 µm) |
| Motion system | Gantry (XY rails) | Galvo (scanning mirrors) |
| Two laser sources | No | No |
| Laser power | ||
| Laser output power | 130 W | 100 W |
| Work area | ||
| Work area | 1400 × 900 mm | 1000 × 600 mm |
| Work area width (X) | 1,400 mm | 1,000 mm |
| Work area depth (Y) | 900 mm | 600 mm |
| Work area (surface) | 12,600 cm² | 6,000 cm² |
| Max workpiece height | 180 mm | 201 mm |
| Pass-through slot | Yes | No |
| Speed & cutting | ||
| Max engraving / travel speed | 1,200 mm/s | — |
| Precision | ||
| Positioning accuracy | 0.02 mm | 0.01 mm |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Emergency stop button | Yes | — |
| Exhaust fan | Yes | Yes |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | No | Yes |
| Autofocus / auto height | Yes | Yes |
| Rotary attachment support | Yes | Yes |
| Touchscreen / control panel | Yes | Yes |
| Water cooling | Yes | Yes |
| Connectivity & software | ||
| Connections | USB, Wi-Fi | USB, Ethernet |
| Wi-Fi | Yes | No |
| USB | Yes | Yes |
| Ethernet (LAN) | — | Yes |
| Compatible software | LightBurn, RDWorks | — |
| LightBurn compatible | Yes | — |
| Controller / firmware | Ruida | — |
| Size & power | ||
| Width | — | 1,811 mm |
| Depth | — | 1,290 mm |
| Height | — | 1,031 mm |
| Input voltage | — | 110–120 V |
