- G1 10W vs S10 10W

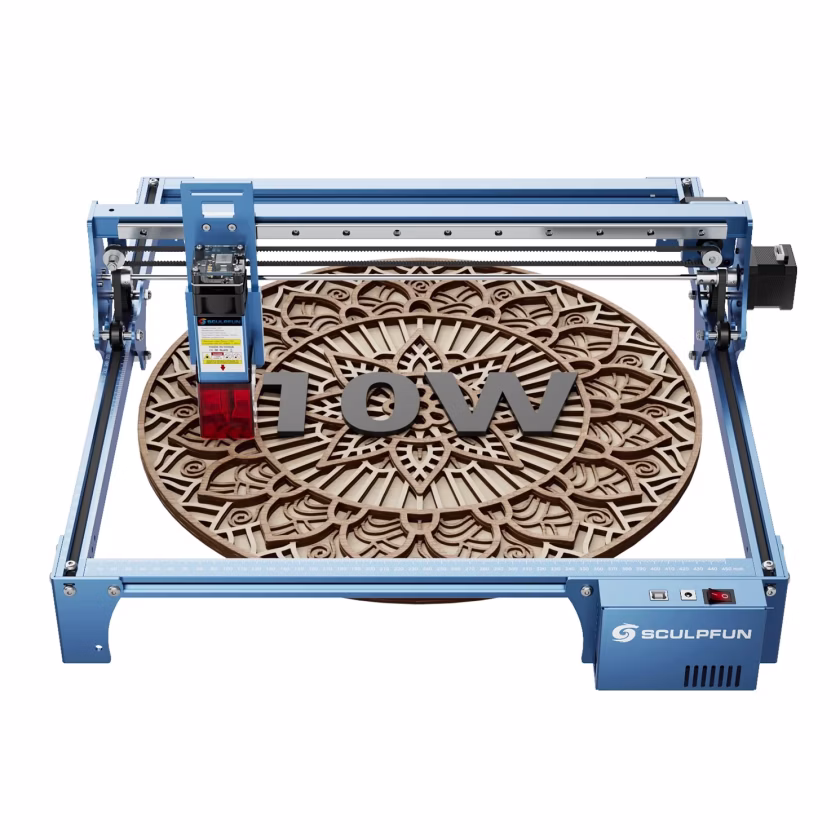

Gweike G1 10W vs Sculpfun S10 10W
What G1 10W does better (2) and where S10 10W wins (3) — every spec side by side.
Why is G1 10W better than S10 10W?
- Wi-FiYes · S10 10W: No
- Work area width (X)410 mm vs 390 mm+5%
Why is S10 10W better than G1 10W?
- Work area (surface)1,271 cm² vs 1,560 cm²+23%
- Weight6.6 kg vs 3.4 kg+94%
- Work area depth (Y)310 mm vs 400 mm+29%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 450 nm | 455 nm |
| Laser power | ||
| Laser output power | 10 W | 10 W |
| Work area | ||
| Work area | 410 × 310 mm | 390 × 400 mm |
| Work area width (X) | 410 mm | 390 mm |
| Work area depth (Y) | 310 mm | 400 mm |
| Work area (surface) | 1,271 cm² | 1,560 cm² |
| Work-area extension kit | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 400 mm/s | — |
| Precision | ||
| Laser spot size | 0.08 mm | — |
| Positioning accuracy | 0.01 mm | 0.01 mm |
| Linear rails | — | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | No | No |
| Emergency stop button | Yes | — |
| Tilt / movement sensor | Yes | — |
| Laser shield / filter cover | Yes | Yes |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | Yes |
| Connectivity & software | ||
| Connections | USB | USB |
| Wi-Fi | Yes | No |
| USB | Yes | Yes |
| Compatible software | LightBurn | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | AI, PDF, DXF, HPGL, PLT, SVG, LBRN, LBRN2, BMP, JPG, PNG, GIF | — |
| Size & power | ||
| Width | 613 mm | — |
| Depth | 590 mm | — |
| Height | 160 mm | — |
| Weight | 6.6 kg | 3.4 kg |
| Rated power consumption | 120 W | 36 W |
| Input voltage | — | 100–240 V |
