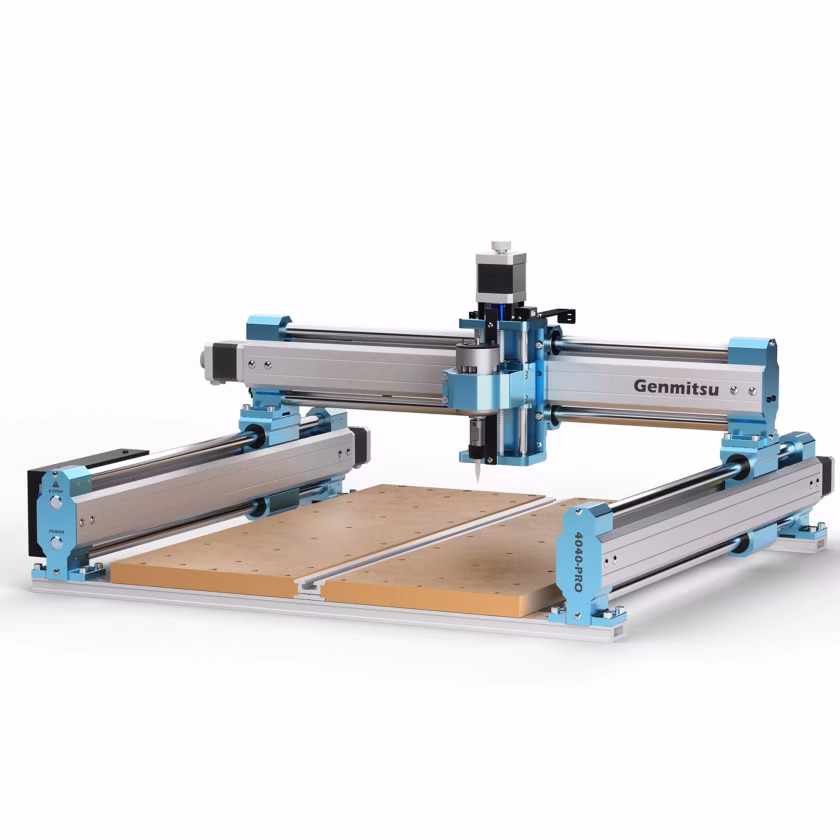

Genmitsu 4040-Pro vs Two Trees TTC450 Pro
What 4040-Pro does better (2) and where TTC450 Pro wins (8) — every spec side by side.
vs
2.3Power & cutting3.9
2.3Precision4.8
4.9Work area7.0
6.5Safety3.1
4.0Features & ease of use5.2
Dimensions
Size comparison
4040-ProTTC450 Pro
| 4040-Pro | TTC450 Pro | Difference | |
|---|---|---|---|
| Height | 343 mm | 413 mm | −70 mm |
| Width | 682 mm | 742 mm | −60 mm |
| Depth | 620 mm | 689 mm | −69 mm |
| Weight | 14.8 kg | 15.4 kg | −0.6 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is 4040-Pro better than TTC450 Pro?
- Tool length / Z probeYes · TTC450 Pro: No
- Weight14.8 kg vs 15.4 kg+4%
Why is TTC450 Pro better than 4040-Pro?
- Work area (surface)1,600 cm² vs 2,116 cm²+32%
- Positioning accuracy0.1 mm vs 0.05 mm2×
- Spindle power75 W vs 80 W+7%
- Ball screwsNo · 4040-Pro: Yes
- Laser module option (CNC)No · 4040-Pro: Yes
- Z travel76 mm vs 80 mm+5%
- Work area width (X)400 mm vs 460 mm+15%
- Work area depth (Y)400 mm vs 460 mm+15%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | Aluminium | Aluminium |
| Work area | ||
| Work area | 400 × 400 mm | 460 × 460 mm |
| Work area width (X) | 400 mm | 460 mm |
| Work area depth (Y) | 400 mm | 460 mm |
| Work area (surface) | 1,600 cm² | 2,116 cm² |
| Z travel | 76 mm | 80 mm |
| Speed & cutting | ||
| Max engraving / travel speed | — | 13 mm/s |
| Precision | ||
| Positioning accuracy | 0.1 mm | 0.05 mm |
| Closed-loop motors / servos | No | No |
| Linear rails | No | No |
| Ball screws | No | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Emergency stop button | Yes | — |
| Features | ||
| Rotary attachment support | — | Yes |
| Touchscreen / control panel | — | Yes |
| Offline engraving (no computer) | Yes | — |
| Laser module option (CNC) | No | Yes |
| Automatic tool changer | No | No |
| Tool length / Z probe | Yes | No |
| Connectivity & software | ||
| Connections | USB | USB |
| USB | Yes | Yes |
| Compatible software | — | Easel, Fusion 360, Vectric VCarve |
| LightBurn compatible | — | Yes |
| Controller / firmware | — | GRBL |
| File formats | — | NC, G-code |
| CNC milling | ||
| Spindle power | 75 W | 80 W |
| Max spindle speed | — | 30,000 rpm |
| Size & power | ||
| Width | 682 mm | 742 mm |
| Depth | 620 mm | 689 mm |
| Height | 343 mm | 413 mm |
| Weight | 14.8 kg | 15.4 kg |
| Rated power consumption | — | 120 W |
