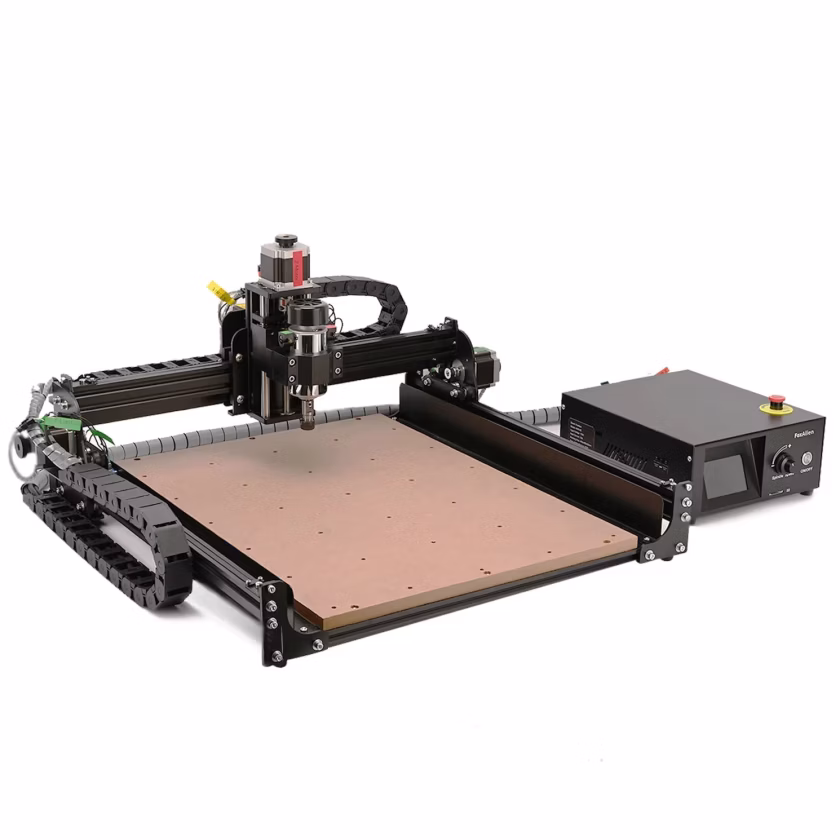

FoxAlien 4040-XE vs Genmitsu 4040-Pro
What 4040-XE does better (2) and where 4040-Pro wins (1) — every spec side by side.
Dimensions
Size comparison
4040-XE4040-Pro
| 4040-XE | 4040-Pro | Difference | |
|---|---|---|---|
| Height | 360 mm | 343 mm | +17 mm |
| Width | 760 mm | 682 mm | +78 mm |
| Depth | 620 mm | 620 mm | = |
Drawn to the same scale from the official dimensions (front and side).
Why is 4040-XE better than 4040-Pro?
- Spindle power300 W vs 75 W4×
- Laser module option (CNC)Yes · 4040-Pro: No
Why is 4040-Pro better than 4040-XE?
- Z travel65 mm vs 76 mm+17%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | — | Aluminium |
| Work area | ||
| Work area | 400 × 400 mm | 400 × 400 mm |
| Work area width (X) | 400 mm | 400 mm |
| Work area depth (Y) | 400 mm | 400 mm |
| Work area (surface) | 1,600 cm² | 1,600 cm² |
| Z travel | 65 mm | 76 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 33 mm/s | — |
| Precision | ||
| Positioning accuracy | 0.1 mm | 0.1 mm |
| Closed-loop motors / servos | — | No |
| Linear rails | — | No |
| Ball screws | — | No |
| Safety | ||
| Enclosed (fully covered) | — | No |
| Emergency stop button | Yes | Yes |
| Features | ||
| Touchscreen / control panel | Yes | — |
| Offline engraving (no computer) | Yes | Yes |
| Laser module option (CNC) | Yes | No |
| Automatic tool changer | — | No |
| Tool length / Z probe | Yes | Yes |
| Connectivity & software | ||
| Connections | USB | USB |
| USB | Yes | Yes |
| CNC milling | ||
| Spindle power | 300 W | 75 W |
| Size & power | ||
| Width | 760 mm | 682 mm |
| Depth | 620 mm | 620 mm |
| Height | 360 mm | 343 mm |
| Weight | — | 14.8 kg |
