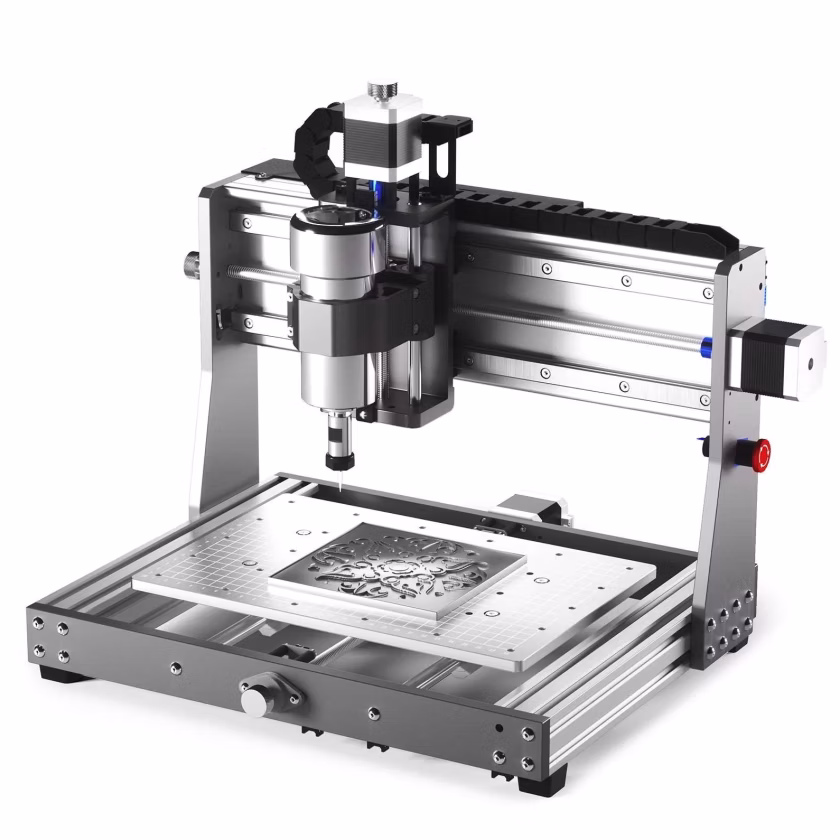

Genmitsu 3020-Pro Max V2 vs Genmitsu 4040-Pro
What 3020-Pro Max V2 does better (0) and where 4040-Pro wins (4) — every spec side by side.
vs
2.3Precision2.3
3.8Work area4.9
6.5Safety6.5
4.0Features & ease of use4.0
Why is 3020-Pro Max V2 better than 4040-Pro?
3020-Pro Max V2 has no measurable advantages in this pair.
Why is 4040-Pro better than 3020-Pro Max V2?
- Work area (surface)600 cm² vs 1,600 cm²2.7×
- Work area depth (Y)200 mm vs 400 mm2×
- Z travel72 mm vs 76 mm+6%
- Work area width (X)300 mm vs 400 mm+33%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | — | Aluminium |
| Work area | ||
| Work area | 300 × 200 mm | 400 × 400 mm |
| Work area width (X) | 300 mm | 400 mm |
| Work area depth (Y) | 200 mm | 400 mm |
| Work area (surface) | 600 cm² | 1,600 cm² |
| Z travel | 72 mm | 76 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 33 mm/s | — |
| Precision | ||
| Positioning accuracy | 0.1 mm | 0.1 mm |
| Closed-loop motors / servos | No | No |
| Linear rails | No | No |
| Ball screws | No | No |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Emergency stop button | Yes | Yes |
| Features | ||
| Offline engraving (no computer) | Yes | Yes |
| Laser module option (CNC) | No | No |
| Automatic tool changer | No | No |
| Tool length / Z probe | Yes | Yes |
| Connectivity & software | ||
| Connections | USB | USB |
| USB | Yes | Yes |
| CNC milling | ||
| Spindle power | — | 75 W |
| Size & power | ||
| Width | — | 682 mm |
| Depth | — | 620 mm |
| Height | — | 343 mm |
| Weight | — | 14.8 kg |
