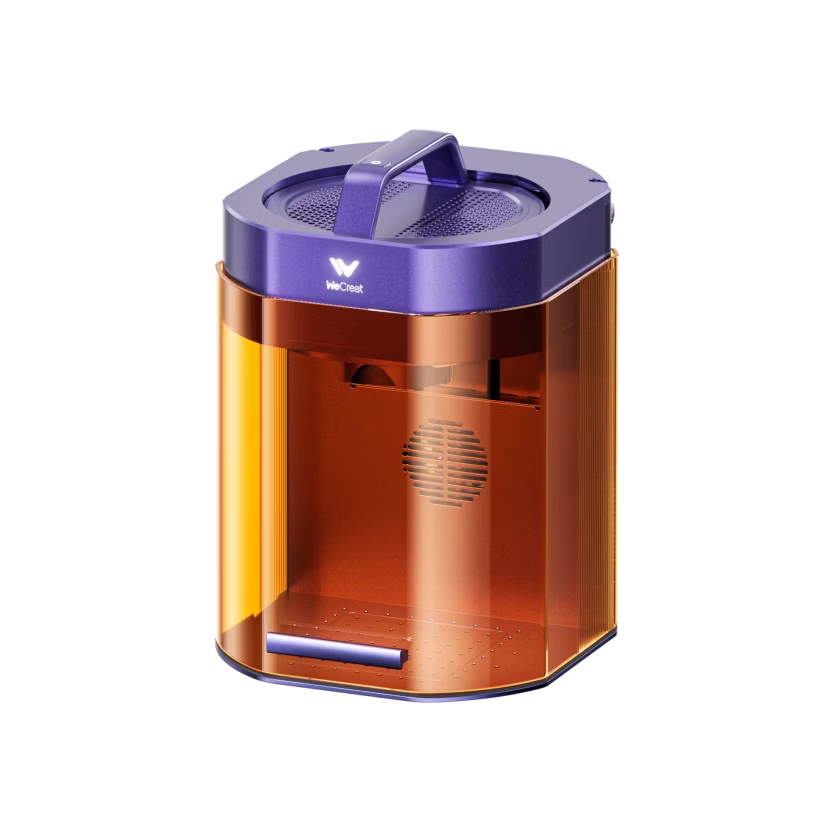

AtomStack M4 Pro vs WeCreat Lumos 10W
What M4 Pro does better (2) and where Lumos 10W wins (6) — every spec side by side.
Why is M4 Pro better than Lumos 10W?
- Weight2.8 kg vs 7 kg2.5×
- Max cutting depth – acrylic8 mm vs 6 mm+33%
Why is Lumos 10W better than M4 Pro?
- Work area (surface)100 cm² vs 135 cm²+35%
- Max cutting depth – wood / plywood (one pass)5 mm vs 8 mm+60%
- Built-in cameraNo · M4 Pro: Yes
- Two laser sourcesNo · M4 Pro: Yes
- Work area width (X)100 mm vs 116 mm+16%
- Work area depth (Y)100 mm vs 116 mm+16%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm), Infrared diode (1064 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | Yes |
| Laser power | ||
| Laser output power | — | 10 W |
| Second laser output power | — | 3 W |
| Work area | ||
| Work area | 100 × 100 mm | 116 × 116 mm |
| Work area width (X) | 100 mm | 116 mm |
| Work area depth (Y) | 100 mm | 116 mm |
| Work area (surface) | 100 cm² | 135 cm² |
| Max workpiece height | — | 100 mm |
| Speed & cutting | ||
| Max cutting depth – wood / plywood (one pass) | 5 mm | 8 mm |
| Max cutting depth – acrylic | 8 mm | 6 mm |
| Precision | ||
| Laser spot size | 0.03 mm | — |
| Positioning accuracy | — | 0.1 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | No | No |
| Features | ||
| Air assist | No | No |
| Built-in camera | No | Yes |
| Autofocus / auto height | Yes | Yes |
| Rotary attachment support | Yes | Yes |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| Phone app control | Yes | — |
| Compatible software | LightBurn | LightBurn, WeCreat MakeIt |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | — | 242 mm |
| Depth | — | 268 mm |
| Height | — | 312 mm |
| Weight | 2.8 kg | 7 kg |
| Input voltage | — | 100–240 V |
