- GE1 10W vs M4 Pro

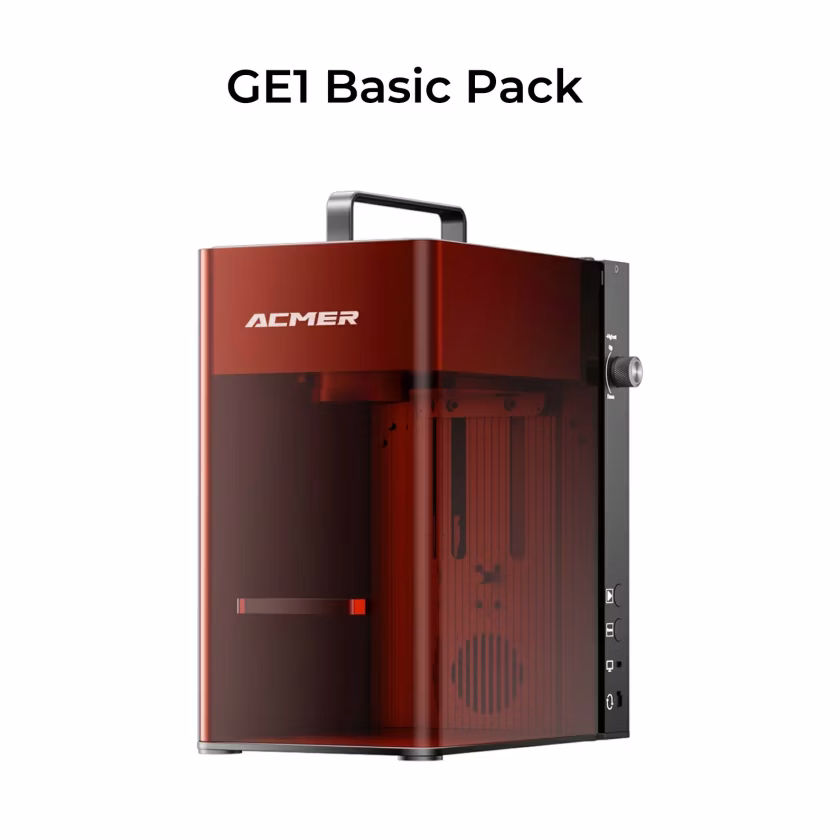

Acmer GE1 10W vs AtomStack M4 Pro
What GE1 10W does better (6) and where M4 Pro wins (0) — every spec side by side.
Why is GE1 10W better than M4 Pro?
- Enclosed (fully covered)Yes · M4 Pro: No
- Max cutting depth – wood / plywood (one pass)8 mm vs 5 mm+60%
- Work area (surface)110 cm² vs 100 cm²+10%
- Two laser sourcesYes · M4 Pro: No
- Work area width (X)105 mm vs 100 mm+5%
- Work area depth (Y)105 mm vs 100 mm+5%
Why is M4 Pro better than GE1 10W?
M4 Pro has no measurable advantages in this pair.
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm), Infrared diode (1064 nm) | Blue diode (≈455 nm) |
| Motion system | Galvo (scanning mirrors) | Gantry (XY rails) |
| Two laser sources | Yes | No |
| Laser power | ||
| Laser output power | 10 W | — |
| Second laser output power | 2 W | — |
| Work area | ||
| Work area | 105 × 105 mm | 100 × 100 mm |
| Work area width (X) | 105 mm | 100 mm |
| Work area depth (Y) | 105 mm | 100 mm |
| Work area (surface) | 110 cm² | 100 cm² |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max cutting depth – wood / plywood (one pass) | 8 mm | 5 mm |
| Max cutting depth – acrylic | — | 8 mm |
| Precision | ||
| Laser spot size | — | 0.03 mm |
| Safety | ||
| Enclosed (fully covered) | Yes | No |
| Flame / fire detection | No | No |
| Emergency stop button | Yes | — |
| Features | ||
| Air assist | No | No |
| Built-in camera | No | No |
| Autofocus / auto height | Yes | Yes |
| Rotary attachment support | Yes | Yes |
| Connectivity & software | ||
| Phone app control | — | Yes |
| Compatible software | LightBurn | LightBurn |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Weight | — | 2.8 kg |
