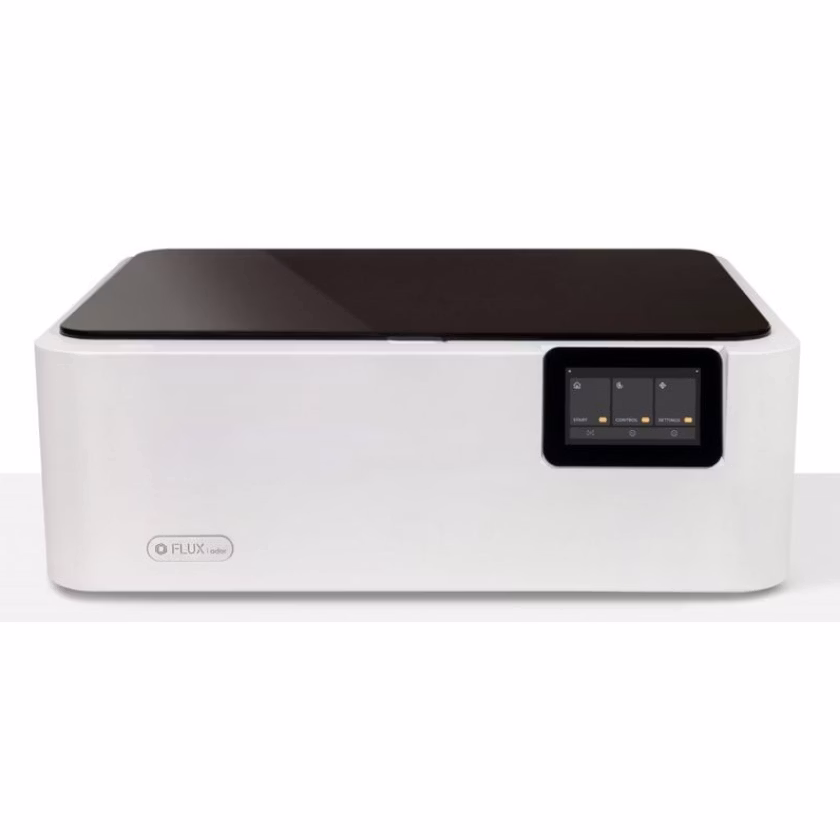

AtomStack M4 Pro vs FLUX Ador 10W
What M4 Pro does better (1) and where Ador 10W wins (4) — every spec side by side.
Why is M4 Pro better than Ador 10W?
- Weight2.8 kg vs 19 kg6.8×
Why is Ador 10W better than M4 Pro?
- Work area (surface)100 cm² vs 1,290 cm²12.9×
- Built-in cameraNo · M4 Pro: Yes
- Work area width (X)100 mm vs 430 mm4.3×
- Work area depth (Y)100 mm vs 300 mm3×
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | — |
| Laser power | ||
| Laser output power | — | 10 W |
| Work area | ||
| Work area | 100 × 100 mm | 430 × 300 mm |
| Work area width (X) | 100 mm | 430 mm |
| Work area depth (Y) | 100 mm | 300 mm |
| Work area (surface) | 100 cm² | 1,290 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | — | 400 mm/s |
| Max cutting depth – wood / plywood (one pass) | 5 mm | — |
| Max cutting depth – acrylic | 8 mm | — |
| Precision | ||
| Laser spot size | 0.03 mm | — |
| Safety | ||
| Enclosed (fully covered) | No | — |
| Flame / fire detection | No | — |
| Features | ||
| Air assist | No | — |
| Built-in camera | No | Yes |
| Autofocus / auto height | Yes | — |
| Rotary attachment support | Yes | — |
| Touchscreen / control panel | — | Yes |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi, Ethernet |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| Ethernet (LAN) | — | Yes |
| Phone app control | Yes | — |
| Compatible software | LightBurn | Beam Studio |
| LightBurn compatible | Yes | — |
| File formats | — | JPG, PNG, SVG, DXF, AI, PDF |
| Size & power | ||
| Width | — | 637 mm |
| Depth | — | 488 mm |
| Height | — | 226 mm |
| Weight | 2.8 kg | 19 kg |
