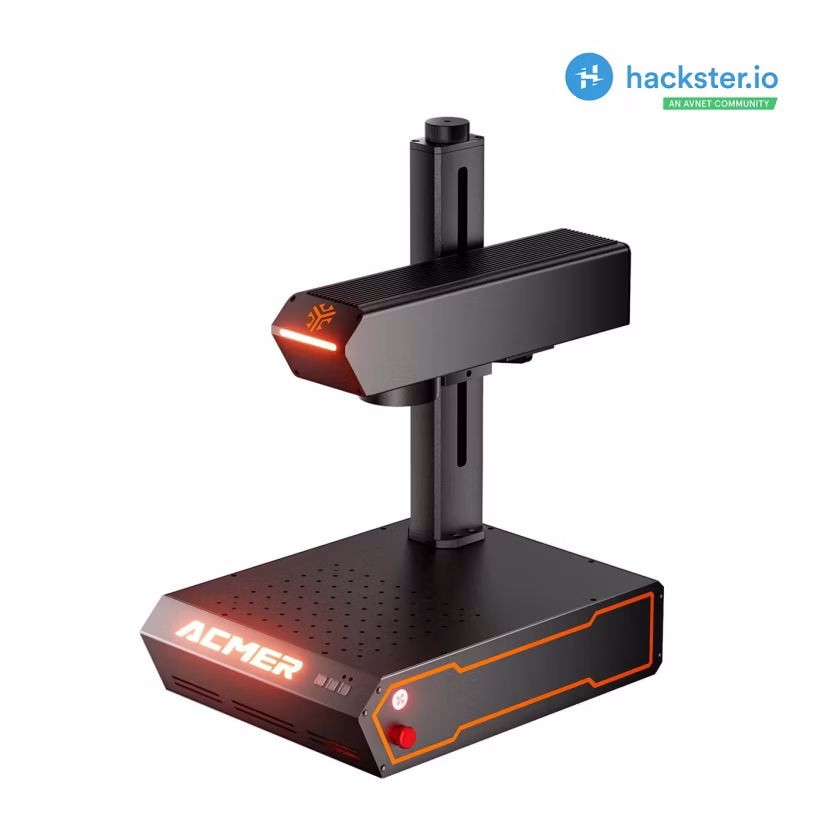

Acmer PM 50W vs OMTech Integrated 50W
What PM 50W does better (4) and where Integrated 50W wins (1) — every spec side by side.
vs
5.5Power & cutting5.5
4.9Speed7.6
7.8Work area5.1
4.7Safety7.3
5.6Features & ease of use3.2
Dimensions
Size comparison
PM 50WIntegrated 50W
| PM 50W | Integrated 50W | Difference | |
|---|---|---|---|
| Height | 610 mm | 550 mm | +60 mm |
| Width | 470 mm | 400 mm | +70 mm |
| Depth | 350 mm | 340 mm | +10 mm |
| Weight | 23 kg | 16.5 kg | +6.5 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is PM 50W better than Integrated 50W?
- Work area (surface)400 cm² vs 225 cm²+78%
- Autofocus / auto heightYes · Integrated 50W: No
- Work area width (X)200 mm vs 150 mm+33%
- Work area depth (Y)200 mm vs 150 mm+33%
Why is Integrated 50W better than PM 50W?
- Weight23 kg vs 16.5 kg+39%
Specifications
Side by side
| General | ||
| Laser sources | Fibre (1064 nm) | Fibre (1064 nm) |
| Motion system | Galvo (scanning mirrors) | Galvo (scanning mirrors) |
| Two laser sources | No | No |
| MOPA fibre source (adjustable pulse) | Yes | — |
| Wavelength | — | 1,064 nm |
| Frame material | — | Aluminium |
| Laser power | ||
| Laser output power | 50 W | 50 W |
| Work area | ||
| Work area | 200 × 200 mm | 150 × 150 mm |
| Work area width (X) | 200 mm | 150 mm |
| Work area depth (Y) | 200 mm | 150 mm |
| Work area (surface) | 400 cm² | 225 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | 10,000 mm/s | 10,008 mm/s |
| Precision | ||
| Positioning accuracy | — | 0.01 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Built-in fume filter / purifier | — | Yes |
| Features | ||
| Built-in camera | No | No |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | Yes | Yes |
| Touchscreen / control panel | — | Yes |
| Connectivity & software | ||
| Connections | — | USB |
| USB | — | Yes |
| Compatible software | LightBurn | LightBurn |
| LightBurn compatible | Yes | Yes |
| File formats | — | BMP, GIF, JPG, DXF, DST, AI |
| Size & power | ||
| Width | 470 mm | 400 mm |
| Depth | 350 mm | 340 mm |
| Height | 610 mm | 550 mm |
| Weight | 23 kg | 16.5 kg |
| Rated power consumption | — | 50 W |
