Two TreesDiode laser engraver

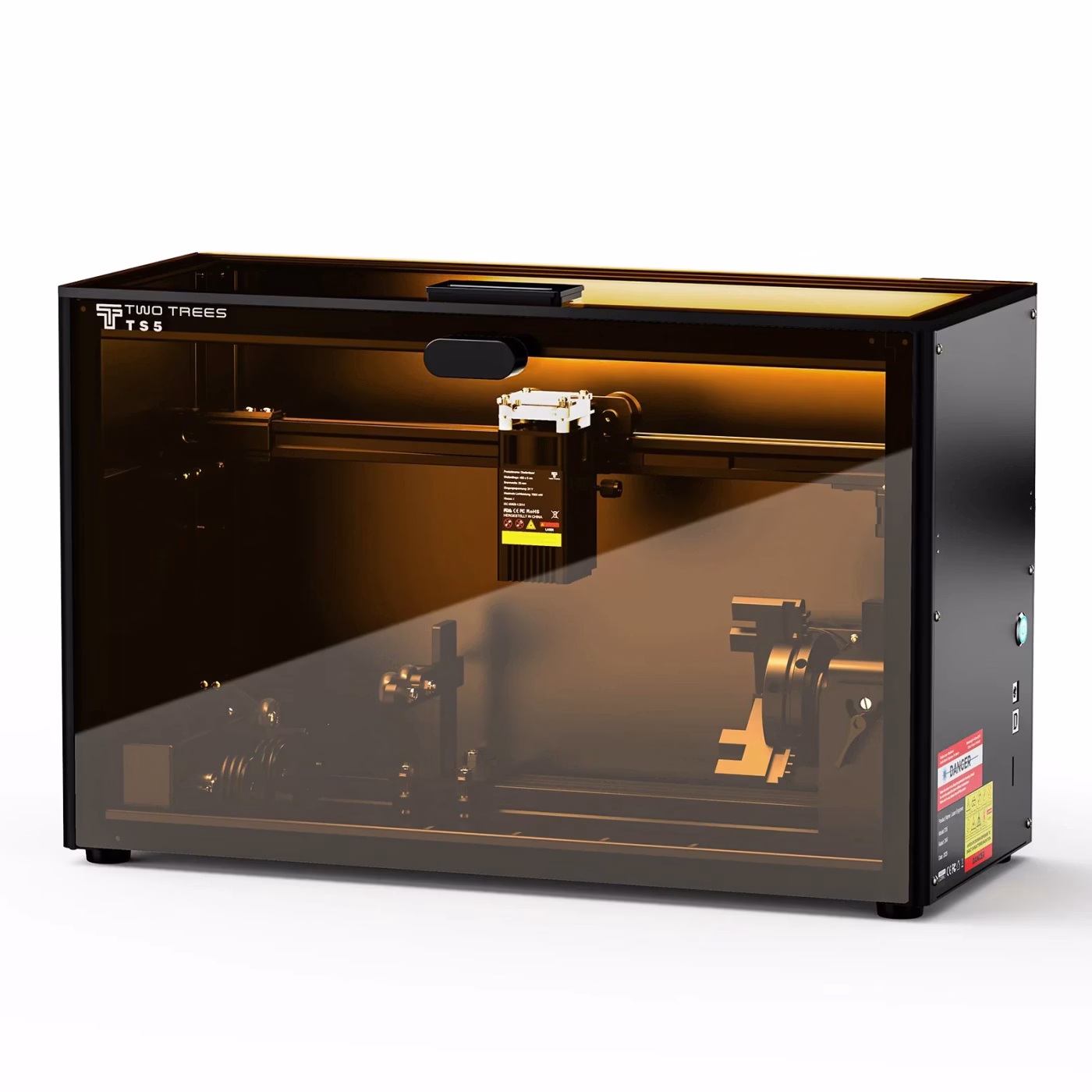

Two Trees TS5 7W
Two Trees TS5 7W is a diode laser engraver released in 2025. Key specs: laser sources Blue diode (≈455 nm), laser output power 7 W, work area 249 × 123 mm, max engraving / travel speed 167 mm/s.
4.6Score
Power & cutting4.4
Speed3.5
Precision3.4
Work area4.1
Safety9.6
Features & ease of use4.0
price rangeUS$370–470
- Year
- 2025
- Brand
Two Trees- Popularity
- #311 of 406
Blue diode (≈455 nm)Laser sources
7 WLaser output power
249 × 123 mmWork area
167 mm/sMax engraving / travel speed
0.1 mmLaser spot size
YesEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2025
Laser output power · 7 WBottom 25%
Max engraving / travel speed · 167 mm/sBottom 23%
Laser spot size · 0.1 mmBottom 37%
Compared with diode laser engravers released in 2025. Bars show the share of models it beats.
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 450 nm
Laser power
- Laser output power
- 7 W
Work area
- Work area
- 249 × 123 mm
- Work area width (X)
- 249 mm
- Work area depth (Y)
- 123 mm
- Work area (surface)
- 306 cm²
Speed & cutting
- Max engraving / travel speed
- 167 mm/s
Precision
- Laser spot size
- 0.1 mm
- Positioning accuracy
- 0.1 mm
Safety
- Enclosed (fully covered)
- Yes
- Flame / fire detection
- No
- Exhaust fan
- Yes
Features
- Air assist
- No
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
Connectivity & software
- Connections
- USB, Wi-Fi, Bluetooth, SD / USB drive
- Wi-Fi
- Yes
- USB
- Yes
- Bluetooth
- Yes
- SD / TF card
- Yes
- LightBurn compatible
- Yes
Size & power
- Width
- 480 mm
- Depth
- 200 mm
- Height
- 298 mm
- Weight
- 9.1 kg
- Input voltage
- 100–240 V
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
