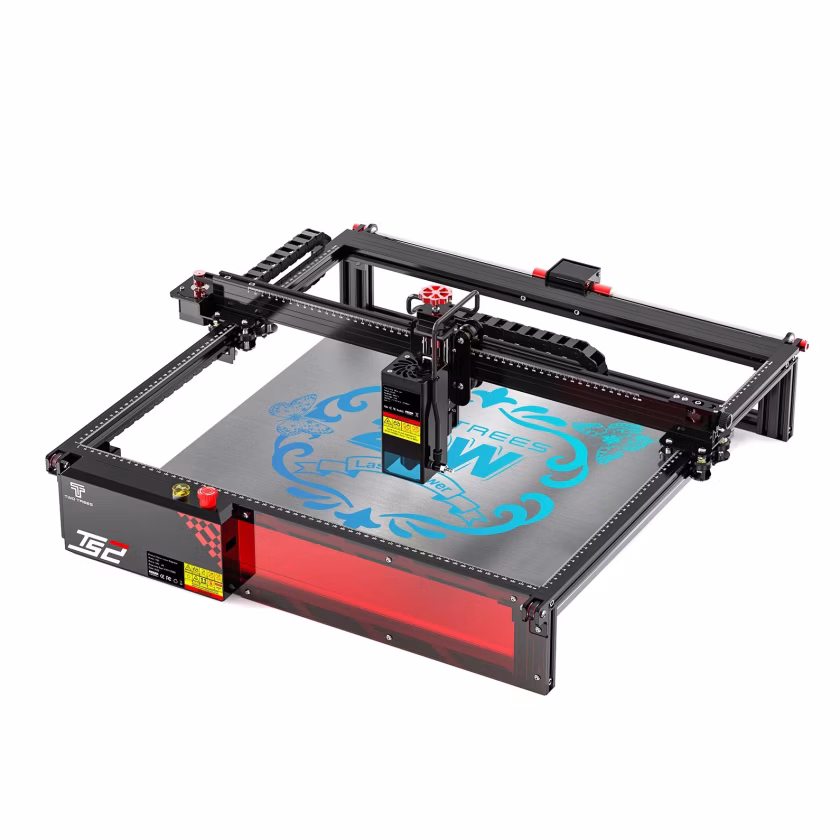

Two Trees TS2 10W vs Two Trees TS5 7W
What TS2 10W does better (6) and where TS5 7W wins (2) — every spec side by side.
Why is TS2 10W better than TS5 7W?
- Work area (surface)1,681 cm² vs 306 cm²5.5×
- Laser output power10 W vs 7 W+43%
- Air assistYes · TS5 7W: No
- Autofocus / auto heightYes · TS5 7W: No
- Work area depth (Y)410 mm vs 123 mm3.3×
- Work area width (X)410 mm vs 249 mm+65%
Why is TS5 7W better than TS2 10W?
- Enclosed (fully covered)No · TS2 10W: Yes
- Positioning accuracy0.21 mm vs 0.1 mm2.1×
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | — | 450 nm |
| Laser power | ||
| Laser output power | 10 W | 7 W |
| Work area | ||
| Work area | 410 × 410 mm | 249 × 123 mm |
| Work area width (X) | 410 mm | 249 mm |
| Work area depth (Y) | 410 mm | 123 mm |
| Work area (surface) | 1,681 cm² | 306 cm² |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | — | 167 mm/s |
| Precision | ||
| Laser spot size | — | 0.1 mm |
| Positioning accuracy | 0.21 mm | 0.1 mm |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Flame / fire detection | No | No |
| Exhaust fan | — | Yes |
| Features | ||
| Air assist | Yes | No |
| Built-in camera | No | No |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | Yes | Yes |
| Offline engraving (no computer) | Yes | — |
| Connectivity & software | ||
| Connections | USB, Wi-Fi, SD / USB drive | USB, Wi-Fi, Bluetooth, SD / USB drive |
| Wi-Fi | Yes | Yes |
| USB | Yes | Yes |
| Bluetooth | — | Yes |
| SD / TF card | Yes | Yes |
| Phone app control | Yes | — |
| Compatible software | LightBurn, LaserGRBL | LightBurn |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | — | 480 mm |
| Depth | — | 200 mm |
| Height | — | 298 mm |
| Weight | — | 9.1 kg |
| Input voltage | — | 100–240 V |
