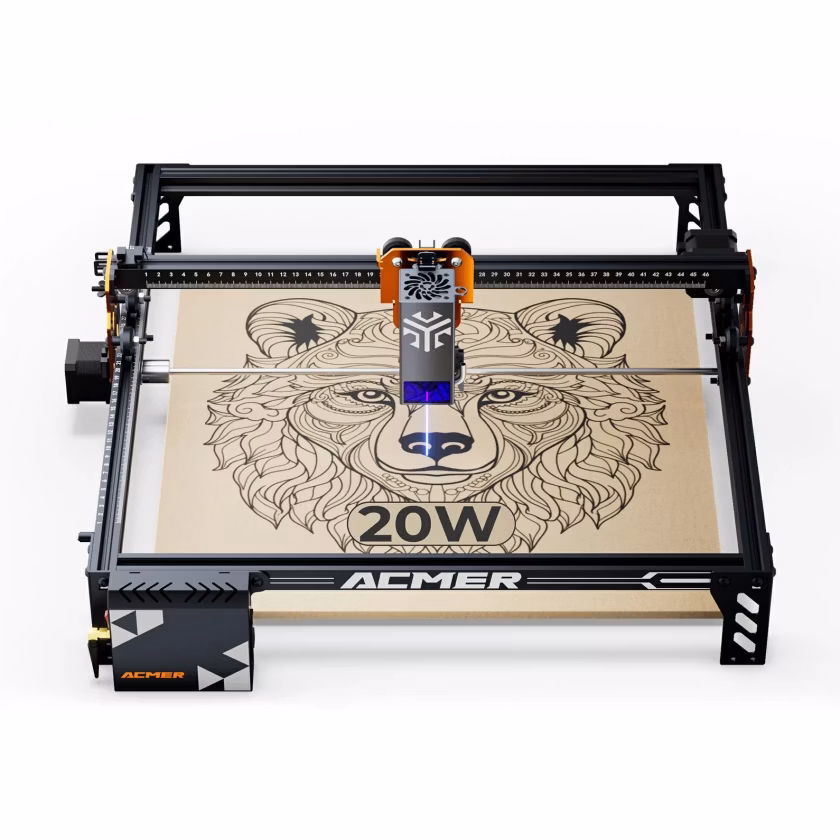

Acmer P1 S pro 20W vs Two Trees TS2 10W
What P1 S pro 20W does better (1) and where TS2 10W wins (4) — every spec side by side.
vs
7.7Power & cutting5.7
6.2Work area8.5
3.2Safety3.2
5.7Features & ease of use7.9
Why is P1 S pro 20W better than TS2 10W?
- Laser output power20 W vs 10 W2×
Why is TS2 10W better than P1 S pro 20W?
- Autofocus / auto heightNo · P1 S pro 20W: Yes
- Work area (surface)1,406 cm² vs 1,681 cm²+20%
- Work area depth (Y)370 mm vs 410 mm+11%
- Work area width (X)380 mm vs 410 mm+8%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Laser power | ||
| Laser output power | 20 W | 10 W |
| Work area | ||
| Work area | 380 × 370 mm | 410 × 410 mm |
| Work area width (X) | 380 mm | 410 mm |
| Work area depth (Y) | 370 mm | 410 mm |
| Work area (surface) | 1,406 cm² | 1,681 cm² |
| Work-area extension kit | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 167 mm/s | — |
| Precision | ||
| Positioning accuracy | — | 0.21 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | No | No |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | No | Yes |
| Rotary attachment support | Yes | Yes |
| Offline engraving (no computer) | — | Yes |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi, SD / USB drive |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| SD / TF card | — | Yes |
| Phone app control | — | Yes |
| Compatible software | LightBurn | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | JPG, PNG, BMP, GIF, SVG | — |
