GweikeFibre laser marker

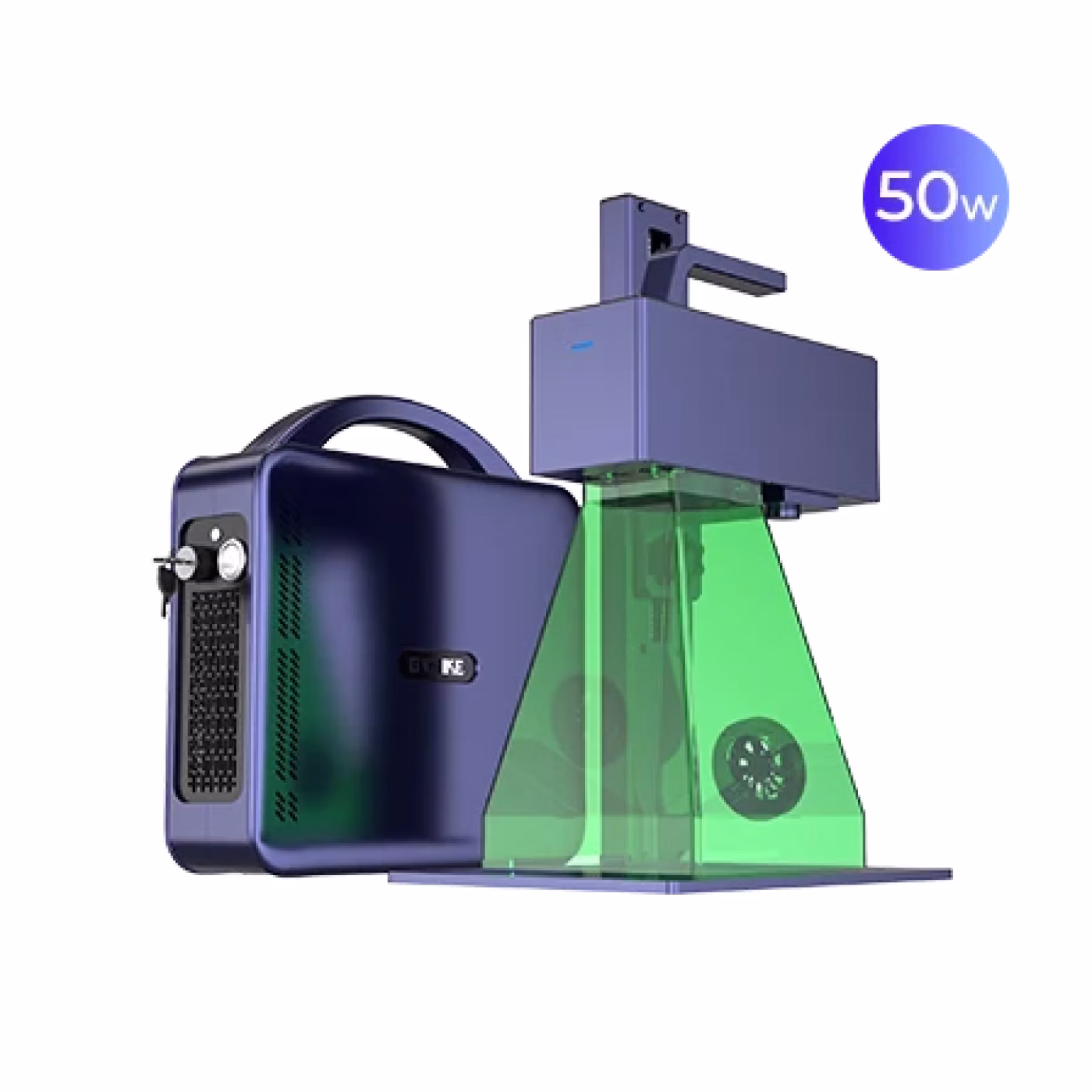

Gweike G2 Max 50W
Gweike G2 Max 50W is a fibre laser marker released in 2024. Key specs: laser sources Fibre (1064 nm), laser output power 50 W, work area 150 × 150 mm, max engraving / travel speed 15,000 mm/s.
8.5Score
Power & cutting5.5
Speed8.6
Precision8.4
Work area5.1
Safety8.6
Features & ease of use2.5
price rangeUS$2,200–2,750
- Year
- 2024
- Brand
Gweike- Popularity
- #178 of 406
Fibre (1064 nm)Laser sources
50 WLaser output power
150 × 150 mmWork area
15,000 mm/sMax engraving / travel speed
YesEnclosed (fully covered)
Spec guide
How it ranks among fibre laser markers of 2024
Compared with fibre laser markers released in 2024. Bars show the share of models it beats.
compared with other fibre laser markers
Why is G2 Max 50W a good choice?
Max engraving / travel speed: 15,000 mm/sbetter than 84% of fibre laser markers
Positioning accuracy: 0.001 mmbetter than 84% of fibre laser markers
Weight: 6.5 kgbetter than 91% of fibre laser markers
Specifications
Full specifications
General
- Motion system
- Galvo (scanning mirrors)
- Two laser sources
- No
- Wavelength
- 1,064 nm
Laser power
- Laser output power
- 50 W
Work area
- Work area
- 150 × 150 mm
- Work area width (X)
- 150 mm
- Work area depth (Y)
- 150 mm
- Work area (surface)
- 225 cm²
Speed & cutting
- Max engraving / travel speed
- 15,000 mm/s
Precision
- Positioning accuracy
- 0.001 mm
Safety
- Enclosed (fully covered)
- Yes
- Emergency stop button
- Yes
- Laser shield / filter cover
- Yes
Features
- Built-in camera
- No
- Autofocus / auto height
- No
Connectivity & software
- Connections
- USB, Bluetooth
- USB
- Yes
- Bluetooth
- Yes
- LightBurn compatible
- Yes
Size & power
- Width
- 260 mm
- Depth
- 440 mm
- Height
- 505 mm
- Weight
- 6.5 kg
- Rated power consumption
- 120 W
- Input voltage
- 110–240 V
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
