CloudrayNewUV laser engraver

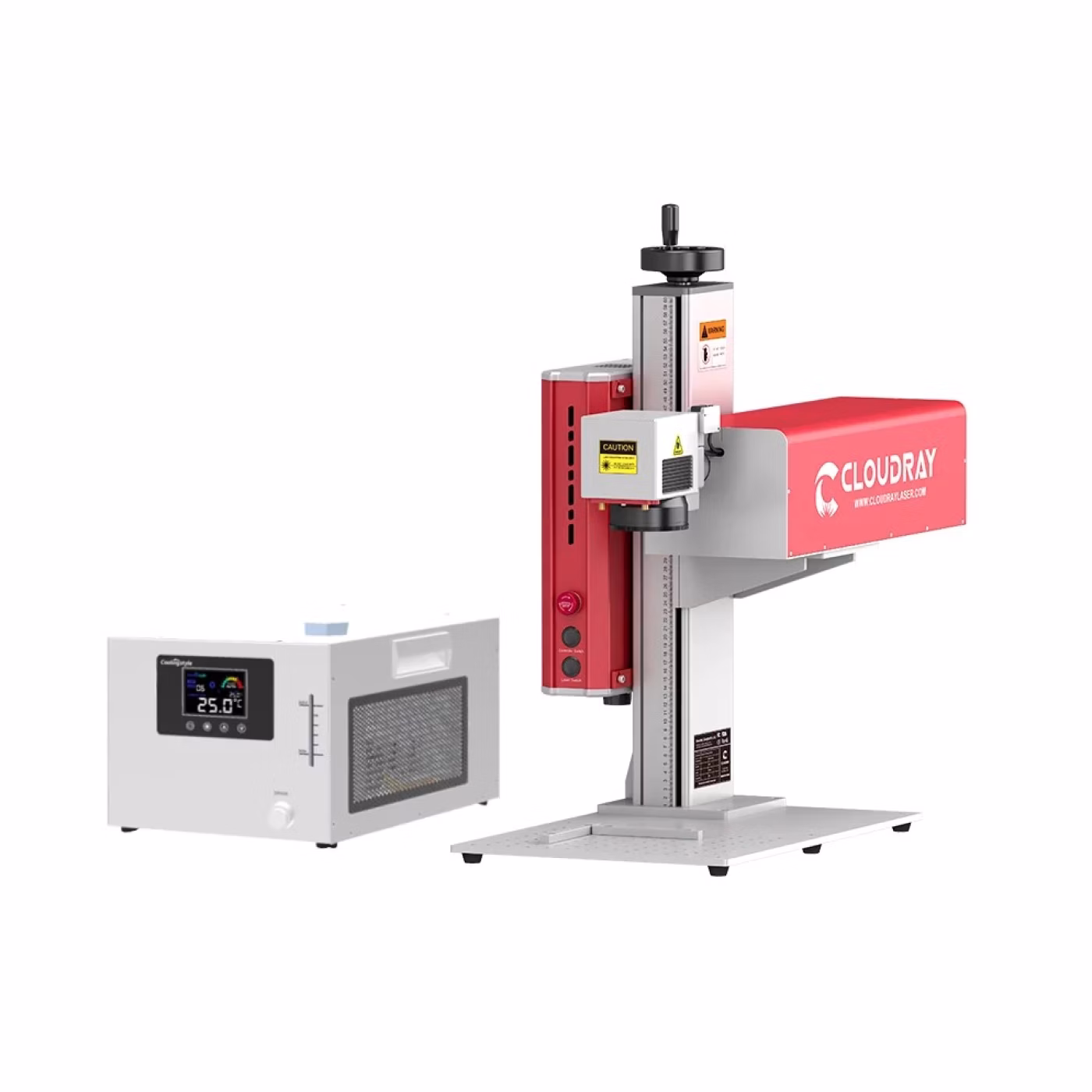

Cloudray TR 5W
Cloudray TR 5W is an UV laser engraver released in 2026. Key specs: laser sources UV (355 nm), laser output power 5 W, work area 50 × 50 mm, max engraving / travel speed 15,000 mm/s.
3.7Score
Power & cutting3.2
Speed6.6
Precision3.3
Work area2.8
Safety8.3
Features & ease of use7.1
price rangeUS$4,400–5,500
- Year
- 2026
- Brand
Cloudray- Popularity
- #98 of 406
UV (355 nm)Laser sources
5 WLaser output power
50 × 50 mmWork area
15,000 mm/sMax engraving / travel speed
0.1 mmLaser spot size
NoEnclosed (fully covered)
Spec guide
How it ranks among UV laser engravers of 2026
Laser output power · 5 WBottom 5%
Max engraving / travel speed · 15,000 mm/sTop 13%
Laser spot size · 0.1 mmBottom 37%
Compared with UV laser engravers released in 2026. Bars show the share of models it beats.
Specifications
Full specifications
General
- Motion system
- Galvo (scanning mirrors)
- Two laser sources
- No
- Wavelength
- 355 nm
Laser power
- Laser output power
- 5 W
Work area
- Work area
- 50 × 50 mm
- Work area width (X)
- 50 mm
- Work area depth (Y)
- 50 mm
- Work area (surface)
- 25 cm²
Speed & cutting
- Max engraving / travel speed
- 15,000 mm/s
Precision
- Laser spot size
- 0.1 mm
Safety
- Enclosed (fully covered)
- No
- Emergency stop button
- Yes
Features
- Built-in camera
- No
- Autofocus / auto height
- Yes
- Rotary attachment support
- Yes
- Water cooling
- Yes
Size & power
- Width
- 350 mm
- Depth
- 636 mm
- Height
- 638 mm
- Rated power consumption
- 675 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
