CloudrayFibre laser marker

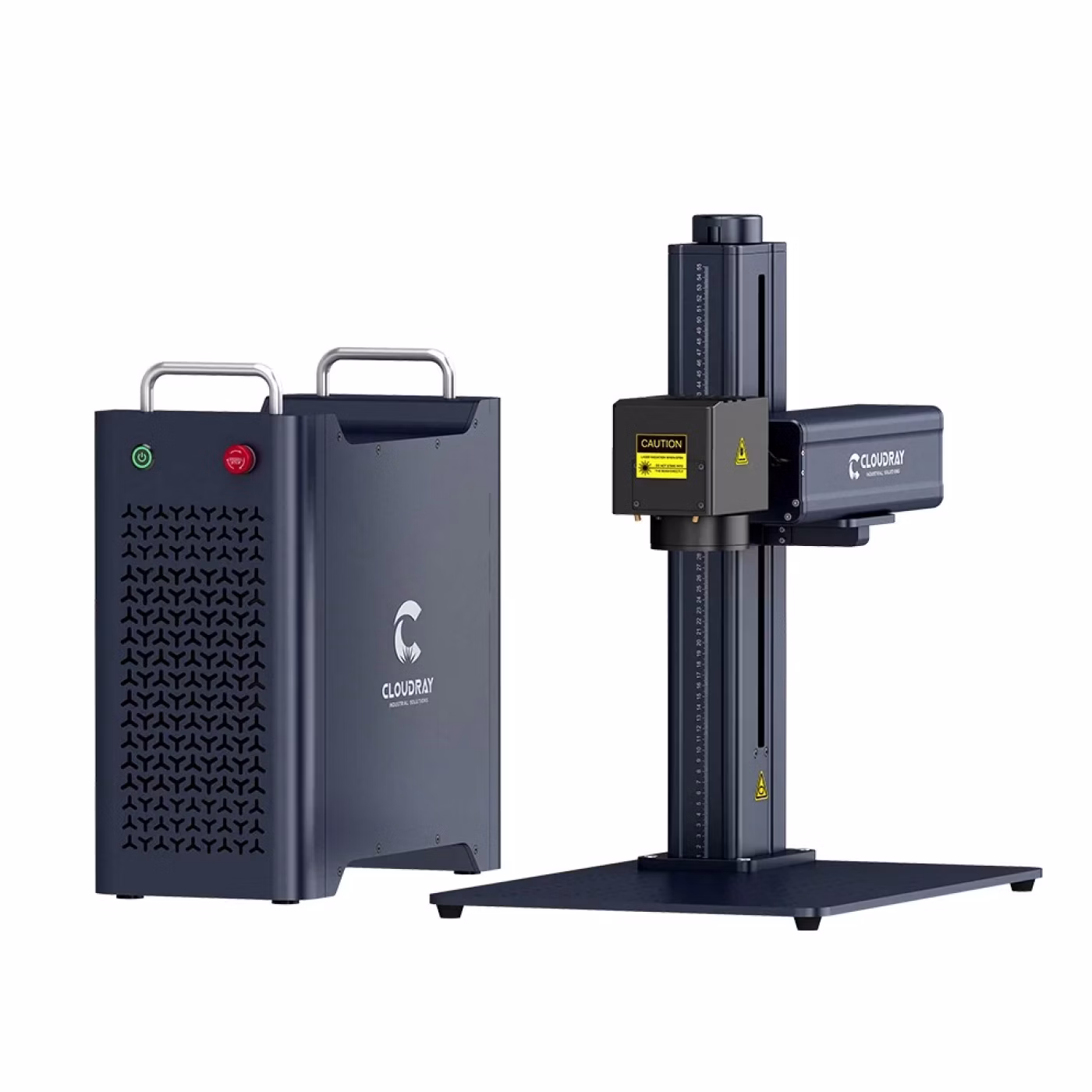

Cloudray GM 100W
Cloudray GM 100W is a fibre laser marker released in 2025. Key specs: laser sources Fibre (1064 nm), laser output power 100 W, work area 110 × 110 mm, max engraving / travel speed 15,000 mm/s.
7.7Score
Power & cutting8.9
Speed8.6
Work area3.0
Safety4.7
Features & ease of use5.6
price rangeUS$7,100–8,800
- Year
- 2025
- Brand
Cloudray- Popularity
- #181 of 406
Fibre (1064 nm)Laser sources
100 WLaser output power
110 × 110 mmWork area
15,000 mm/sMax engraving / travel speed
NoEnclosed (fully covered)
Spec guide
How it ranks among fibre laser markers of 2025
Compared with fibre laser markers released in 2025. Bars show the share of models it beats.
compared with other fibre laser markers
Why is GM 100W a good choice?
Laser output power: 100 Wbetter than 88% of fibre laser markers
Max engraving / travel speed: 15,000 mm/sbetter than 84% of fibre laser markers
Weak points
Work area (surface): 121 cm²worse than 100% of fibre laser markers
Specifications
Full specifications
General
- Motion system
- Galvo (scanning mirrors)
- Two laser sources
- No
- MOPA fibre source (adjustable pulse)
- Yes
- Wavelength
- 1,064 nm
Laser power
- Laser output power
- 100 W
Work area
- Work area
- 110 × 110 mm
- Work area width (X)
- 110 mm
- Work area depth (Y)
- 110 mm
- Work area (surface)
- 121 cm²
Speed & cutting
- Max engraving / travel speed
- 15,000 mm/s
Safety
- Enclosed (fully covered)
- No
Features
- Built-in camera
- No
- Autofocus / auto height
- Yes
- Rotary attachment support
- Yes
- Water cooling
- Yes
Connectivity & software
- Connections
- USB
- USB
- Yes
- LightBurn compatible
- Yes
Size & power
- Rated power consumption
- 615 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
Compare
Compare GM 100W with
vs
Cloudray GM 100WvsMonport GPro Vision Split MOPA 200W
7.78.6
vs
Cloudray GM 100WvsMonport GPro Vision Split MOPA 100W
7.78.2
vs

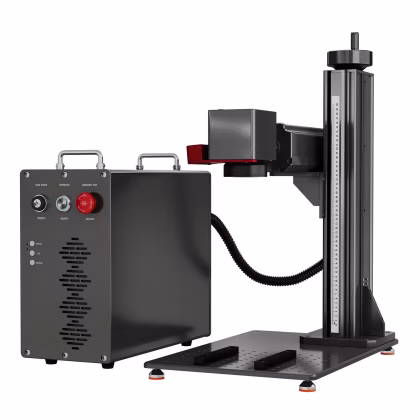

Cloudray GM 100WvsMonport GPro Vision Split MOPA 60W
