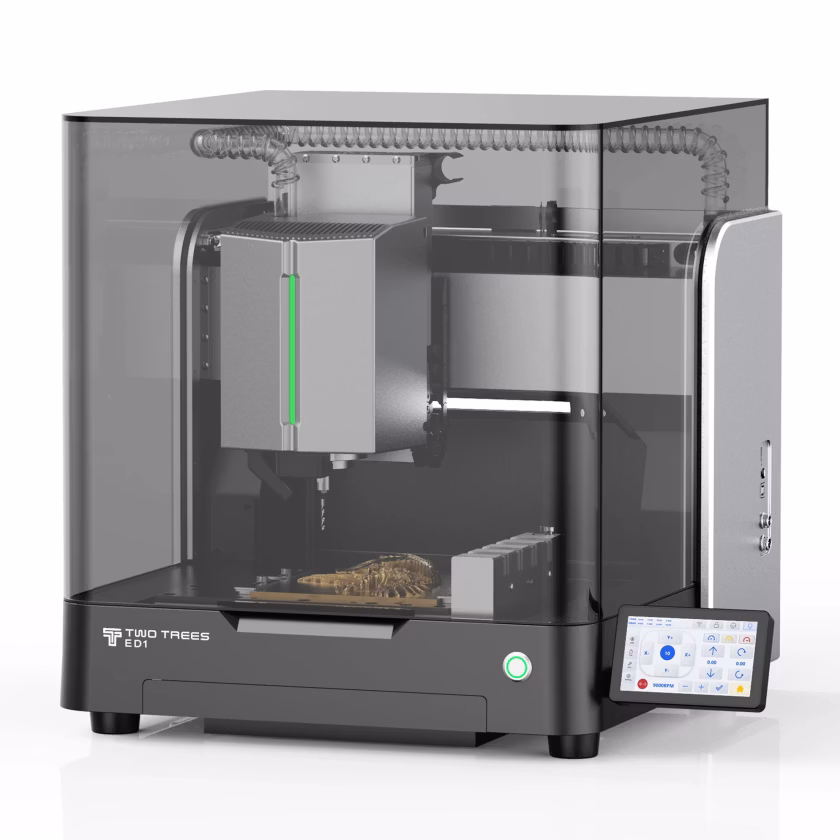

FoxAlien XE-Ultra vs Two Trees ED1
What XE-Ultra does better (5) and where ED1 wins (3) — every spec side by side.
Why is XE-Ultra better than ED1?
- Work area (surface)7,022 cm² vs 600 cm²11.7×
- Max engraving / travel speed83 mm/s vs 50 mm/s+66%
- Closed-loop motors / servosYes · ED1: No
- Work area width (X)838 mm vs 300 mm2.8×
- Work area depth (Y)838 mm vs 200 mm4.2×
Why is ED1 better than XE-Ultra?
- Enclosed (fully covered)No · XE-Ultra: Yes
- Automatic tool changerNo · XE-Ultra: Yes
- Laser module option (CNC)No · XE-Ultra: Yes
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | — | Aluminium |
| Work area | ||
| Work area | 838 × 838 mm | 300 × 200 mm |
| Work area width (X) | 838 mm | 300 mm |
| Work area depth (Y) | 838 mm | 200 mm |
| Work area (surface) | 7,022 cm² | 600 cm² |
| Z travel | 120 mm | 120 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 83 mm/s | 50 mm/s |
| Precision | ||
| Positioning accuracy | — | 0.01 mm |
| Closed-loop motors / servos | Yes | No |
| Linear rails | Yes | Yes |
| Ball screws | Yes | Yes |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Lid interlock | — | Yes |
| Features | ||
| Built-in camera | — | Yes |
| Rotary attachment support | — | Yes |
| Touchscreen / control panel | — | Yes |
| Laser module option (CNC) | No | Yes |
| Automatic tool changer | No | Yes |
| Tool length / Z probe | Yes | Yes |
| Connectivity & software | ||
| Connections | USB | Wi-Fi |
| Wi-Fi | — | Yes |
| USB | Yes | Yes |
| SD / TF card | — | Yes |
| Compatible software | — | Easel, Fusion 360 |
| Controller / firmware | — | GRBL |
| File formats | — | NC, G-code |
| CNC milling | ||
| Spindle power | — | 600 W |
| Max spindle speed | — | 18,000 rpm |
| Size & power | ||
| Width | — | 630 mm |
| Depth | — | 510 mm |
| Height | — | 525 mm |
| Weight | — | 38 kg |
| Rated power consumption | — | 240 W |
| Input voltage | — | 200–240 V |
