- PRONAX Forge vs ED1

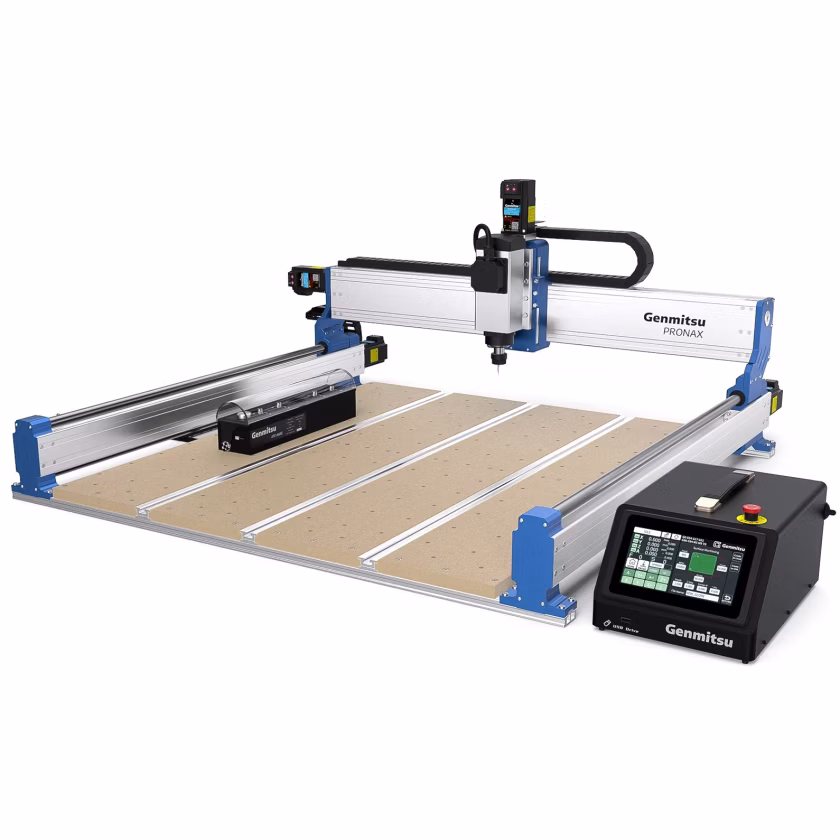

Genmitsu PRONAX Forge vs Two Trees ED1
What PRONAX Forge does better (6) and where ED1 wins (3) — every spec side by side.
vs
9.1Power & cutting6.5
9.2Speed4.8
8.5Precision9.5
9.0Work area5.4
6.5Safety8.9
9.0Features & ease of use9.7
Dimensions
Size comparison
PRONAX ForgeED1
| PRONAX Forge | ED1 | Difference | |
|---|---|---|---|
| Height | 510 mm | 525 mm | −15 mm |
| Width | 968 mm | 630 mm | +338 mm |
| Depth | 1,225 mm | 510 mm | +715 mm |
| Weight | 62.3 kg | 38 kg | +24.3 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is PRONAX Forge better than ED1?
- Work area (surface)5,400 cm² vs 600 cm²9×
- Spindle power2,200 W vs 600 W3.7×
- Max engraving / travel speed104 mm/s vs 50 mm/s2.1×
- Closed-loop motors / servosYes · ED1: No
- Work area depth (Y)900 mm vs 200 mm4.5×
- Work area width (X)600 mm vs 300 mm2×
Why is ED1 better than PRONAX Forge?
- Enclosed (fully covered)No · PRONAX Forge: Yes
- Laser module option (CNC)No · PRONAX Forge: Yes
- Weight62.3 kg vs 38 kg+64%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | Steel | Aluminium |
| Work area | ||
| Work area | 600 × 900 mm | 300 × 200 mm |
| Work area width (X) | 600 mm | 300 mm |
| Work area depth (Y) | 900 mm | 200 mm |
| Work area (surface) | 5,400 cm² | 600 cm² |
| Z travel | 118 mm | 120 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 104 mm/s | 50 mm/s |
| Precision | ||
| Positioning accuracy | — | 0.01 mm |
| Closed-loop motors / servos | Yes | No |
| Linear rails | Yes | Yes |
| Ball screws | Yes | Yes |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Emergency stop button | Yes | — |
| Lid interlock | — | Yes |
| Features | ||
| Built-in camera | — | Yes |
| Rotary attachment support | — | Yes |
| Touchscreen / control panel | — | Yes |
| Offline engraving (no computer) | Yes | — |
| Laser module option (CNC) | No | Yes |
| Automatic tool changer | Yes | Yes |
| Tool length / Z probe | Yes | Yes |
| Connectivity & software | ||
| Connections | USB | Wi-Fi |
| Wi-Fi | — | Yes |
| USB | Yes | Yes |
| SD / TF card | — | Yes |
| Compatible software | Easel, Candle, UGS | Easel, Fusion 360 |
| Controller / firmware | GRBL | GRBL |
| File formats | — | NC, G-code |
| CNC milling | ||
| Spindle power | 2,200 W | 600 W |
| Max spindle speed | — | 18,000 rpm |
| Size & power | ||
| Width | 968 mm | 630 mm |
| Depth | 1,225 mm | 510 mm |
| Height | 510 mm | 525 mm |
| Weight | 62.3 kg | 38 kg |
| Rated power consumption | — | 240 W |
| Input voltage | 110–230 V | 200–240 V |
