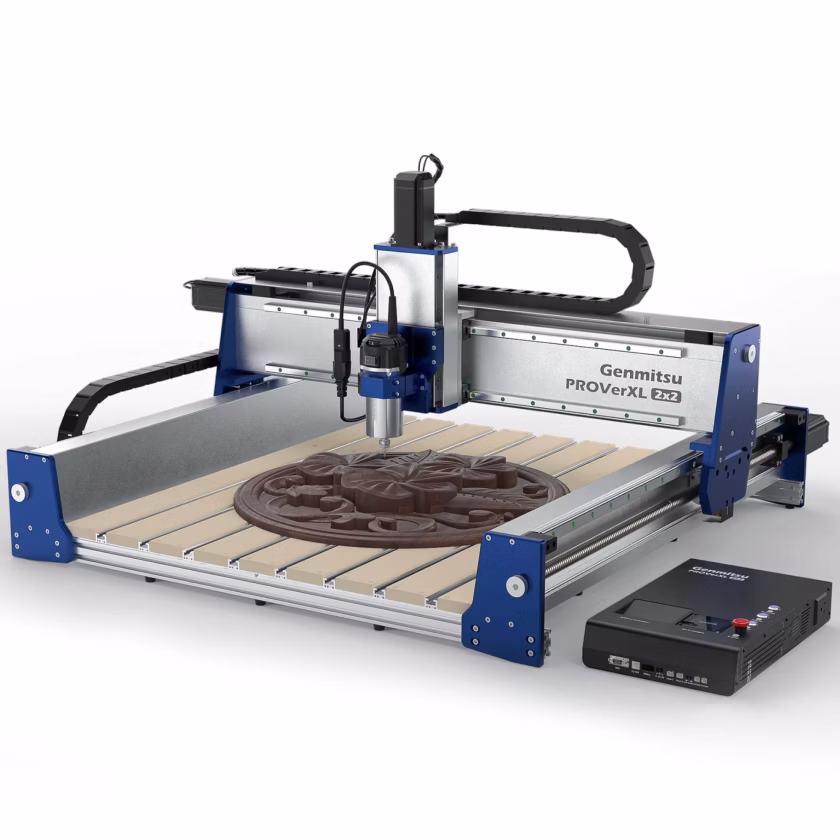

Genmitsu PROVerXL vs Two Trees ED1
What PROVerXL does better (6) and where ED1 wins (4) — every spec side by side.
Dimensions
Size comparison
PROVerXLED1
| PROVerXL | ED1 | Difference | |
|---|---|---|---|
| Height | 617 mm | 525 mm | +92 mm |
| Width | 1,161 mm | 630 mm | +531 mm |
| Depth | 1,142 mm | 510 mm | +632 mm |
| Weight | 90 kg | 38 kg | +52 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is PROVerXL better than ED1?
- Work area (surface)4,610 cm² vs 600 cm²7.7×
- Max engraving / travel speed83 mm/s vs 50 mm/s+66%
- Closed-loop motors / servosYes · ED1: No
- Spindle power710 W vs 600 W+18%
- Work area depth (Y)679 mm vs 200 mm3.4×
- Work area width (X)679 mm vs 300 mm2.3×
Why is ED1 better than PROVerXL?
- Enclosed (fully covered)No · PROVerXL: Yes
- Automatic tool changerNo · PROVerXL: Yes
- Weight90 kg vs 38 kg2.4×
- Z travel113 mm vs 120 mm+6%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | Steel | Aluminium |
| Work area | ||
| Work area | 679 × 679 mm | 300 × 200 mm |
| Work area width (X) | 679 mm | 300 mm |
| Work area depth (Y) | 679 mm | 200 mm |
| Work area (surface) | 4,610 cm² | 600 cm² |
| Z travel | 113 mm | 120 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 83 mm/s | 50 mm/s |
| Precision | ||
| Positioning accuracy | — | 0.01 mm |
| Closed-loop motors / servos | Yes | No |
| Linear rails | Yes | Yes |
| Ball screws | Yes | Yes |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Emergency stop button | Yes | — |
| Lid interlock | — | Yes |
| Features | ||
| Built-in camera | — | Yes |
| Rotary attachment support | Yes | Yes |
| Touchscreen / control panel | — | Yes |
| Offline engraving (no computer) | Yes | — |
| Water cooling | Yes | — |
| Laser module option (CNC) | Yes | Yes |
| Automatic tool changer | No | Yes |
| Tool length / Z probe | Yes | Yes |
| Connectivity & software | ||
| Connections | Wi-Fi | Wi-Fi |
| Wi-Fi | Yes | Yes |
| USB | — | Yes |
| SD / TF card | — | Yes |
| Phone app control | Yes | — |
| Compatible software | Candle, UGS | Easel, Fusion 360 |
| Controller / firmware | GRBL | GRBL |
| File formats | — | NC, G-code |
| CNC milling | ||
| Spindle power | 710 W | 600 W |
| Max spindle speed | — | 18,000 rpm |
| Size & power | ||
| Width | 1,161 mm | 630 mm |
| Depth | 1,142 mm | 510 mm |
| Height | 617 mm | 525 mm |
| Weight | 90 kg | 38 kg |
| Rated power consumption | — | 240 W |
| Input voltage | 110–230 V | 200–240 V |
