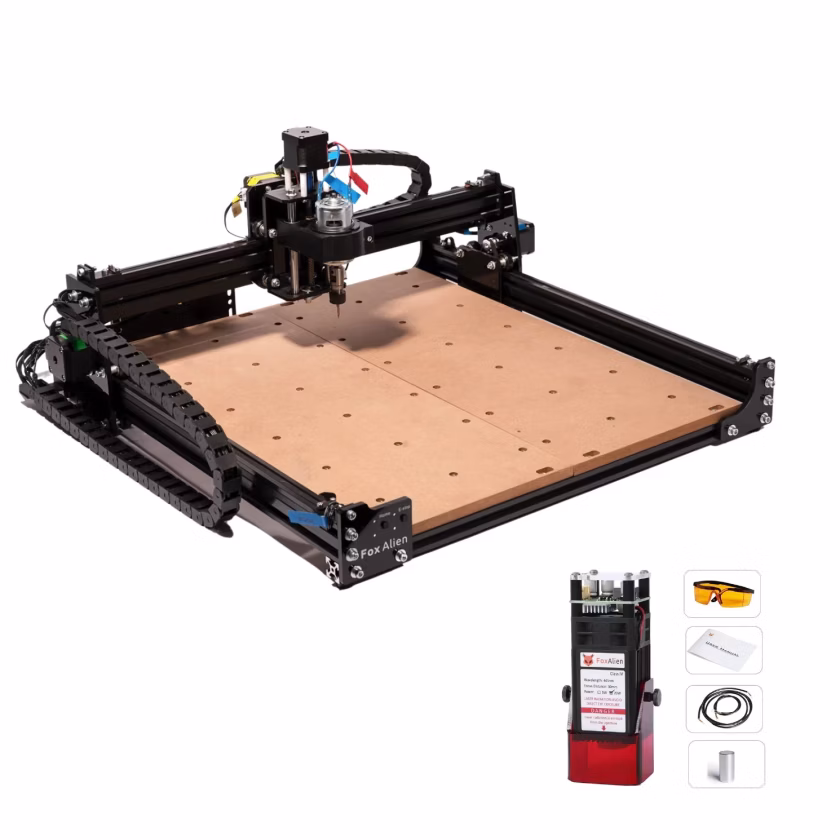

FoxAlien Masuter vs Two Trees TTC450 Pro
What Masuter does better (1) and where TTC450 Pro wins (5) — every spec side by side.
vs
4.2Work area7.0
8.6Features & ease of use5.2
Why is Masuter better than TTC450 Pro?
- Tool length / Z probeYes · TTC450 Pro: No
Why is TTC450 Pro better than Masuter?
- Work area (surface)1,600 cm² vs 2,116 cm²+32%
- Z travel55 mm vs 80 mm+45%
- Max spindle speed10,000 rpm vs 30,000 rpm3×
- Work area width (X)400 mm vs 460 mm+15%
- Work area depth (Y)400 mm vs 460 mm+15%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | — | Aluminium |
| Work area | ||
| Work area | 400 × 400 mm | 460 × 460 mm |
| Work area width (X) | 400 mm | 460 mm |
| Work area depth (Y) | 400 mm | 460 mm |
| Work area (surface) | 1,600 cm² | 2,116 cm² |
| Z travel | 55 mm | 80 mm |
| Speed & cutting | ||
| Max engraving / travel speed | — | 13 mm/s |
| Precision | ||
| Positioning accuracy | — | 0.05 mm |
| Closed-loop motors / servos | — | No |
| Linear rails | — | No |
| Ball screws | — | Yes |
| Safety | ||
| Enclosed (fully covered) | — | No |
| Emergency stop button | Yes | — |
| Features | ||
| Rotary attachment support | — | Yes |
| Touchscreen / control panel | — | Yes |
| Offline engraving (no computer) | Yes | — |
| Laser module option (CNC) | Yes | Yes |
| Automatic tool changer | — | No |
| Tool length / Z probe | Yes | No |
| Connectivity & software | ||
| Connections | USB | USB |
| USB | Yes | Yes |
| Compatible software | — | Easel, Fusion 360, Vectric VCarve |
| LightBurn compatible | — | Yes |
| Controller / firmware | — | GRBL |
| File formats | — | NC, G-code |
| CNC milling | ||
| Spindle power | — | 80 W |
| Max spindle speed | 10,000 rpm | 30,000 rpm |
| Size & power | ||
| Width | — | 742 mm |
| Depth | — | 689 mm |
| Height | — | 413 mm |
| Weight | — | 15.4 kg |
| Rated power consumption | — | 120 W |
