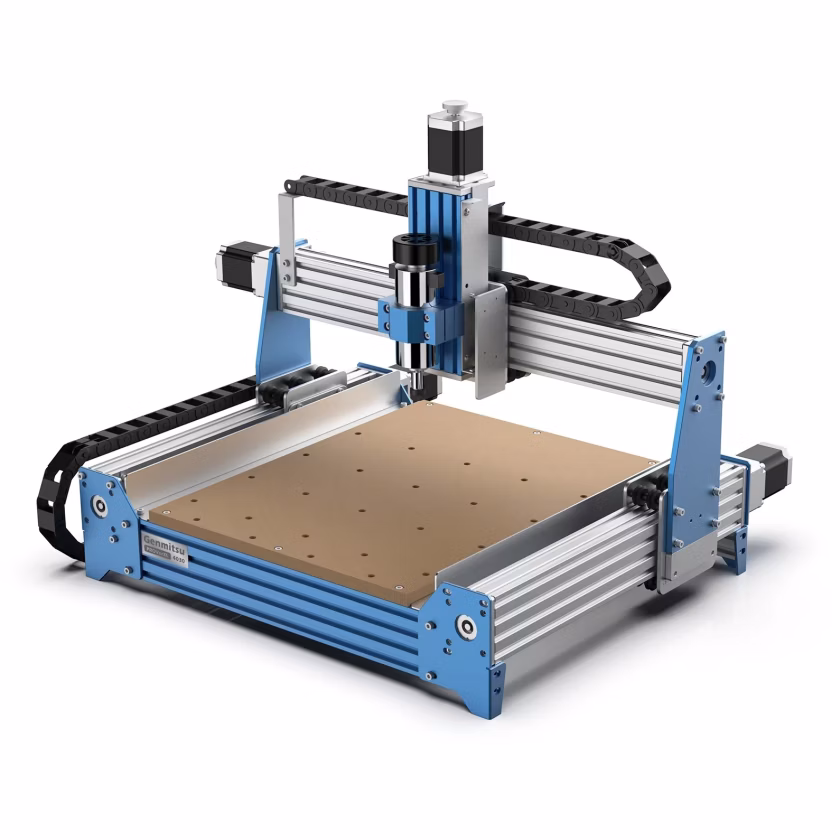

FoxAlien Masuter vs Genmitsu PROVerXL 4030
What Masuter does better (3) and where PROVerXL 4030 wins (2) — every spec side by side.
vs
4.2Work area6.7
8.6Features & ease of use5.9
Why is Masuter better than PROVerXL 4030?
- Work area (surface)1,600 cm² vs 1,200 cm²+33%
- Tool length / Z probeYes · PROVerXL 4030: No
- Work area depth (Y)400 mm vs 300 mm+33%
Why is PROVerXL 4030 better than Masuter?
- Z travel55 mm vs 120 mm2.2×
- Max spindle speed10,000 rpm vs 12,000 rpm+20%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Work area | ||
| Work area | 400 × 400 mm | 400 × 300 mm |
| Work area width (X) | 400 mm | 400 mm |
| Work area depth (Y) | 400 mm | 300 mm |
| Work area (surface) | 1,600 cm² | 1,200 cm² |
| Z travel | 55 mm | 120 mm |
| Speed & cutting | ||
| Max engraving / travel speed | — | 83 mm/s |
| Precision | ||
| Positioning accuracy | — | 0.05 mm |
| Closed-loop motors / servos | — | Yes |
| Linear rails | — | Yes |
| Ball screws | — | Yes |
| Safety | ||
| Enclosed (fully covered) | — | No |
| Emergency stop button | Yes | Yes |
| Features | ||
| Rotary attachment support | — | Yes |
| Offline engraving (no computer) | Yes | — |
| Laser module option (CNC) | Yes | Yes |
| Automatic tool changer | — | No |
| Tool length / Z probe | Yes | No |
| Connectivity & software | ||
| Connections | USB | Wi-Fi |
| Wi-Fi | — | Yes |
| USB | Yes | — |
| Phone app control | — | Yes |
| Compatible software | — | Easel, Candle, UGS |
| Controller / firmware | — | GRBL |
| CNC milling | ||
| Spindle power | — | 710 W |
| Max spindle speed | 10,000 rpm | 12,000 rpm |
| Size & power | ||
| Width | — | 693 mm |
| Depth | — | 658 mm |
| Height | — | 590 mm |
| Input voltage | — | 110–230 V |
