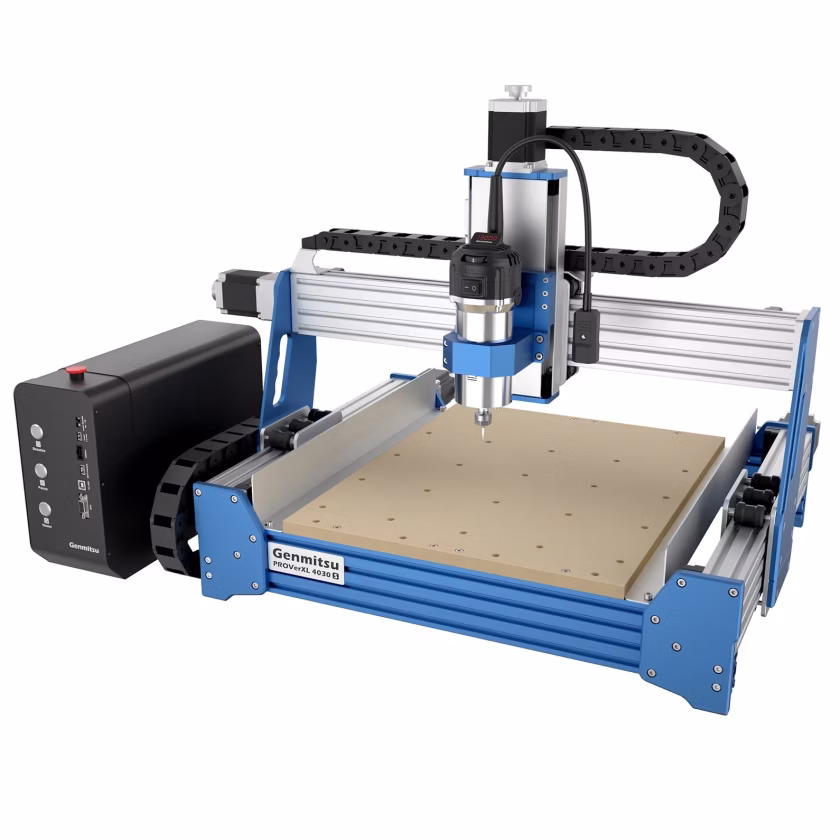

FoxAlien Masuter 3S vs Genmitsu PROVerXL 4030S
What Masuter 3S does better (3) and where PROVerXL 4030S wins (4) — every spec side by side.
vs
4.9Power & cutting8.4
9.6Speed7.0
5.8Precision7.5
5.7Work area6.7
3.1Safety6.5
4.7Features & ease of use8.0
Why is Masuter 3S better than PROVerXL 4030S?
- Max engraving / travel speed167 mm/s vs 83 mm/s2×
- Work area (surface)1,600 cm² vs 1,200 cm²+33%
- Work area depth (Y)400 mm vs 300 mm+33%
Why is PROVerXL 4030S better than Masuter 3S?
- Spindle power400 W vs 710 W+77%
- Z travel95 mm vs 120 mm+26%
- Ball screwsNo · Masuter 3S: Yes
- Tool length / Z probeNo · Masuter 3S: Yes
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Work area | ||
| Work area | 400 × 400 mm | 400 × 300 mm |
| Work area width (X) | 400 mm | 400 mm |
| Work area depth (Y) | 400 mm | 300 mm |
| Work area (surface) | 1,600 cm² | 1,200 cm² |
| Z travel | 95 mm | 120 mm |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | 167 mm/s | 83 mm/s |
| Precision | ||
| Positioning accuracy | — | 0.05 mm |
| Closed-loop motors / servos | Yes | Yes |
| Linear rails | Yes | Yes |
| Ball screws | No | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Emergency stop button | — | Yes |
| Features | ||
| Rotary attachment support | Yes | Yes |
| Offline engraving (no computer) | Yes | — |
| Laser module option (CNC) | Yes | Yes |
| Automatic tool changer | No | No |
| Tool length / Z probe | No | Yes |
| Connectivity & software | ||
| Connections | USB | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | Yes | Yes |
| Phone app control | — | Yes |
| Compatible software | — | Easel, Candle, UGS |
| Controller / firmware | — | GRBL |
| CNC milling | ||
| Spindle power | 400 W | 710 W |
| Max spindle speed | — | 30,000 rpm |
| Size & power | ||
| Width | — | 693 mm |
| Depth | — | 658 mm |
| Height | — | 590 mm |
| Input voltage | — | 110–230 V |
