- Masuter 3S vs TTC6050

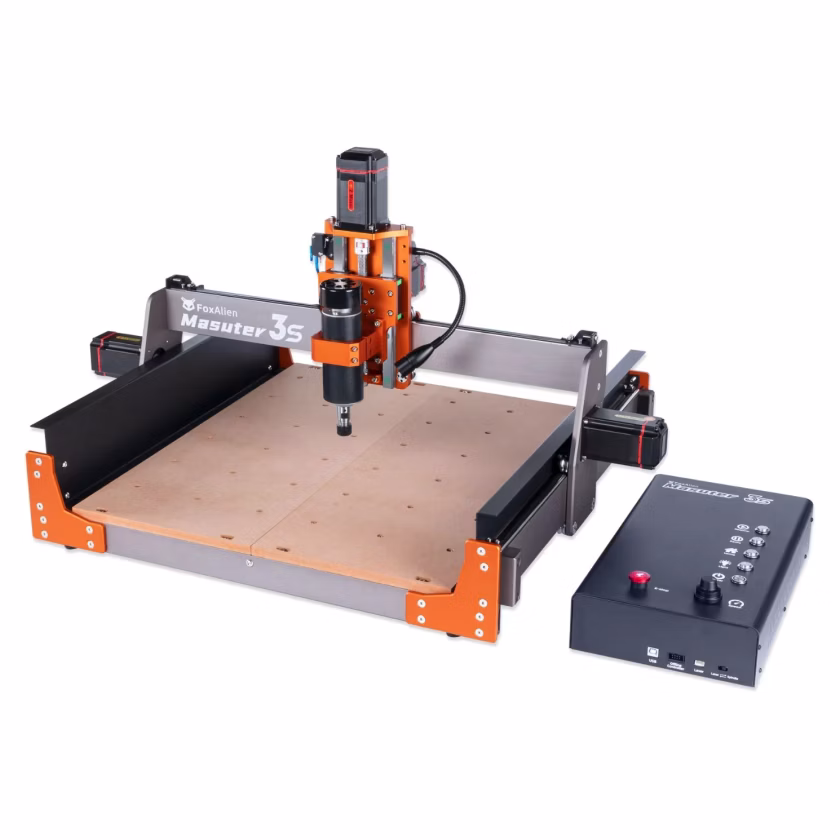

FoxAlien Masuter 3S vs Two Trees TTC6050
What Masuter 3S does better (2) and where TTC6050 wins (6) — every spec side by side.
vs
4.9Power & cutting5.9
9.6Speed7.0
5.8Precision5.8
5.7Work area7.8
3.1Safety6.5
4.7Features & ease of use5.2
Why is Masuter 3S better than TTC6050?
- Max engraving / travel speed167 mm/s vs 83 mm/s2×
- Closed-loop motors / servosYes · TTC6050: No
Why is TTC6050 better than Masuter 3S?
- Work area (surface)1,600 cm² vs 3,000 cm²+88%
- Spindle power400 W vs 500 W+25%
- Ball screwsNo · Masuter 3S: Yes
- Z travel95 mm vs 100 mm+5%
- Work area width (X)400 mm vs 600 mm+50%
- Work area depth (Y)400 mm vs 500 mm+25%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | — | Aluminium |
| Work area | ||
| Work area | 400 × 400 mm | 600 × 500 mm |
| Work area width (X) | 400 mm | 600 mm |
| Work area depth (Y) | 400 mm | 500 mm |
| Work area (surface) | 1,600 cm² | 3,000 cm² |
| Z travel | 95 mm | 100 mm |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | 167 mm/s | 83 mm/s |
| Precision | ||
| Closed-loop motors / servos | Yes | No |
| Linear rails | Yes | Yes |
| Ball screws | No | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Emergency stop button | — | Yes |
| Features | ||
| Rotary attachment support | Yes | Yes |
| Touchscreen / control panel | — | Yes |
| Offline engraving (no computer) | Yes | Yes |
| Laser module option (CNC) | Yes | Yes |
| Automatic tool changer | No | No |
| Tool length / Z probe | No | No |
| Connectivity & software | ||
| Connections | USB | USB |
| USB | Yes | Yes |
| Compatible software | — | Easel, Fusion 360, Vectric VCarve |
| Controller / firmware | — | GRBL |
| File formats | — | NC, G-code |
| CNC milling | ||
| Spindle power | 400 W | 500 W |
| Max spindle speed | — | 12,000 rpm |
| Size & power | ||
| Width | — | 811 mm |
| Depth | — | 769 mm |
| Height | — | 530 mm |
| Weight | — | 35.9 kg |
