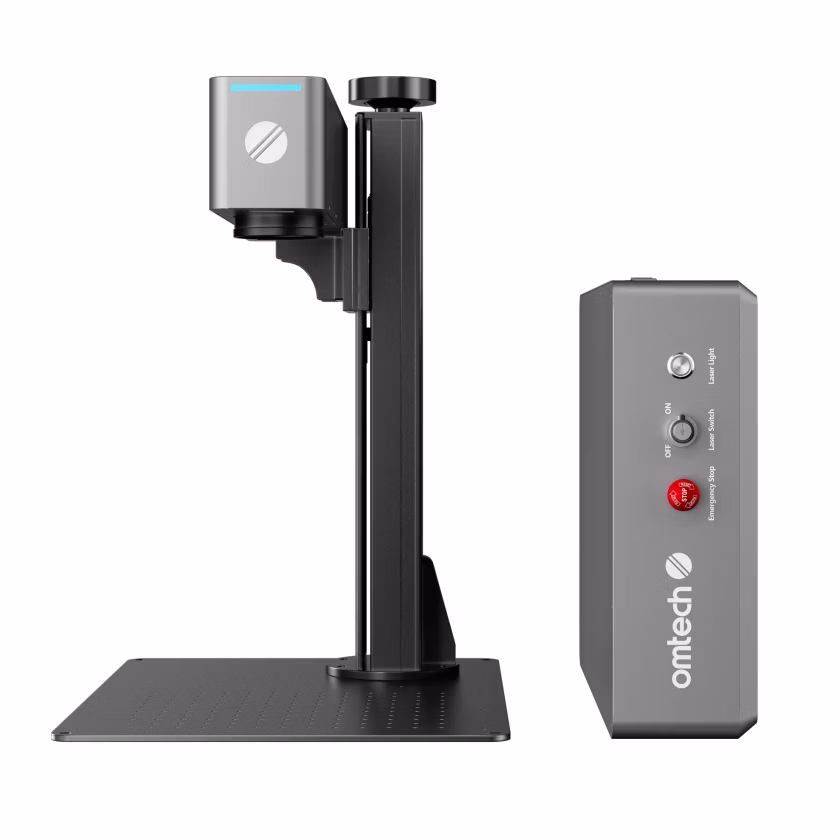

Cloudray MP 60W vs OMTech M2S MOPA 100W
What MP 60W does better (1) and where M2S MOPA 100W wins (5) — every spec side by side.
vs
7.2Power & cutting8.9
8.7Speed5.2
7.6Work area9.4
4.8Safety2.3
5.5Features & ease of use8.8
Why is MP 60W better than M2S MOPA 100W?
- Max engraving / travel speed15,000 mm/s vs 10,000 mm/s+50%
Why is M2S MOPA 100W better than MP 60W?
- Work area (surface)400 cm² vs 690 cm²+73%
- Laser output power60 W vs 100 W+67%
- Built-in cameraNo · MP 60W: Yes
- Work area depth (Y)200 mm vs 300 mm+50%
- Work area width (X)200 mm vs 230 mm+15%
Specifications
Side by side
| General | ||
| Laser sources | Fibre (1064 nm) | Fibre (1064 nm) |
| Motion system | Galvo (scanning mirrors) | Galvo (scanning mirrors) |
| Two laser sources | No | No |
| MOPA fibre source (adjustable pulse) | Yes | Yes |
| Wavelength | 1,064 nm | 1,064 nm |
| Laser power | ||
| Laser output power | 60 W | 100 W |
| Work area | ||
| Work area | 200 × 200 mm | 230 × 300 mm |
| Work area width (X) | 200 mm | 230 mm |
| Work area depth (Y) | 200 mm | 300 mm |
| Work area (surface) | 400 cm² | 690 cm² |
| Max workpiece height | — | 240 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 15,000 mm/s | 10,000 mm/s |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Laser safety class | — | Class 4 (open beam) |
| Features | ||
| Built-in camera | No | Yes |
| Autofocus / auto height | Yes | Yes |
| Rotary attachment support | Yes | Yes |
| Water cooling | Yes | — |
| Connectivity & software | ||
| Connections | USB | USB, Wi-Fi, Bluetooth |
| Wi-Fi | — | Yes |
| USB | Yes | Yes |
| Bluetooth | — | Yes |
| Compatible software | LightBurn | LightBurn |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | — | 430 mm |
| Depth | — | 550 mm |
| Height | — | 810 mm |
| Weight | — | 26.7 kg |
| Rated power consumption | 600 W | — |
