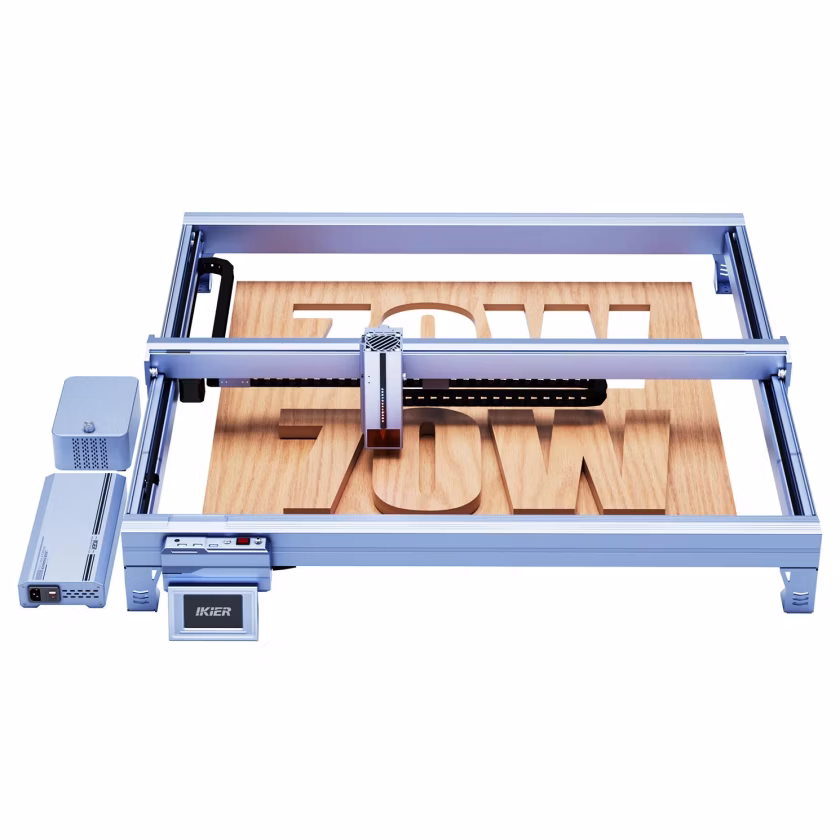

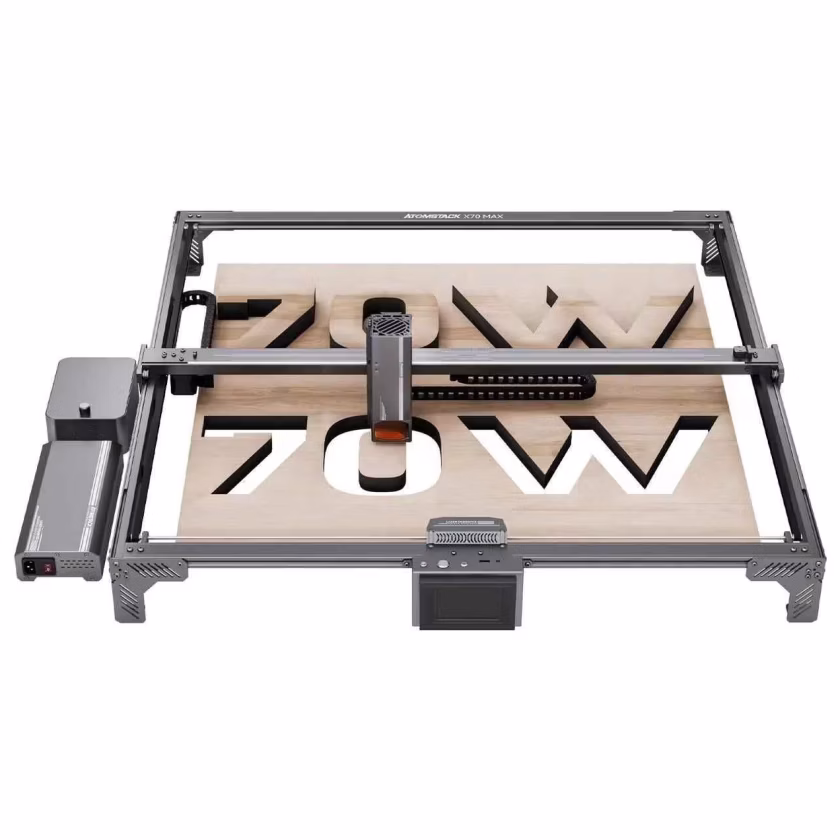

AtomStack X70 Max vs Ikier K70 Max
What X70 Max does better (2) and where K70 Max wins (2) — every spec side by side.
Why is X70 Max better than K70 Max?
- Laser spot size0.18 mm vs 0.2 mm+11%
- Work area depth (Y)850 mm vs 800 mm+6%
Why is K70 Max better than X70 Max?
- Max engraving / travel speed400 mm/s vs 600 mm/s+50%
- Work area width (X)800 mm vs 850 mm+6%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | — | 455 nm |
| Frame material | — | Steel |
| Laser power | ||
| Laser output power | 77 W | 77 W |
| Work area | ||
| Work area | 800 × 850 mm | 850 × 800 mm |
| Work area width (X) | 800 mm | 850 mm |
| Work area depth (Y) | 850 mm | 800 mm |
| Work area (surface) | 6,800 cm² | 6,800 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | 400 mm/s | 600 mm/s |
| Max cutting depth – acrylic | 25 mm | 25 mm |
| Precision | ||
| Laser spot size | 0.18 mm | 0.2 mm |
| Positioning accuracy | 0.01 mm | 0.01 mm |
| Linear rails | — | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | Yes | Yes |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | Yes | Yes |
| Rotary attachment support | — | Yes |
| Touchscreen / control panel | Yes | — |
| Offline engraving (no computer) | Yes | — |
| Connectivity & software | ||
| Connections | USB | USB, Wi-Fi |
| Wi-Fi | Yes | Yes |
| USB | Yes | Yes |
| SD / TF card | — | Yes |
| Compatible software | LightBurn, LaserGRBL, AtomStack Studio | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | — | PNG, JPG, BMP, GIF, DXF, SVG |
| Size & power | ||
| Width | 1,056 mm | — |
| Depth | 1,168 mm | — |
| Height | 230 mm | — |
| Rated power consumption | 360 W | 360 W |
| Input voltage | 100–240 V | 100–240 V |
