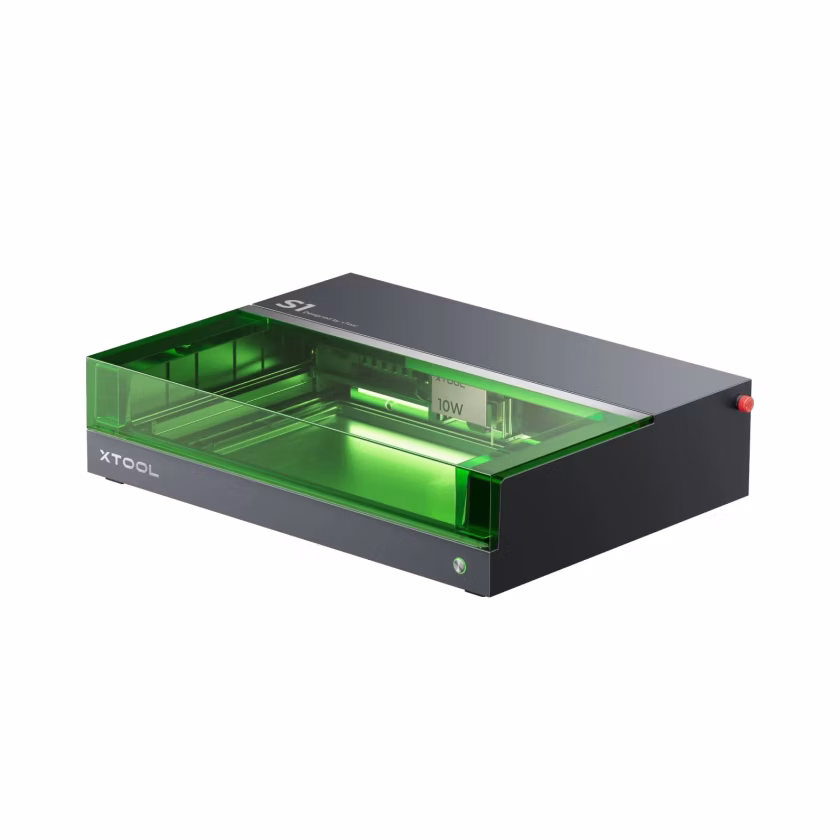

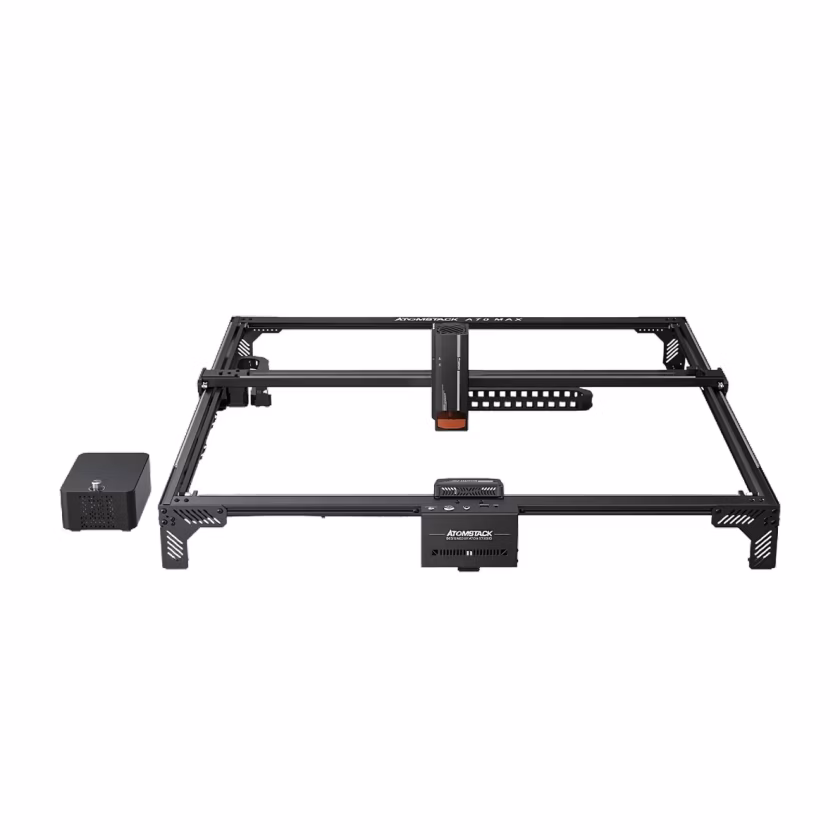

AtomStack A70 Max vs xTool S1 40W
What A70 Max does better (7) and where S1 40W wins (2) — every spec side by side.
Dimensions
Size comparison
A70 MaxS1 40W
| A70 Max | S1 40W | Difference | |
|---|---|---|---|
| Height | 230 mm | 183 mm | +47 mm |
| Width | 1,056 mm | 765 mm | +291 mm |
| Depth | 1,128 mm | 561 mm | +567 mm |
| Weight | 19 kg | 20 kg | −1 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is A70 Max better than S1 40W?
- Work area (surface)6,800 cm² vs 1,589 cm²4.3×
- Laser output power70 W vs 40 W+75%
- Air assistYes · S1 40W: No
- Autofocus / auto heightYes · S1 40W: No
- Work area depth (Y)800 mm vs 319 mm2.5×
- Work area width (X)850 mm vs 498 mm+71%
- Weight19 kg vs 20 kg+5%
Why is S1 40W better than A70 Max?
- Enclosed (fully covered)No · A70 Max: Yes
- Laser spot size0.18 mm vs 0.1 mm+80%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 455 nm | — |
| Laser power | ||
| Laser output power | 70 W | 40 W |
| Work area | ||
| Work area | 850 × 800 mm | 498 × 319 mm |
| Work area width (X) | 850 mm | 498 mm |
| Work area depth (Y) | 800 mm | 319 mm |
| Work area (surface) | 6,800 cm² | 1,589 cm² |
| Max workpiece height | — | 134 mm |
| Pass-through slot | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | — | 600 mm/s |
| Max cutting depth – wood / plywood (one pass) | 25 mm | — |
| Precision | ||
| Laser spot size | 0.18 mm | 0.1 mm |
| Positioning accuracy | 0.01 mm | 0.01 mm |
| Linear rails | Yes | — |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Laser safety class | — | Class 1 (eye-safe, enclosed) |
| Flame / fire detection | Yes | Yes |
| Emergency stop button | Yes | Yes |
| Tilt / movement sensor | Yes | — |
| Lid interlock | — | Yes |
| Features | ||
| Air assist | Yes | No |
| Built-in camera | No | No |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | Yes | Yes |
| Touchscreen / control panel | Yes | — |
| Offline engraving (no computer) | Yes | — |
| Connectivity & software | ||
| Connections | Wi-Fi | USB, Wi-Fi |
| Wi-Fi | Yes | Yes |
| USB | — | Yes |
| Compatible software | LightBurn, LaserGRBL, AtomStack Studio | LightBurn, xTool Creative Space |
| LightBurn compatible | Yes | Yes |
| File formats | — | SVG, DXF, JPG, PNG, BMP, TIF |
| Size & power | ||
| Width | 1,056 mm | 765 mm |
| Depth | 1,128 mm | 561 mm |
| Height | 230 mm | 183 mm |
| Weight | 19 kg | 20 kg |
| Input voltage | 100–240 V | — |
