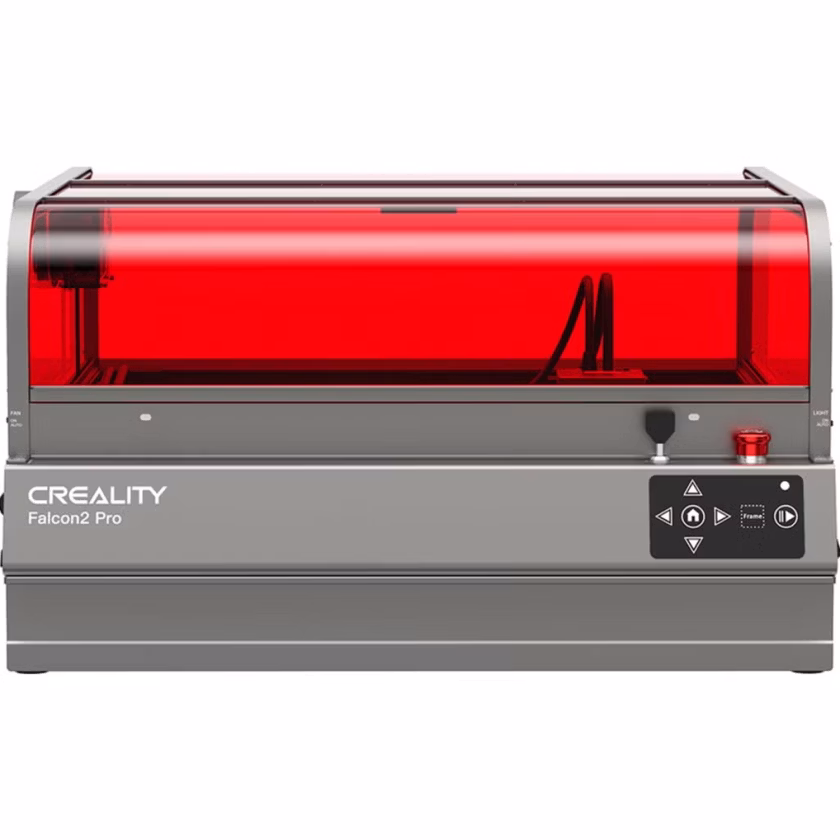

AtomStack A70 Max vs Creality Falcon2 Pro 60W
What A70 Max does better (4) and where Falcon2 Pro 60W wins (2) — every spec side by side.
vs
9.3Power & cutting9.6
9.7Work area8.3
7.1Safety9.8
Dimensions
Size comparison
A70 MaxFalcon2 Pro 60W
| A70 Max | Falcon2 Pro 60W | Difference | |
|---|---|---|---|
| Height | 230 mm | 328 mm | −98 mm |
| Width | 1,056 mm | 664 mm | +392 mm |
| Depth | 1,128 mm | 570 mm | +558 mm |
| Weight | 19 kg | 18 kg | +1 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is A70 Max better than Falcon2 Pro 60W?
- Work area (surface)6,800 cm² vs 1,660 cm²4.1×
- Laser output power70 W vs 60 W+17%
- Work area width (X)850 mm vs 400 mm2.1×
- Work area depth (Y)800 mm vs 415 mm+93%
Why is Falcon2 Pro 60W better than A70 Max?
- Enclosed (fully covered)No · A70 Max: Yes
- Weight19 kg vs 18 kg+6%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | — |
| Wavelength | 455 nm | 455 nm |
| Laser power | ||
| Laser output power | 70 W | 60 W |
| Work area | ||
| Work area | 850 × 800 mm | 400 × 415 mm |
| Work area width (X) | 850 mm | 400 mm |
| Work area depth (Y) | 800 mm | 415 mm |
| Work area (surface) | 6,800 cm² | 1,660 cm² |
| Speed & cutting | ||
| Max cutting depth – wood / plywood (one pass) | 25 mm | — |
| Precision | ||
| Laser spot size | 0.18 mm | — |
| Positioning accuracy | 0.01 mm | — |
| Linear rails | Yes | — |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Laser safety class | — | Class 1 (eye-safe, enclosed) |
| Flame / fire detection | Yes | Yes |
| Emergency stop button | Yes | — |
| Tilt / movement sensor | Yes | — |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | No | — |
| Autofocus / auto height | Yes | — |
| Rotary attachment support | Yes | — |
| Touchscreen / control panel | Yes | — |
| Offline engraving (no computer) | Yes | — |
| Connectivity & software | ||
| Connections | Wi-Fi | — |
| Wi-Fi | Yes | — |
| Compatible software | LightBurn, LaserGRBL, AtomStack Studio | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | 1,056 mm | 664 mm |
| Depth | 1,128 mm | 570 mm |
| Height | 230 mm | 328 mm |
| Weight | 19 kg | 18 kg |
| Input voltage | 100–240 V | 100–240 V |
