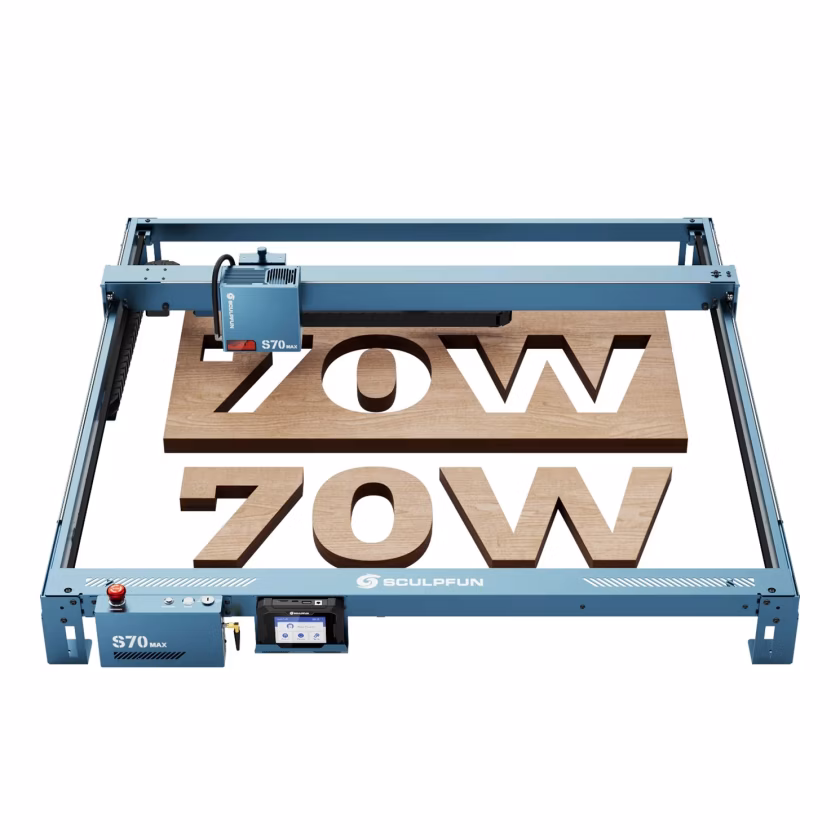

AtomStack A70 Max vs Sculpfun S70 Max 70W
What A70 Max does better (3) and where S70 Max 70W wins (1) — every spec side by side.
vs
9.3Power & cutting9.2
4.1Precision3.4
9.7Work area9.6
7.1Safety7.2
7.9Features & ease of use7.7
Why is A70 Max better than S70 Max 70W?
- Max cutting depth – wood / plywood (one pass)25 mm vs 20 mm+25%
- Work area (surface)6,800 cm² vs 6,640 cm²+2%
- Work area width (X)850 mm vs 830 mm+2%
Why is S70 Max 70W better than A70 Max?
- Laser spot size0.18 mm vs 0.15 mm+20%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 455 nm | — |
| Laser power | ||
| Laser output power | 70 W | 70 W |
| Work area | ||
| Work area | 850 × 800 mm | 830 × 800 mm |
| Work area width (X) | 850 mm | 830 mm |
| Work area depth (Y) | 800 mm | 800 mm |
| Work area (surface) | 6,800 cm² | 6,640 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | — | 600 mm/s |
| Max cutting depth – wood / plywood (one pass) | 25 mm | 20 mm |
| Precision | ||
| Laser spot size | 0.18 mm | 0.15 mm |
| Positioning accuracy | 0.01 mm | — |
| Linear rails | Yes | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | Yes | Yes |
| Emergency stop button | Yes | Yes |
| Tilt / movement sensor | Yes | Yes |
| Built-in fume filter / purifier | — | Yes |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | Yes | Yes |
| Rotary attachment support | Yes | — |
| Touchscreen / control panel | Yes | Yes |
| Offline engraving (no computer) | Yes | Yes |
| Connectivity & software | ||
| Connections | Wi-Fi | Wi-Fi |
| Wi-Fi | Yes | Yes |
| Phone app control | — | Yes |
| Compatible software | LightBurn, LaserGRBL, AtomStack Studio | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | 1,056 mm | — |
| Depth | 1,128 mm | — |
| Height | 230 mm | — |
| Weight | 19 kg | — |
| Input voltage | 100–240 V | — |
