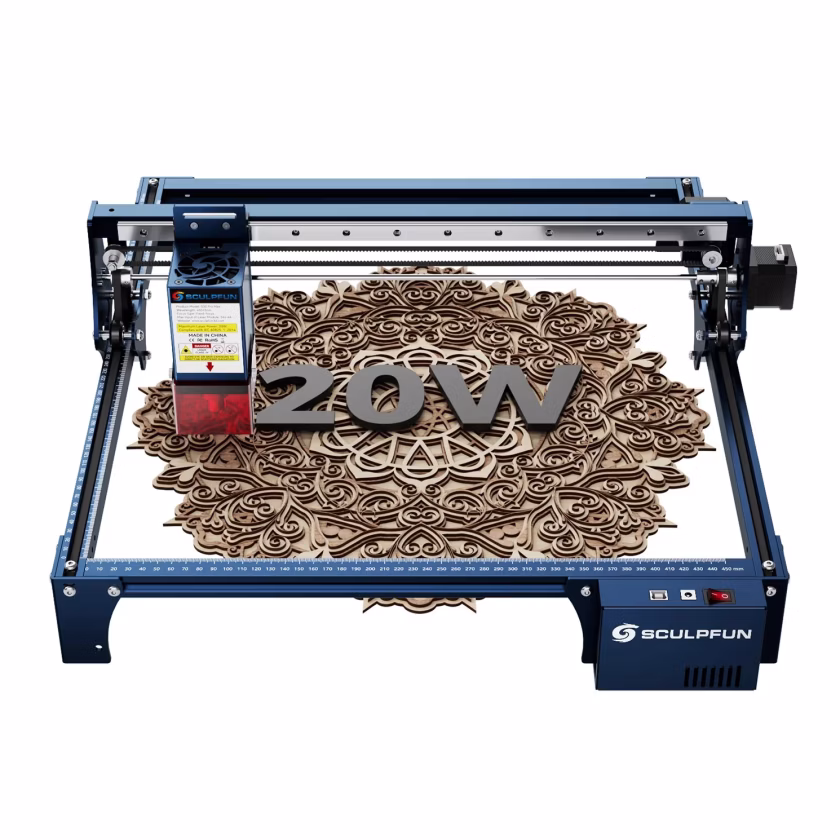

AtomStack A24 Pro vs Sculpfun S30 Pro Max 20W
What A24 Pro does better (2) and where S30 Pro Max 20W wins (4) — every spec side by side.
vs
8.1Power & cutting7.7
5.7Work area6.1
7.7Safety3.2
3.1Features & ease of use6.6
Why is A24 Pro better than S30 Pro Max 20W?
- Enclosed (fully covered)Yes · S30 Pro Max 20W: No
- Laser output power24 W vs 20 W+20%
Why is S30 Pro Max 20W better than A24 Pro?
- Work area (surface)1,008 cm² vs 1,332 cm²+32%
- Air assistNo · A24 Pro: Yes
- Work area depth (Y)280 mm vs 360 mm+29%
- Work area width (X)360 mm vs 370 mm+3%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | — | 455 nm |
| Laser power | ||
| Laser output power | 24 W | 20 W |
| Work area | ||
| Work area | 360 × 280 mm | 370 × 360 mm |
| Work area width (X) | 360 mm | 370 mm |
| Work area depth (Y) | 280 mm | 360 mm |
| Work area (surface) | 1,008 cm² | 1,332 cm² |
| Conveyor / roll feeder support | Yes | — |
| Speed & cutting | ||
| Max cutting depth – wood / plywood (one pass) | 17 mm | — |
| Max cutting depth – acrylic | 15 mm | — |
| Precision | ||
| Laser spot size | — | 0.1 mm |
| Positioning accuracy | — | 0.005 mm |
| Safety | ||
| Enclosed (fully covered) | Yes | No |
| Laser safety class | Class 1 (eye-safe, enclosed) | — |
| Flame / fire detection | No | No |
| Tilt / movement sensor | Yes | — |
| Features | ||
| Air assist | No | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | Yes |
| Offline engraving (no computer) | — | Yes |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi, Bluetooth, SD / USB drive |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| Bluetooth | — | Yes |
| SD / TF card | — | Yes |
| Compatible software | — | LightBurn, LaserGRBL |
| LightBurn compatible | — | Yes |
| Size & power | ||
| Weight | 16 kg | — |
| Rated power consumption | — | 120 W |
