WainluxDiode laser engraver

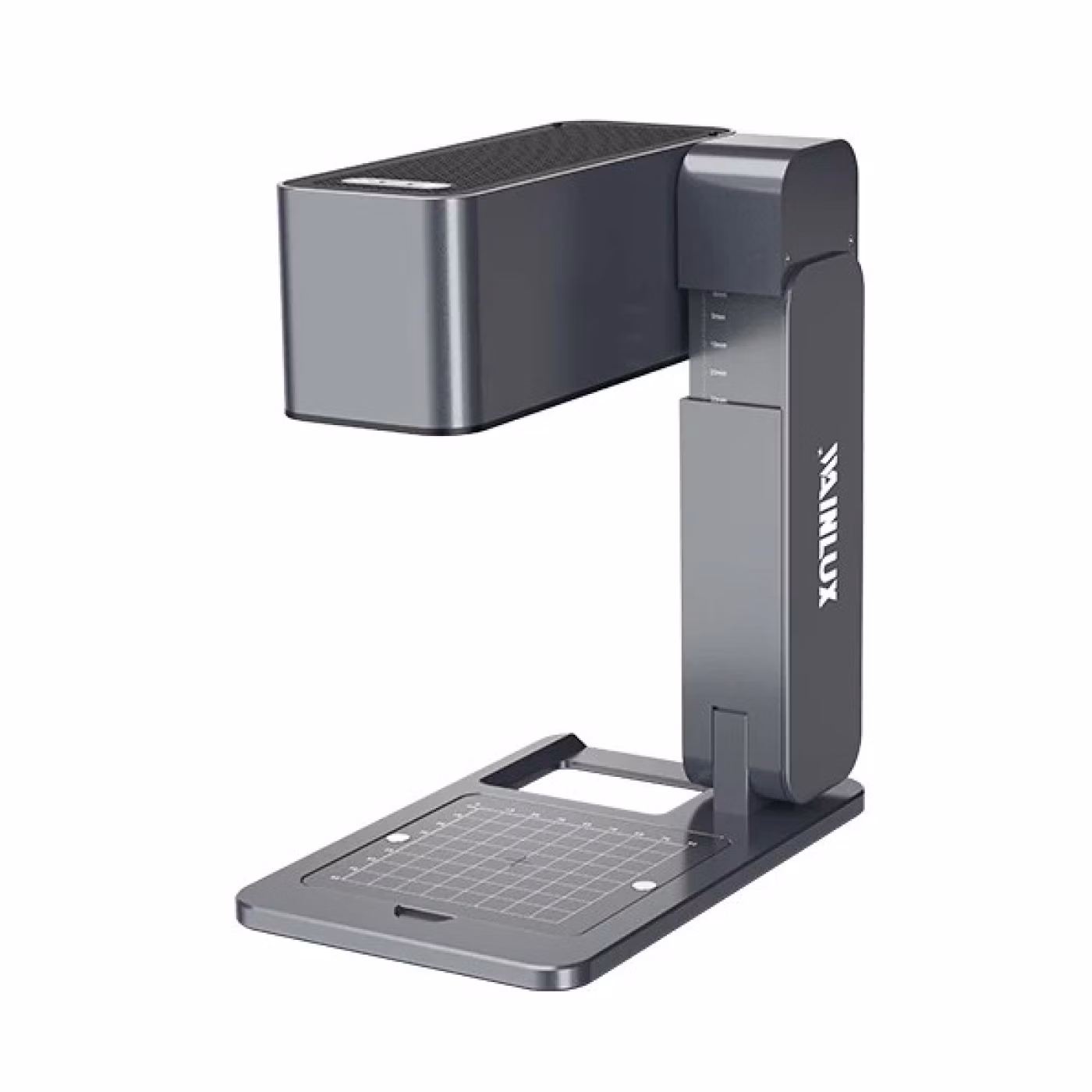

Wainlux Z3
Wainlux Z3 is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 4.5 W, work area 80 × 80 mm, max engraving / travel speed 600 mm/s.
4.0Score
Power & cutting2.9
Speed8.0
Precision3.6
Work area2.1
Safety3.2
Features & ease of use3.1
price rangeUS$640–800
- Year
- 2023
- Brand
Wainlux- Popularity
- #62 of 406
Blue diode (≈455 nm)Laser sources
4.5 WLaser output power
80 × 80 mmWork area
600 mm/sMax engraving / travel speed
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2023
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
compared with other diode laser engravers
Why is Z3 a good choice?
Max engraving / travel speed: 600 mm/sbetter than 76% of diode laser engravers
Weight: 2.4 kgbetter than 84% of diode laser engravers
Weak points
Laser output power: 4.5 Wworse than 88% of diode laser engravers
Work area (surface): 64 cm²worse than 100% of diode laser engravers
In rankings
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 455 nm
Laser power
- Laser output power
- 4.5 W
Work area
- Work area
- 80 × 80 mm
- Work area width (X)
- 80 mm
- Work area depth (Y)
- 80 mm
- Work area (surface)
- 64 cm²
- Work-area extension kit
- Yes
Speed & cutting
- Max engraving / travel speed
- 600 mm/s
Precision
- Positioning accuracy
- 0.05 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- No
Features
- Air assist
- No
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
Connectivity & software
- Connections
- SD / USB drive
- SD / TF card
- Yes
Size & power
- Width
- 220 mm
- Depth
- 130 mm
- Height
- 220 mm
- Weight
- 2.4 kg
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
