Two TreesDiode laser engraver
Two Trees TTS-20 Pro 20W

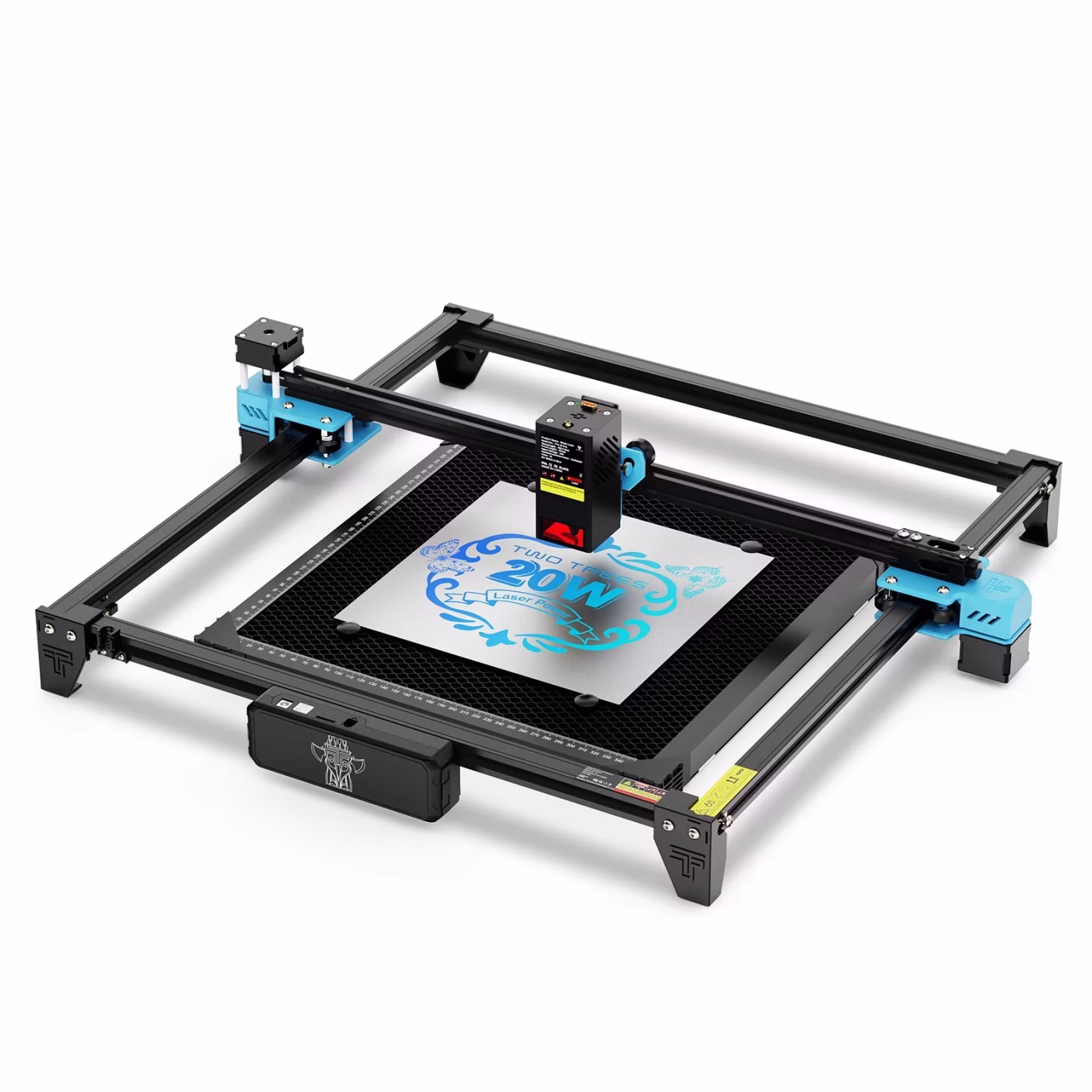

Two Trees TTS-20 Pro 20W is a diode laser engraver released in 2022. Key specs: laser sources Blue diode (≈455 nm), laser output power 20 W, work area 418 × 418 mm, max engraving / travel speed 500 mm/s.
7.5Score
Power & cutting7.7
Speed6.9
Precision3.6
Work area8.8
Safety3.2
Features & ease of use4.8
price rangeUS$350–440
- Year
- 2022
- Brand
Two Trees- Popularity
- #132 of 406
Blue diode (≈455 nm)Laser sources
20 WLaser output power
418 × 418 mmWork area
500 mm/sMax engraving / travel speed
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers
Compared with every model of this kind in the catalog.
compared with other diode laser engravers
Why is TTS-20 Pro 20W a good choice?
Work area (surface): 1,747 cm²better than 87% of diode laser engravers
Laser output power: 20 Wbetter than 70% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 450 nm
Laser power
- Laser output power
- 20 W
Work area
- Work area
- 418 × 418 mm
- Work area width (X)
- 418 mm
- Work area depth (Y)
- 418 mm
- Work area (surface)
- 1,747 cm²
- Work-area extension kit
- Yes
Speed & cutting
- Max engraving / travel speed
- 500 mm/s
Precision
- Positioning accuracy
- 0.05 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- No
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
Connectivity & software
- Connections
- USB, SD / USB drive
- Wi-Fi
- No
- USB
- Yes
- SD / TF card
- Yes
- Phone app control
- Yes
- LightBurn compatible
- Yes
- File formats
- NC, BMP, JPG, PNG, G-code
Size & power
- Width
- 695 mm
- Depth
- 595 mm
- Height
- 125 mm
- Weight
- 3.2 kg
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
